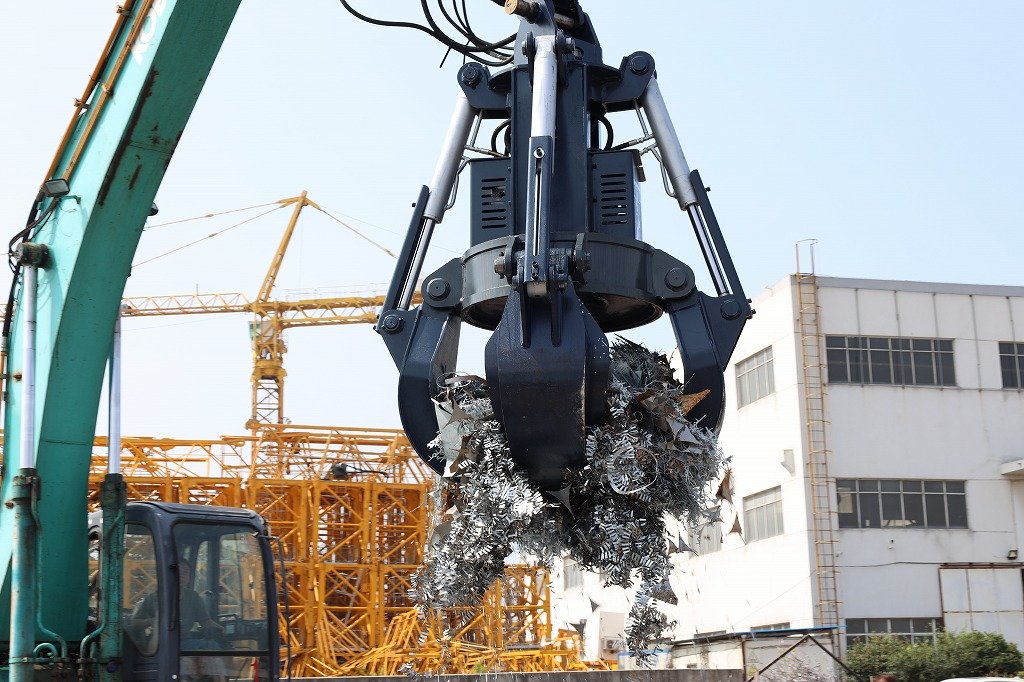

What Is an Orange Peel Grapple?
An orange peel grapple is an excavator attachment used for material handling in construction, recycling, and scrap industries. Also known as a magnetic grapple or orange peel magnet grapple, it gets its name from the claw arms that open like the petals of an orange peel.
This attachment combines mechanical gripping and magnetic lifting functions. Through hydraulic power and magnetic force, it can grab, lift, transport, and load various materials efficiently. The orange peel grapple acts as the connection between construction machinery and handled materials, widely replacing manual labor in many industrial operations.
Compared with traditional grapples, a magnetic grapple adds an electromagnetic lifting module. This design keeps the strong mechanical gripping capability while allowing the magnet to attract loose metal materials. As a result, a single excavator equipped with an orange peel magnet grapple can perform both gripping and magnetic lifting tasks in different material handling scenarios.
Structure of an Orange Peel Grapple
The structure of an excavator orange peel grapple focuses on two key functions: stable gripping and reliable magnetic lifting. It mainly consists of five major components working together.
1. Connection and Drive System
Connection mechanism
The upper part of the grapple includes a rotating plate and mounting bracket that connects to the excavator using a quick coupler. Some models include a rotary joint to connect hydraulic and electrical systems.
Hydraulic drive system
This system includes a hydraulic motor and hydraulic hoses. The motor drives a generator that supplies electricity to the magnet system.
Flow distributor
The flow distributor evenly distributes hydraulic power to each cylinder, ensuring smooth operation. The rotary oil distributor allows hydraulic oil to flow smoothly during rotation and prevents hose twisting.
2. Grapple Arm System
Grapple claws
Orange peel grapples usually use four or five claws arranged around the magnet plate. The claw tips help increase contact with materials and improve gripping force.
The claws are typically made from NM500 or Hardox steel, providing excellent durability and strength.
Hydraulic cylinders
Hydraulic cylinders control the opening and closing of the claws. The cylinders use honed tubes and high-quality seals, ensuring reliable operation and long service life.
Protective covers are often installed outside the cylinders to reduce dust and debris intrusion.
3. Magnetic System

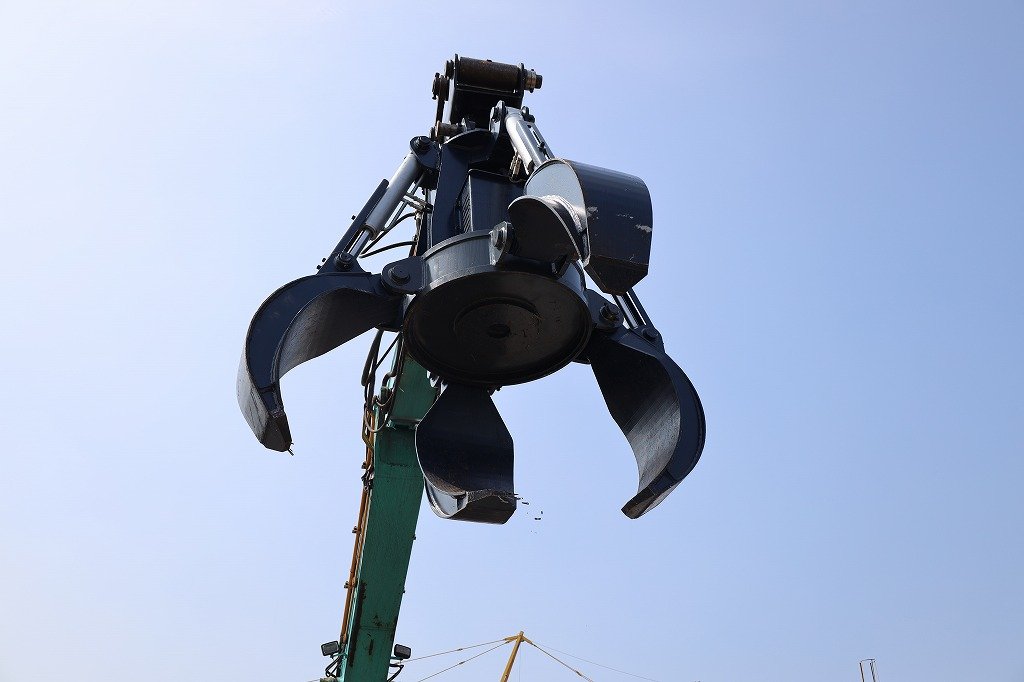

Electromagnetic plate
The magnet plate is usually installed under the grapple claws. It generates magnetic force through a rectifier system, allowing the magnetic grapple to attract ferrous materials.
It helps collect loose scrap metal or stabilize large metal objects during lifting and transport.
Control box
The control box contains a generator and rectifier, converting hydraulic energy into electrical power for the magnet. This allows the orange peel magnet grapple to operate without external power sources.
4. Support and Protection Structure
Support plate and support arms
The support structure provides stability and structural strength. The control box is usually installed between support arms to optimize space usage.
Dust protection and seals
Dust rings and sealing components prevent dust, moisture, and debris from entering the internal system, ensuring reliable operation in harsh working environments.
5. Hinge and Limiting Components
Hinge joints
Pins connect the hydraulic cylinders and grapple claws, allowing smooth and flexible movement.
Limit guiding system
Limit seats and guide plates control the movement range of the piston rod, preventing excessive opening or closing of the claws.
Applications of Orange Peel Grapple
An orange peel grapple is widely used in industries that require material grabbing, loading, and transportation.

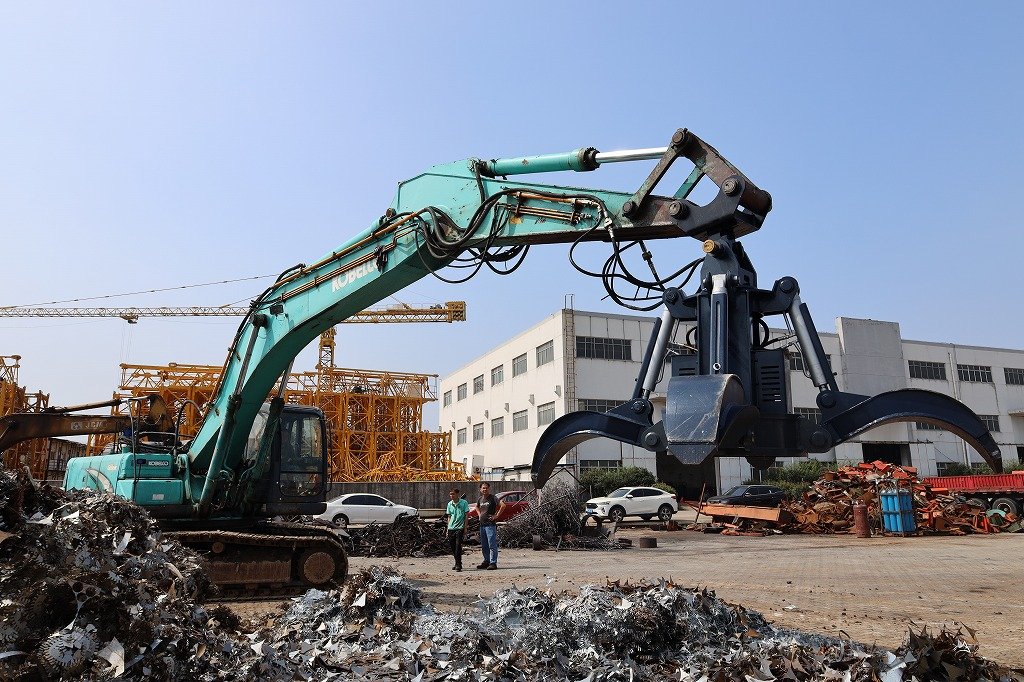

Scrap Metal Recycling

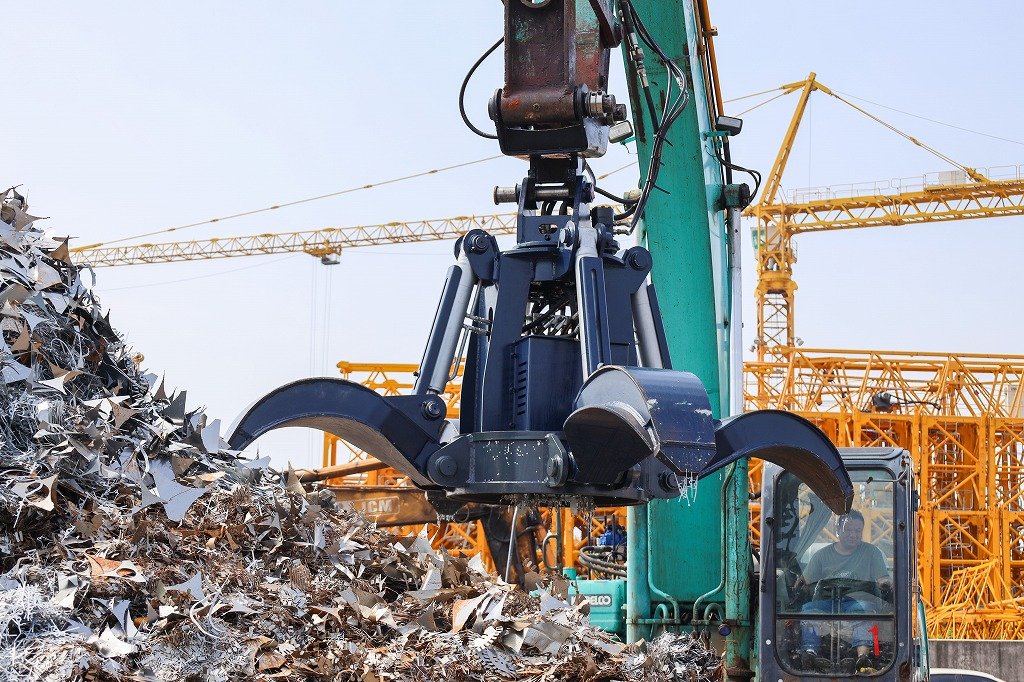

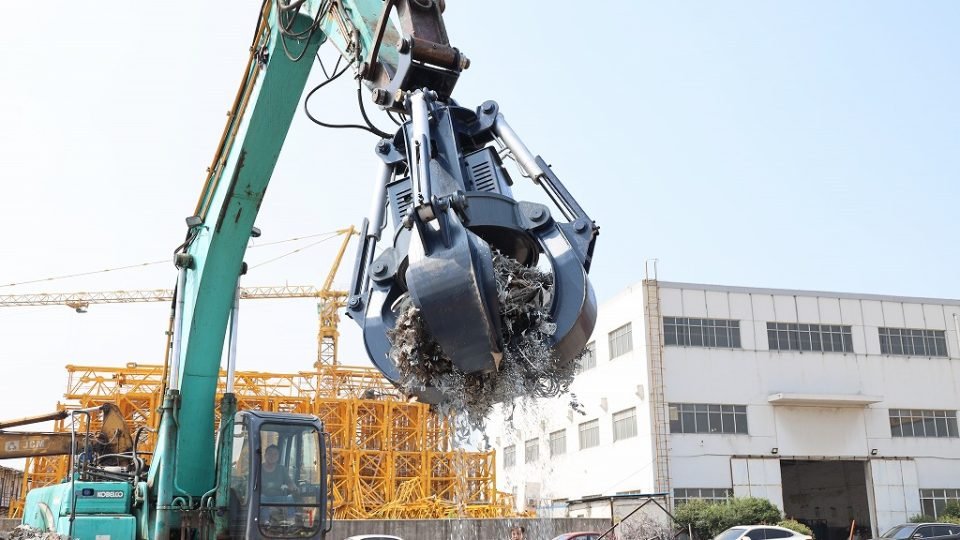

This is the most common application. An orange peel magnet grapple can handle scrap steel, iron, and dismantled vehicle parts.

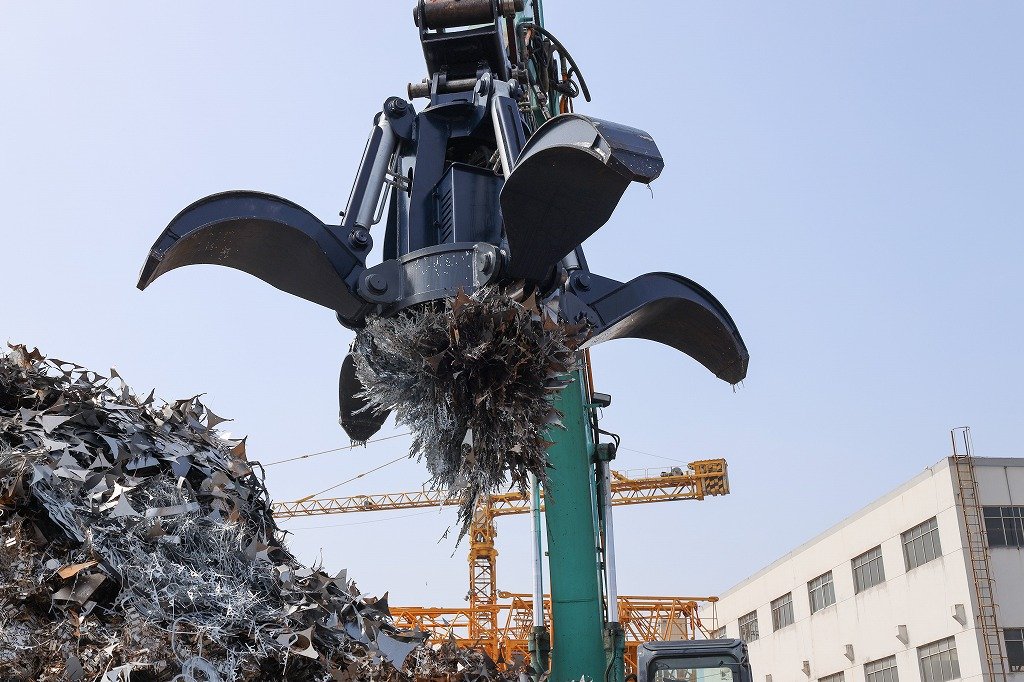

Large metal pieces are clamped by the claws, while smaller materials such as screws or wires are collected by the magnet.
It is widely used in:
- scrap yards
- metal recycling plants
- automobile dismantling facilities
Mining and Construction Materials
In mining operations, the grapple can handle stones, ores, and aggregates. In building materials industries, it is used for loading stone blocks and raw materials.
Heavy-duty excavator orange peel grapples can handle concrete blocks and hard rocks in demanding environments.
Construction and Demolition
At demolition sites, an orange peel grapple helps handle concrete debris, steel bars, and construction waste.
It is also used to move building materials and clean construction sites efficiently.
Ports and Logistics
In port operations, grapples are used for handling bulk materials such as coal, ore, and scrap metal.
The combination of gripping claws and magnetic lifting improves loading efficiency and ensures stable transport.
Waste Management
In waste treatment facilities, an orange peel magnet grapple can handle mixed waste and separate ferrous metals using magnetic force.
This improves recycling efficiency and resource recovery.
Steel Plants
Steel plants use magnetic grapples to transport scrap metal and raw materials to furnaces or remove slag and metal debris.
These attachments are designed to operate reliably in dusty and high-temperature environments.
Types of Orange Peel Grapple
Different types of orange peel grapples are available depending on working conditions.
By Number of Claws
Four-claw grapples are suitable for medium-size materials.
Five-claw grapples provide a larger contact area for bulky or irregular materials.
By Rotation Function
Fixed grapples have a simple structure and lower maintenance costs.
Rotating grapples allow 360° rotation, making them suitable for complex material handling tasks.
By Excavator Size
Light-duty grapples fit small excavators below 6 tons.
Heavy-duty grapples are designed for excavators above 12 tons used in mining, steel plants, and large recycling operations.
