Press-In Piling Machine

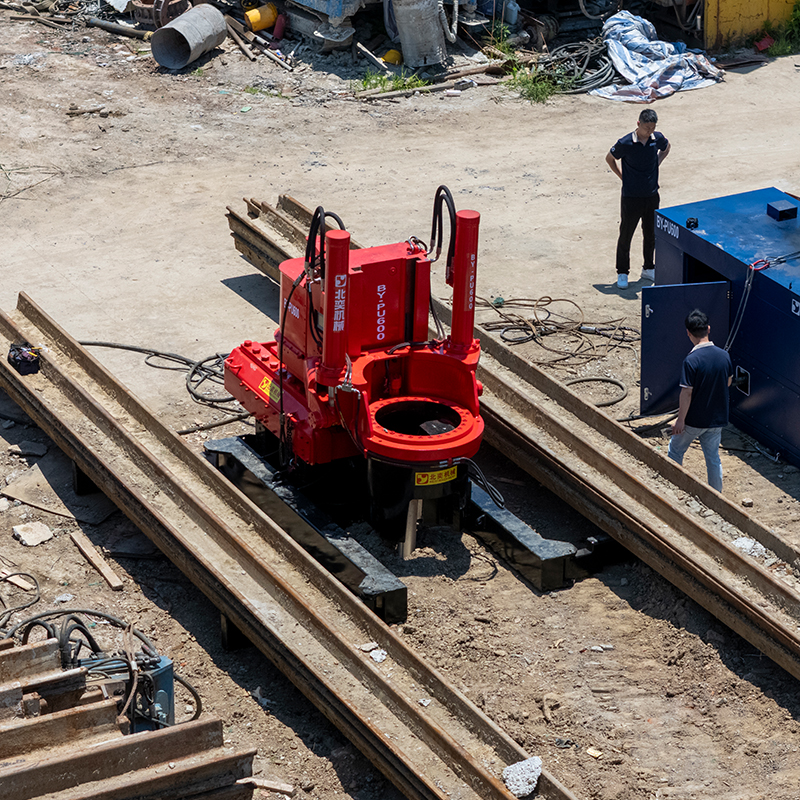

The BY-ZZ600S Static Press-in Pile Driver is a new-generation piling solution developed based on a fully modular design concept. Standardized structural components improve system compatibility while enhancing overall versatility and operational efficiency.
An optimized hydraulic power and control system ensures stable performance and reliable operation under demanding jobsite conditions.
The machine is designed for the installation of U-shaped steel sheet piles with widths ranging from 400–600 mm. It enables smooth and efficient press-in operations, even in relatively hard ground conditions.
The BY-ZZ600S supports both standard-type (400 mm) and economic-type (600 mm) sheet piles, providing flexibility for different project requirements.
By combining strong hydraulic pressing force with precise control, the system delivers high construction accuracy, reduced environmental impact, and improved operational safety.
Its compact and modular structure facilitates transportation, assembly, and on-site operation, maximizing productivity across various foundation projects.
Download File
Product Description

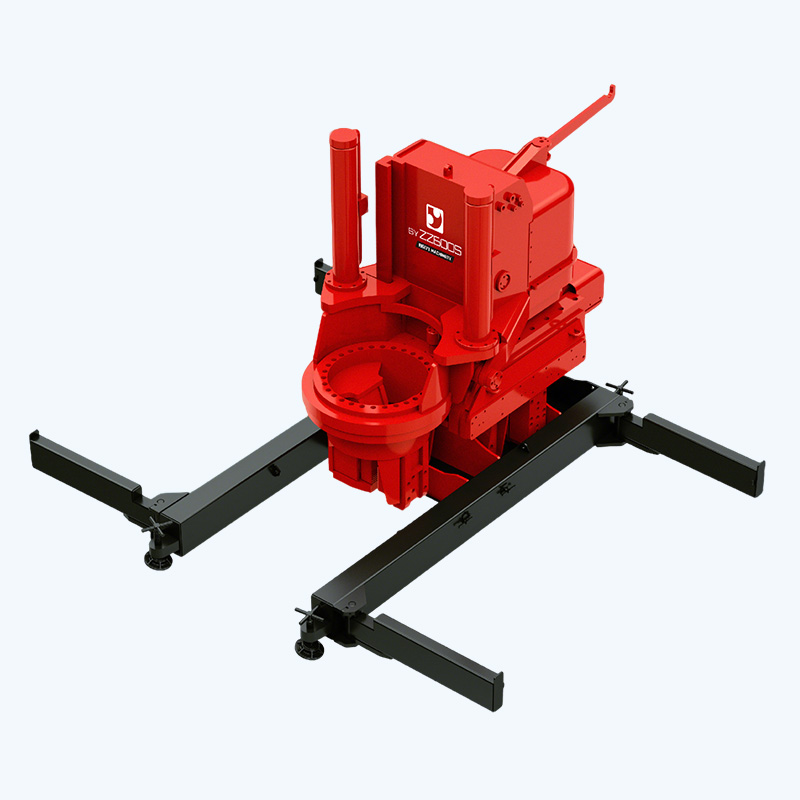

Press-In Piling Machine
The new-generation BY-ZZ600S Press-In Piling Machine features an advanced modular design concept, with standardized structural components.
Through comprehensive evaluation and optimization of each component, the machine achieves a rationalized design in terms of structure, geometry, and material selection.
While improving the interchangeability of major structural components, the newly integrated next-generation control system significantly enhances overall performance, operational stability, and service life of key components.
Working Principle

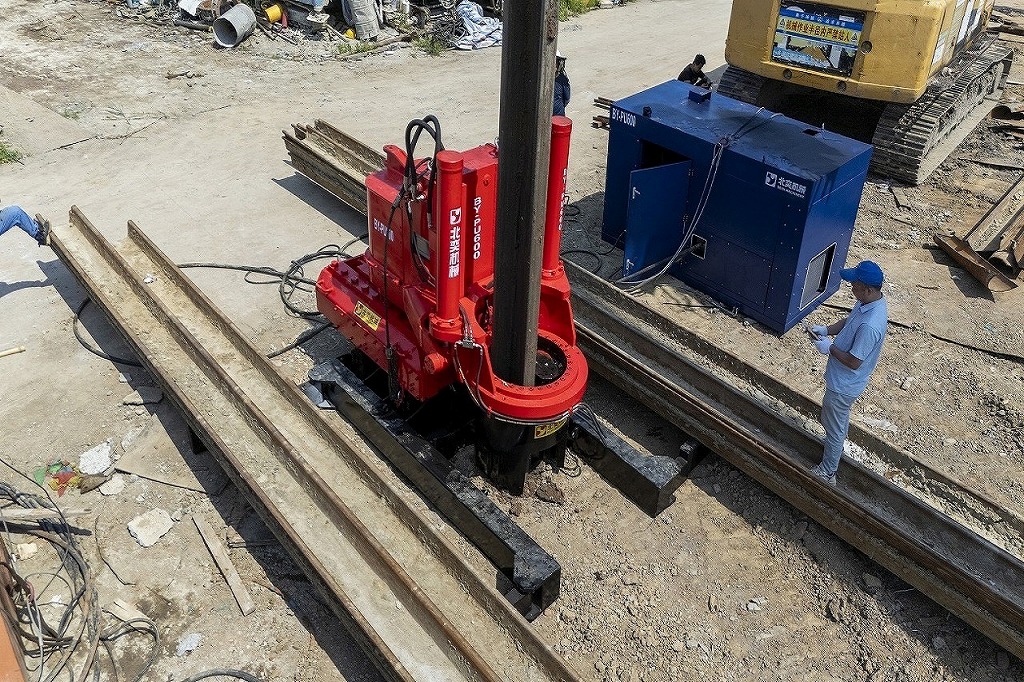

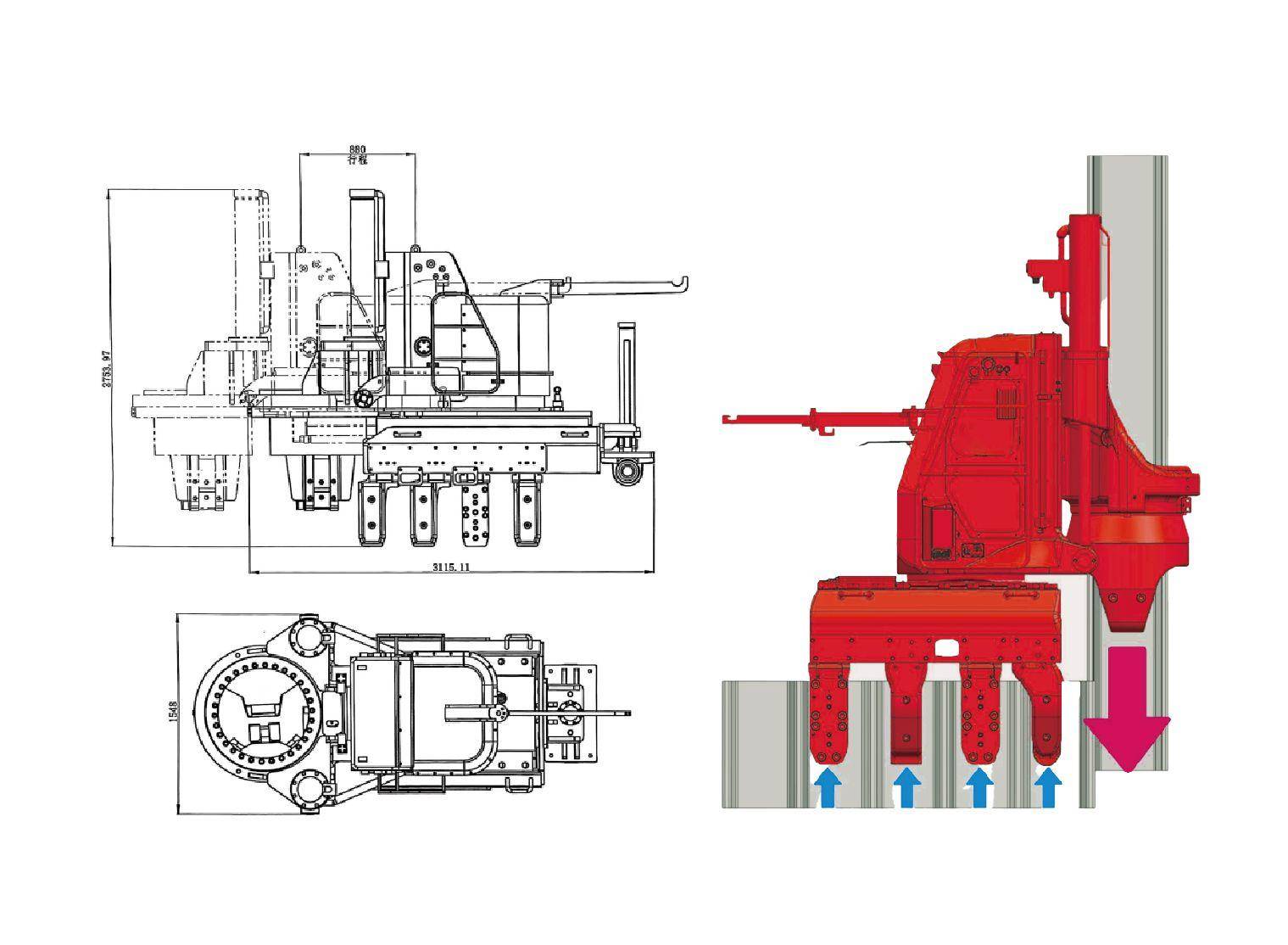

The BY-ZZ600S press-in piling machine operates based on the reaction force press-in principle. Using previously installed piles or counterweights as the reaction force, U-type sheet piles are pressed smoothly and continuously into the ground, enabling silent, vibration-free piling operations.
Features
- Static press-in piling method with low noise and minimal vibration
- Hydraulic system provides stable and controllable pressing force
- No slurry discharge or impact pollution, suitable for environmentally sensitive areas
- Precise control of pile alignment, pressure, and penetration depth
- Improved bearing capacity through soil compaction during pressing
- Compact and lightweight structure for efficient installation
- Enhanced construction safety without impact driving operations

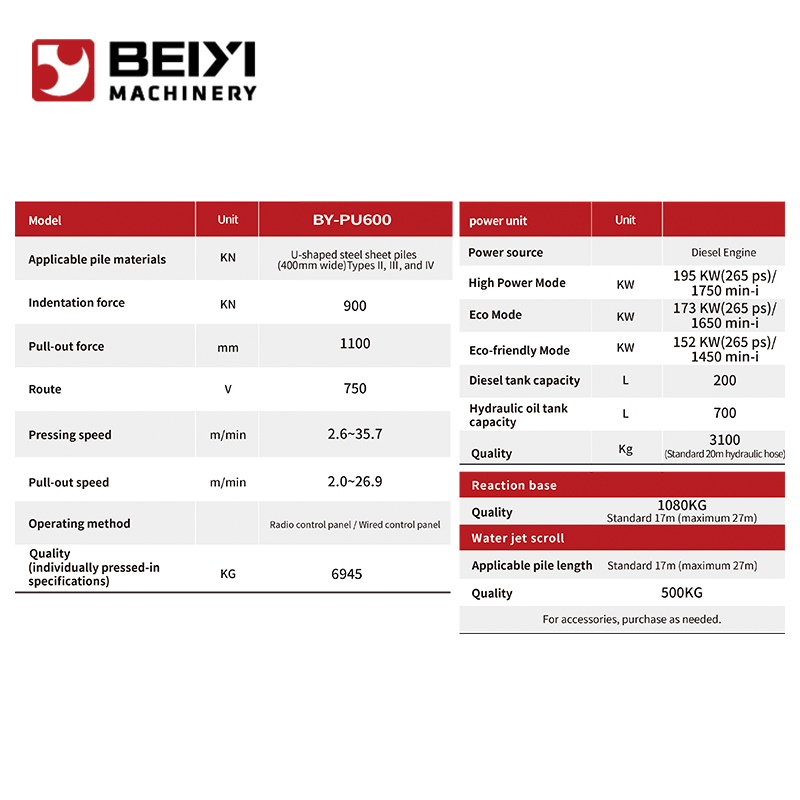

Static Press-in Pile Driver — BY-ZZ600S
Main Unit
| Item | Specification |
| Suitable Pile Type | U-shaped Steel Sheet Piles (400 mm), Type II / III / IV |
| Pressing Force | 900 kN |
| Extraction Force | 1100 kN |
| Stroke | 750 mm |
| Pressing Speed | 2.6–35.7 m/min |
| Extraction Speed | 2.0–26.9 m/min |
| Operation Mode | Wireless / Wired Control |
| Weight (Press-in Only) | 6945 kg |
| Weight (With Water Jet) | 7345 kg |

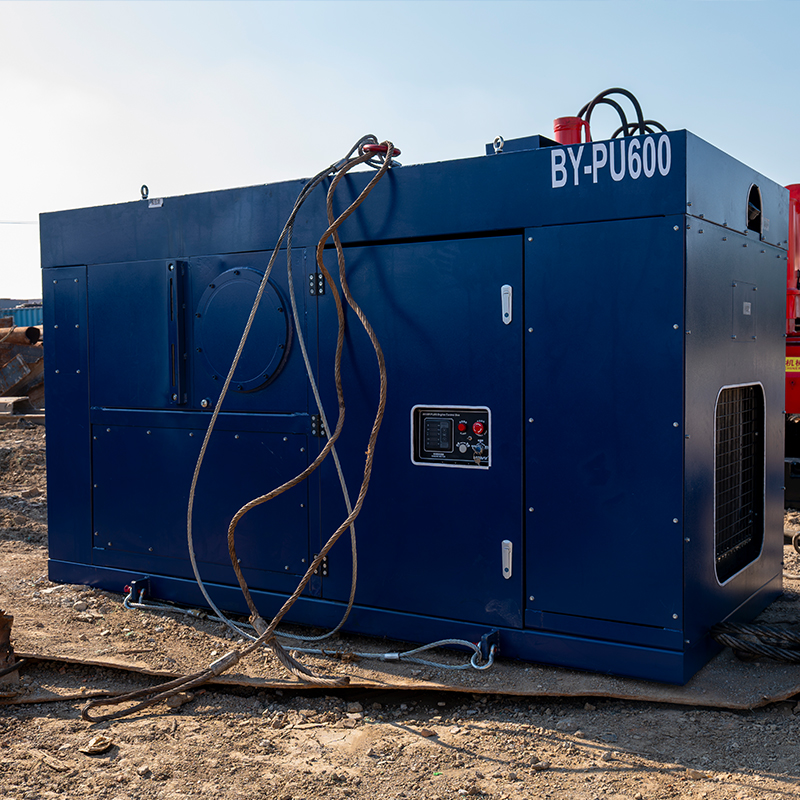

Power Unit
| Item | Specification |
| Power Source | Diesel Engine |
| High Power Mode | 195 kW / 1750 rpm |
| Eco Mode | 173 kW / 1650 rpm |
| Eco-friendly Mode | 152 kW / 1450 rpm |
| Fuel Tank Capacity | 590 L |
| Hydraulic Oil Tank Capacity | 500 L |
| Weight | 6490 kg (Standard 20 m hydraulic hose) |
Reaction Frame
| Item | Specification |
| Weight | 1580 kg |
Water Jet System
| Item | Specification |
| Applicable Pile Length | Standard 17 m (Maximum 27 m) |
| Weight | 500 kg |
