What Is a Hydraulic Demolition Shear?
A Hydraulic Demolition Shear is a heavy-duty excavator attachment designed for cutting steel structures, scrap metal, and reinforced components.
In some markets, it is also referred to as a Scrap Shear, Steel Structure Shear, or informally as an “Eagle Beak Shear” due to its jaw shape.
This attachment is mounted on excavators through a quick-coupler system and powered by the carrier’s hydraulic circuit. It is widely used in:
- Steel structure demolition
- Scrap metal recycling
- End-of-life vehicle (ELV) dismantling
- Heavy equipment dismantling
The shear body adopts a reinforced box-type structure with heavy-duty pivot pins to ensure stability under high-load operations. Replaceable cutting blades are designed for easy maintenance without complicated welding or grinding.
Demolition shears are available for excavators ranging from 15 to 55 tons. Smaller models are suitable for rebar and medium steel cutting, while larger models can process thick steel plates, heavy beams, and truck chassis components.
Working Principle of a Hydraulic Demolition Shear
The working principle is based on hydraulic power transmission combined with mechanical leverage.
1️⃣ Hydraulic Power Source
The shear connects directly to the excavator’s hydraulic system. High-pressure hydraulic oil is delivered into a large-diameter cylinder.
2️⃣ Force Transmission
The hydraulic cylinder drives a piston, which rotates the movable jaw around a reinforced pivot point.
3️⃣ High-Force Cutting Action
As the jaws close, the lever principle amplifies the output force, generating powerful shearing strength capable of cutting:
- Structural steel
- Rebar bundles
- Steel plates
- Pipes and beams
4️⃣ Reset and Continuous Operation
After cutting, hydraulic oil returns to the tank, and the jaws reopen for the next cycle.
Some models are equipped with 360-degree hydraulic rotation, allowing multi-angle cutting and improving efficiency in complex demolition environments.
Internal structural components are designed to prevent mechanical interference and ensure precise blade alignment during closure.
Main Applications of Hydraulic Demolition Shears

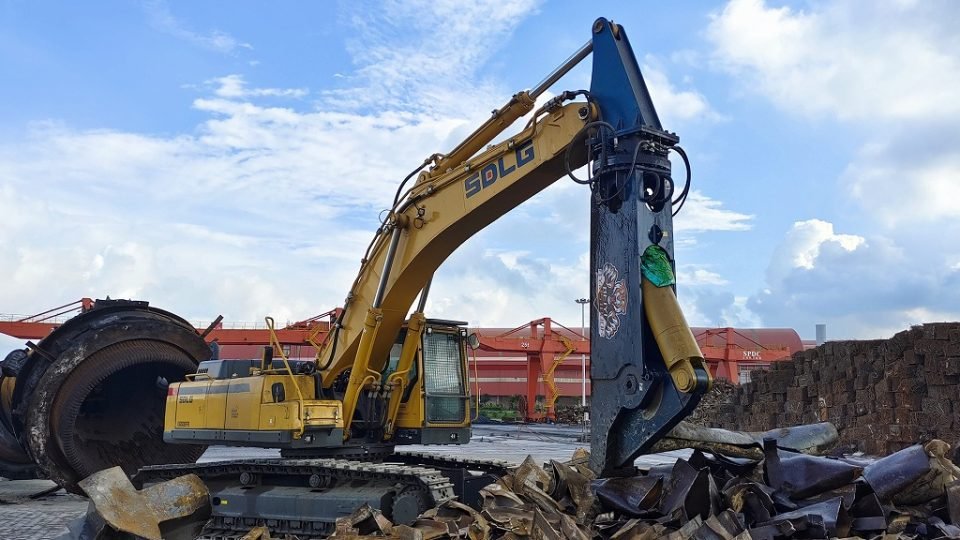

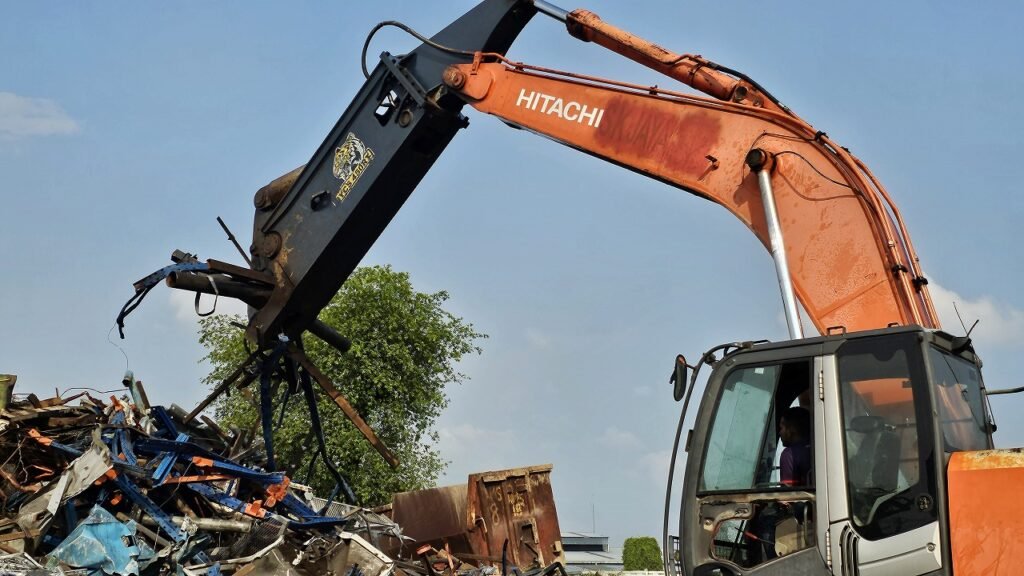

1️⃣ Scrap Metal Recycling
In scrap yards and recycling facilities, demolition shears cut:
- I-beams
- Channel steel
- Rebar bundles
- Structural scrap
The processed material becomes easier to transport and remelt, improving recycling efficiency.

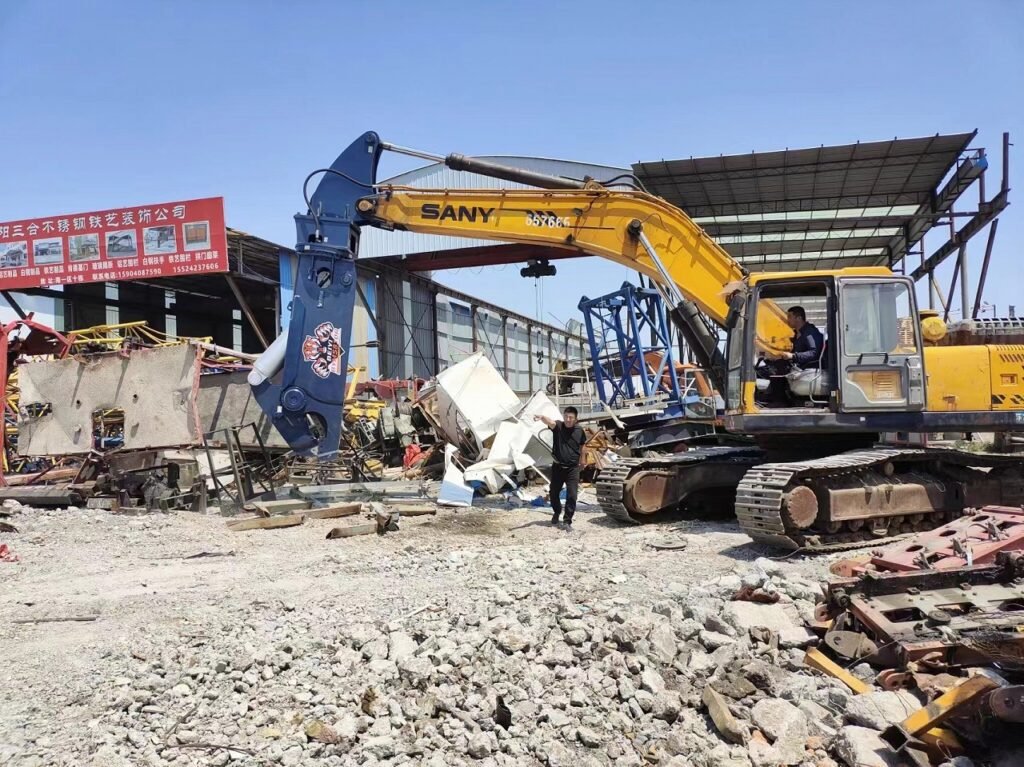

2️⃣ Steel Structure Demolition
Used in dismantling:
- Steel workshops
- Industrial plants
- Tower crane structures
- Large steel frameworks
The shear can directly cut beam-column joints and structural connections on site, reducing secondary handling.
3️⃣ End-of-Life Vehicle (ELV) Dismantling
Demolition shears are widely used in vehicle recycling yards to dismantle:
- Truck chassis
- Trailer frames
- Longitudinal beams
- Heavy equipment structures
Different models are selected according to vehicle size and steel thickness.
4️⃣ Shipbreaking and Heavy Equipment Dismantling
Large models are capable of cutting:
- Thick steel plates (40mm+)
- Large-diameter round steel (100mm+)
- Heavy structural components
They are commonly used in ship dismantling and industrial equipment removal projects.
5️⃣ Emergency and Special Applications
Demolition shears may also be used for:
- Oil pipe cutting in oilfield upgrades
- Removing steel reinforcement from concrete
- Clearing metal debris during rescue operations
Key Features of Hydraulic Demolition Shears
✔ Compatible with major excavator brands
✔ High-strength wear-resistant steel construction
✔ Replaceable cutting blades
✔ Optional 360° hydraulic rotation
✔ Stable box-type structure for heavy-duty operation
A Hydraulic Demolition Shear is a powerful excavator-mounted attachment designed for steel cutting, scrap processing, and structural dismantling.
With strong hydraulic force, reinforced structural design, and wide application adaptability, it has become essential equipment in demolition and recycling industries worldwide.
