Tiltrotator

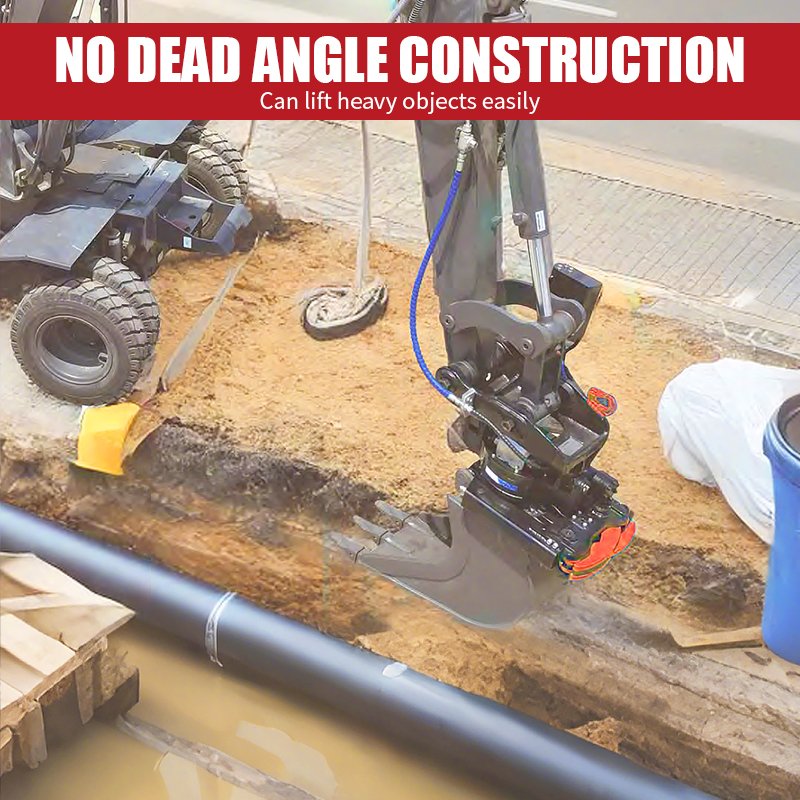

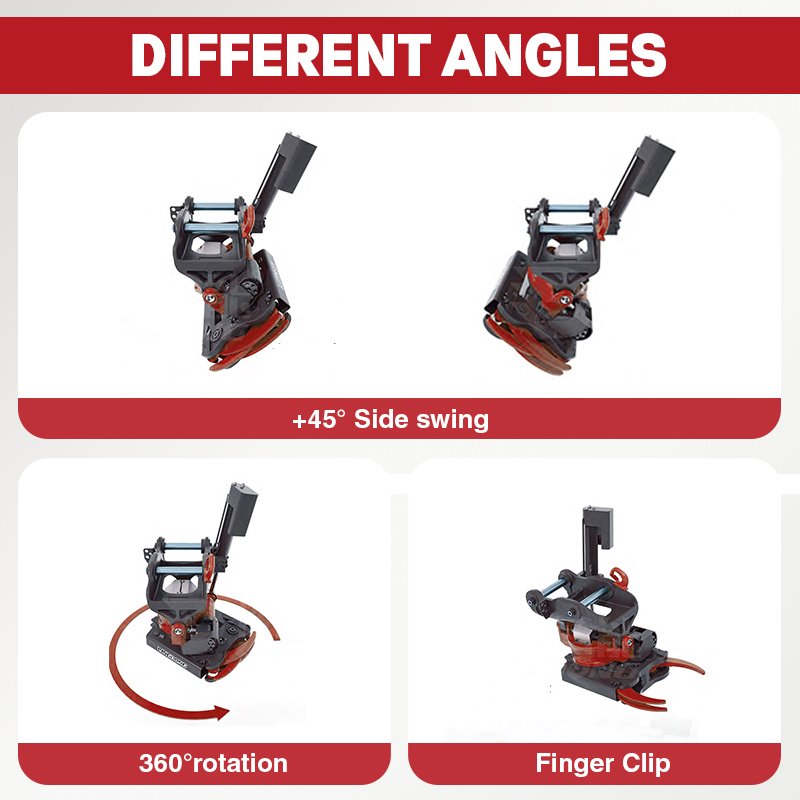

The hydraulic wrist tiltrotator enables multi-angle operation for excavators. Based on the traditional excavator movement that only allows tilting, this device adds 360° continuous rotation and ±45° side tilting, allowing operators to perform tasks from multiple angles and work efficiently even in confined or complex environments.
A quick coupler system is installed at the lower end, enabling fast attachment changes and improving overall working efficiency in different applications.
The front gripper clamp allows the operator to easily handle and grip heavy materials, further enhancing the versatility and functionality of the excavator.
Download File
Product Description

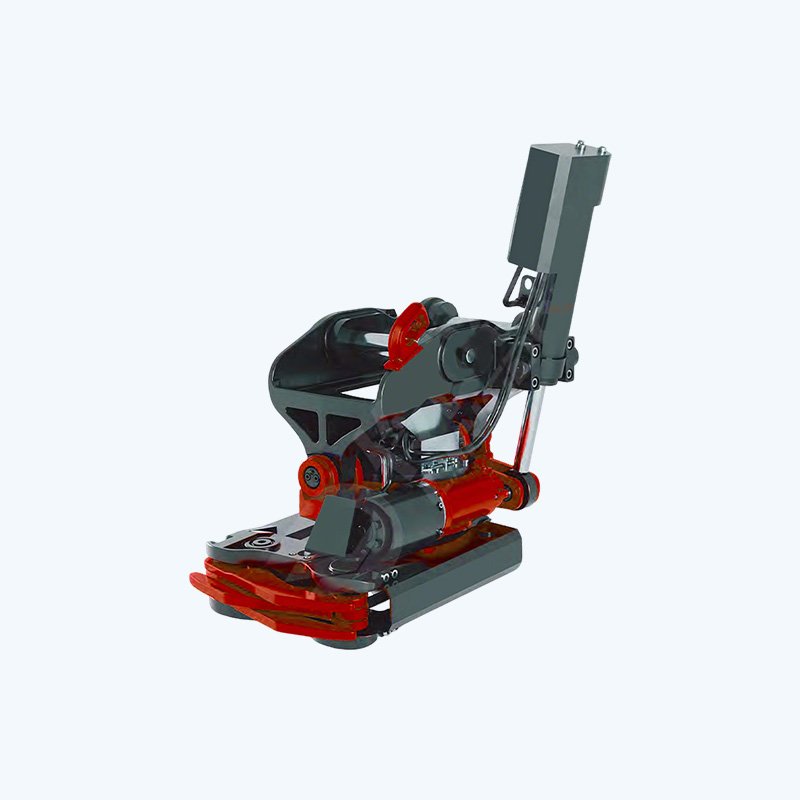

The Excavator Tiltrotator is an advanced excavator attachment designed to greatly improve flexibility and efficiency in modern construction work. By combining 360° continuous rotation with a ±45° tilt angle, the tiltrotator allows operators to position work tools from almost any angle without repositioning the excavator.
This rotating tilt coupler significantly expands the functionality of the excavator, making it suitable for a wide range of applications including construction sites, road construction, utility installation, cable laying, trenching, and landscaping.
With the integrated quick hitch system, operators can quickly change attachments such as buckets, grapples, breakers, and augers directly from the cab, improving jobsite efficiency and reducing downtime.
The combination of tilting, rotating, and quick coupling functions enables precise tool control, especially when working in confined spaces or complex environments.
Experienced operators report that using an excavator tiltrotator can increase productivity by 20% to 35%, depending on the type of work. By maximizing tool positioning and reducing machine repositioning, the tiltrotator helps unlock the full potential of the excavator.
Excavator Tiltrotator Performance Parameters
| Model | BY-07W | BY-10W | BY-15W | BY-20W |
| Suitable Excavator | 5–7 t | 7–12 t | 10–15 t | 15–18 t |
| Maximum Tilt Angle | ±45° | ±45° | ±45° | ±45° |
| Hydraulic Flow | 18–38 L/min | 70–90 L/min | 80–100 L/min | 100–120 L/min |
| Max Working Pressure | 220 bar | 220 bar | 220 bar | 220 bar |
| Gripper Opening | 310 mm | 500 mm | 500 mm | 565 mm |
| Gripper Safe Load | 120 kg | 250 kg | 250 kg | 350 kg |
| Tilt Torque | 15 kNm | 29 kNm | 43 kNm | 62 kNm |
| Rotation Torque | 6.5 kNm | 5.4 kNm | 7.8 kNm | 8.8 kNm |
| Max Cylinder Speed | / | 80 mm/s | 80 mm/s | 90 mm/s |
| Weight | 275 kg | 350 kg | 595 kg | 680 kg |
| Display & Control Screen | Standard | Standard | Standard | Standard |
| Multi-Function Joystick | Standard | Standard | Standard | Standard |
| Multi-Language Support | Standard | Standard | Standard | Standard |
| Position Lock | No / Optional | No / Optional | No / Optional | No / Optional |
| Horizontal Attitude Simulator | Optional | Optional | Optional | Optional |
| Automatic Hydraulic Coupling | Optional | Optional | Optional | Optional |
Note: Specifications are subject to change without prior notice due to continuous product improvement.
