Pile Cutter
Pile Cutter

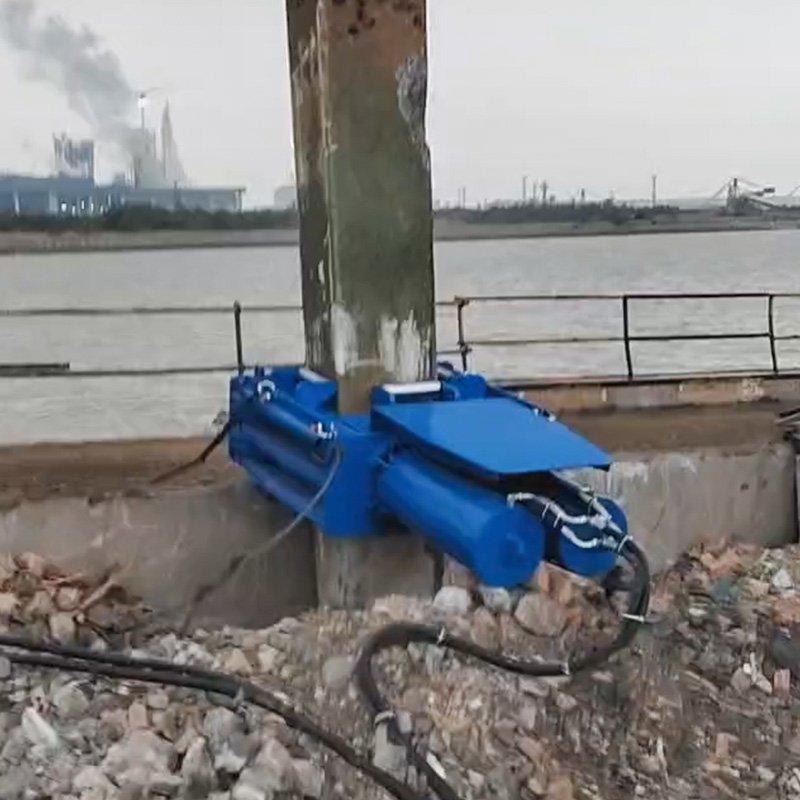

Whether you’re dismantling high-rise structures or cutting offshore piles, you need a tool that delivers precision, power, and control. This hydraulic pile cutter is equipped with a high-strength cutting blade to handle demanding demolition jobs efficiently.

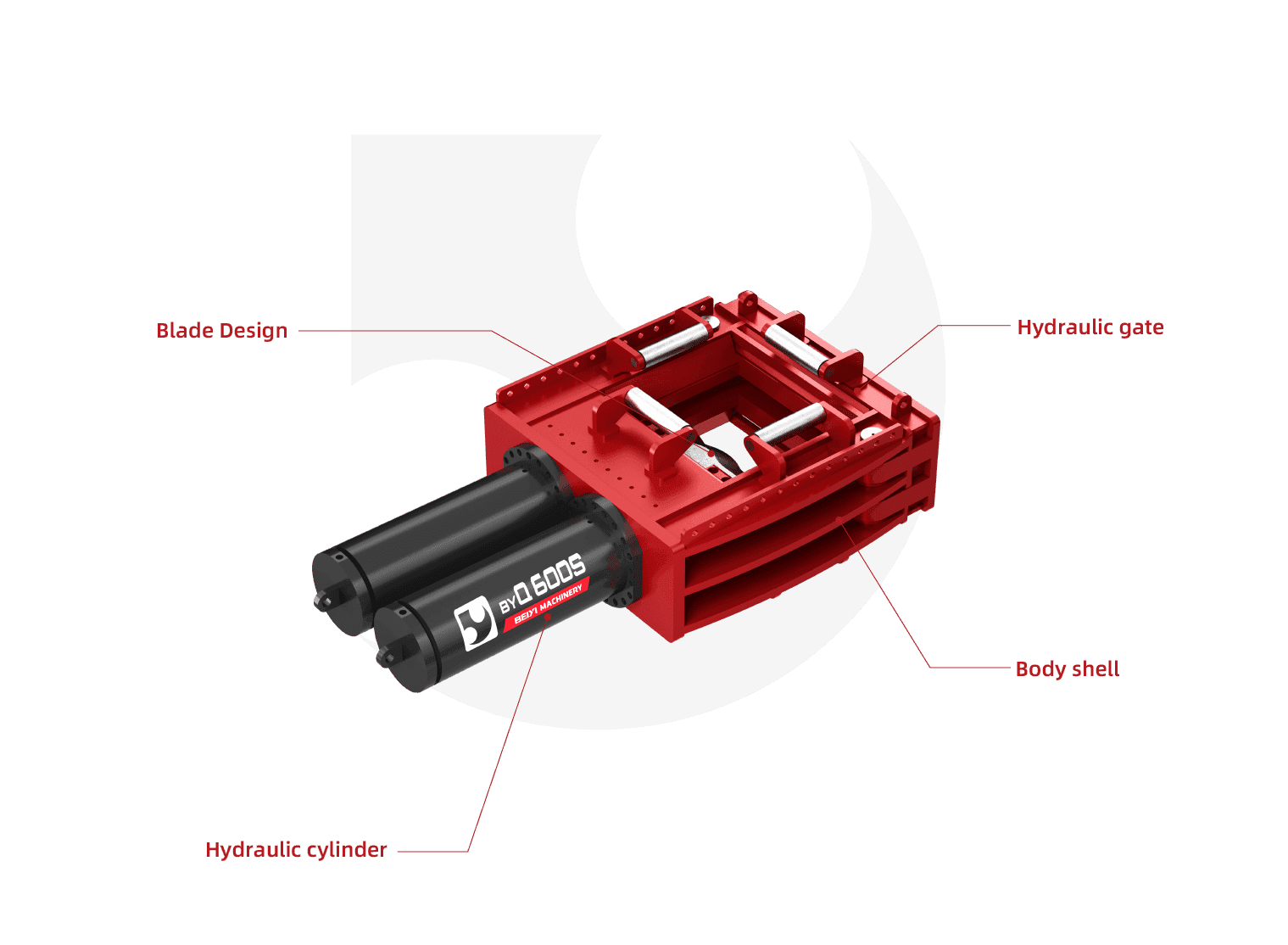

Features
-

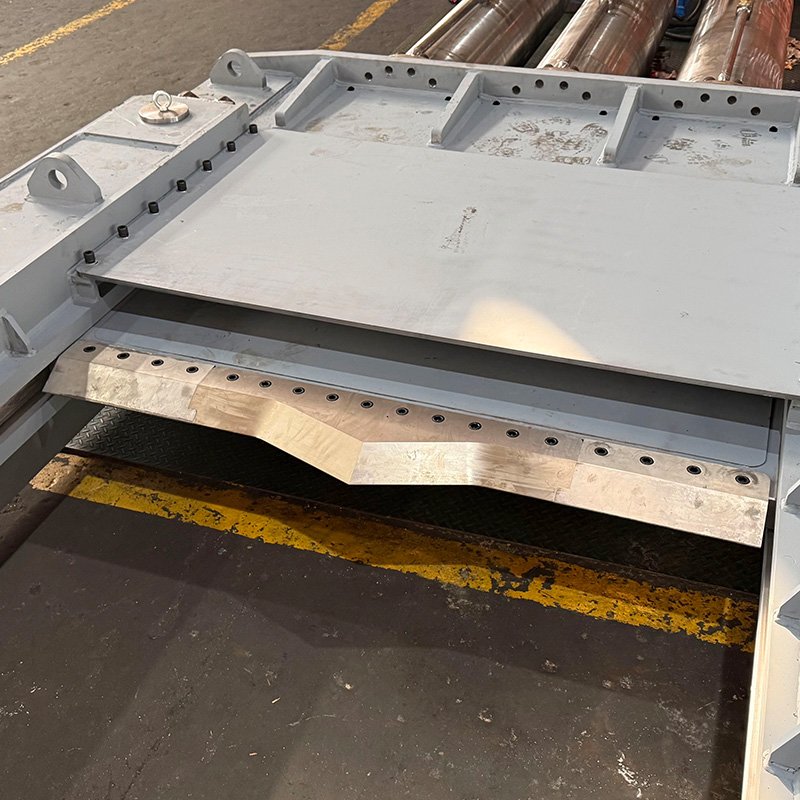

High-Strength Blade: Delivers strong cutting performance and cuts rebar directly, suitable for complex demolition conditions.
-

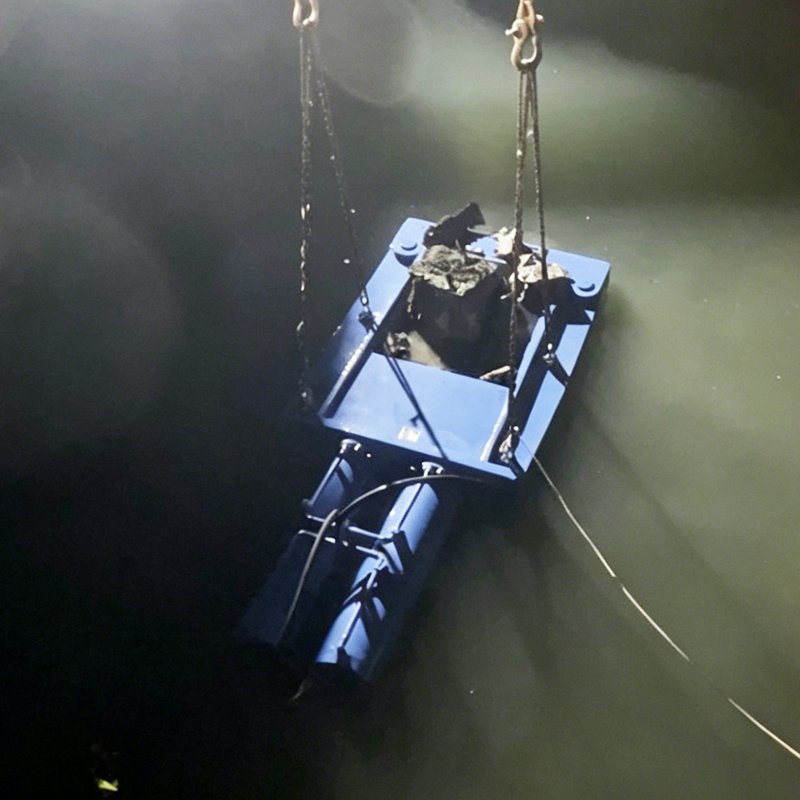

Underwater Cutting: The single-blade design completes cutting from one side, making it suitable for confined underwater areas. It supports cutting above water and underwater, at different angles and positions (vertical or horizontal).
-
High-Altitude Demolition: Suitable for high-level dismantling applications such as bridge demolition.
-

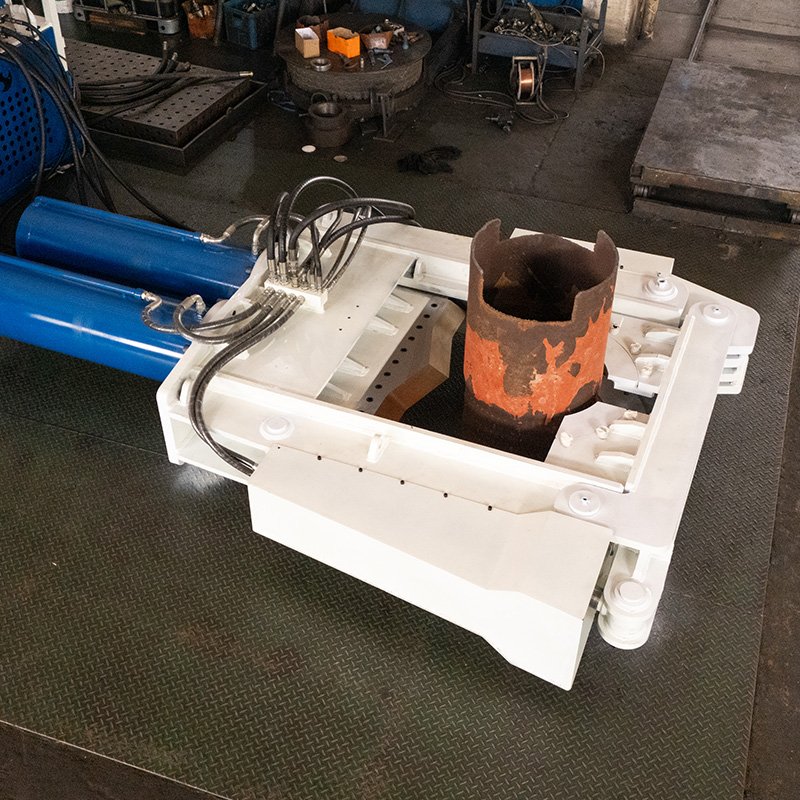

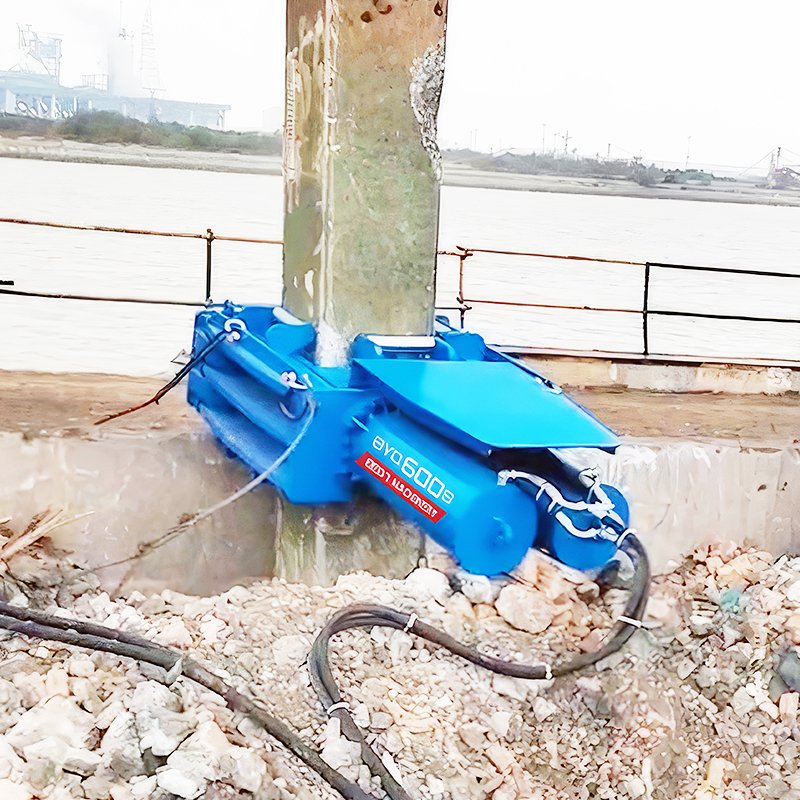

Hydraulic Clamping Gate: A hydraulic gate closes around the pile to secure it firmly during cutting, improving stability and safety.
Product Description
Pile Cutter Features

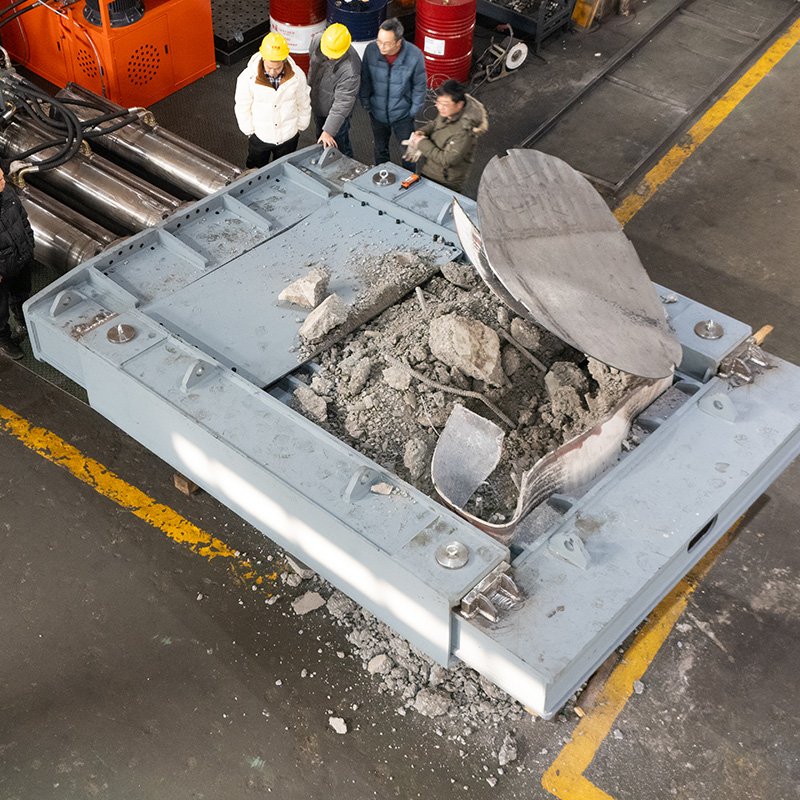

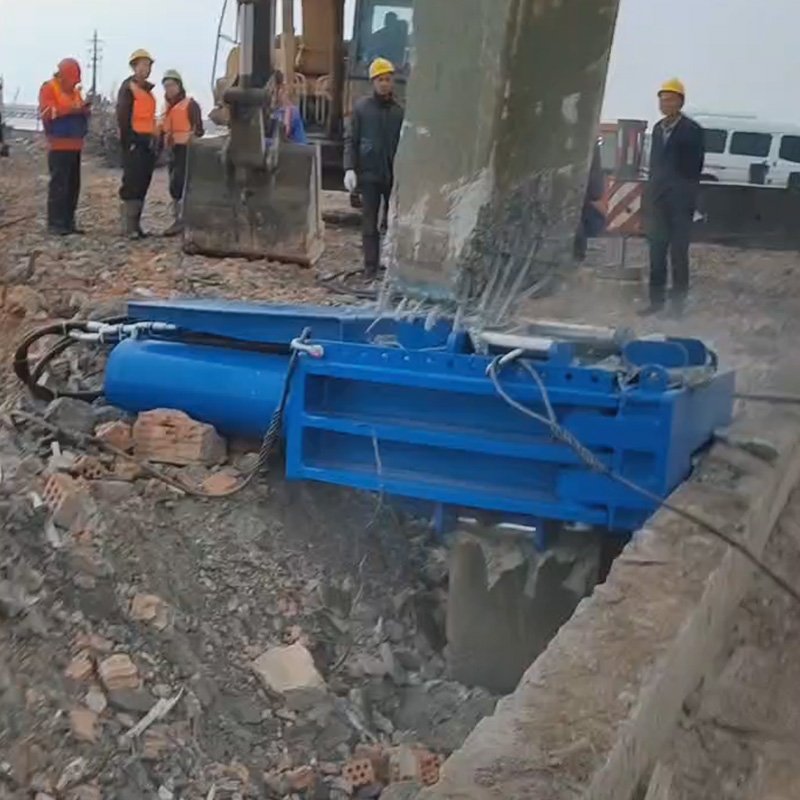

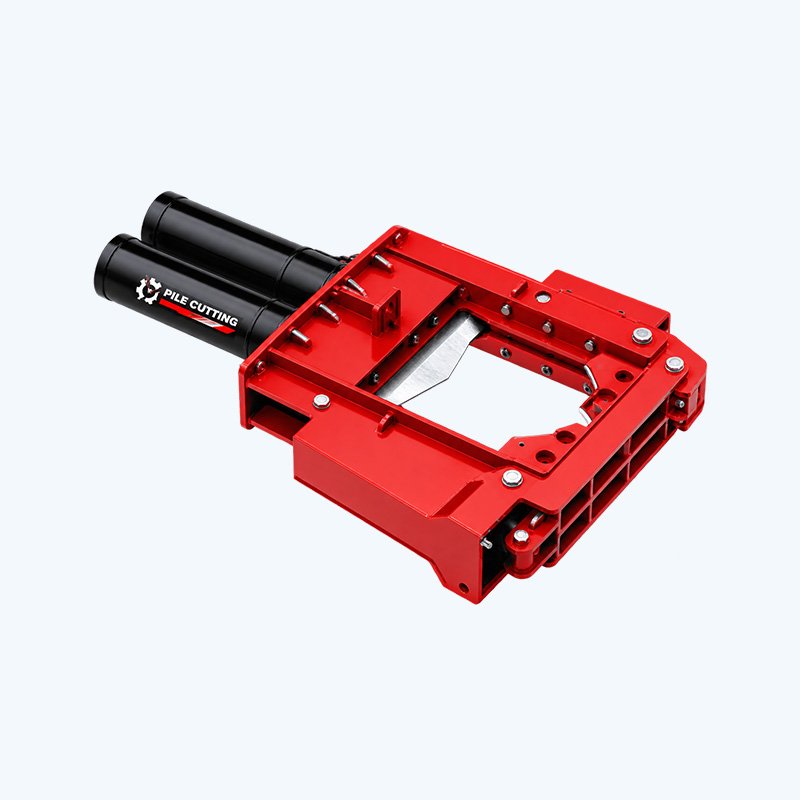

The pile cutter is equipped with high-strength cutting blades, enabling the pile body and embedded reinforcement to be cut simultaneously, ensuring efficient and controlled pile head removal.

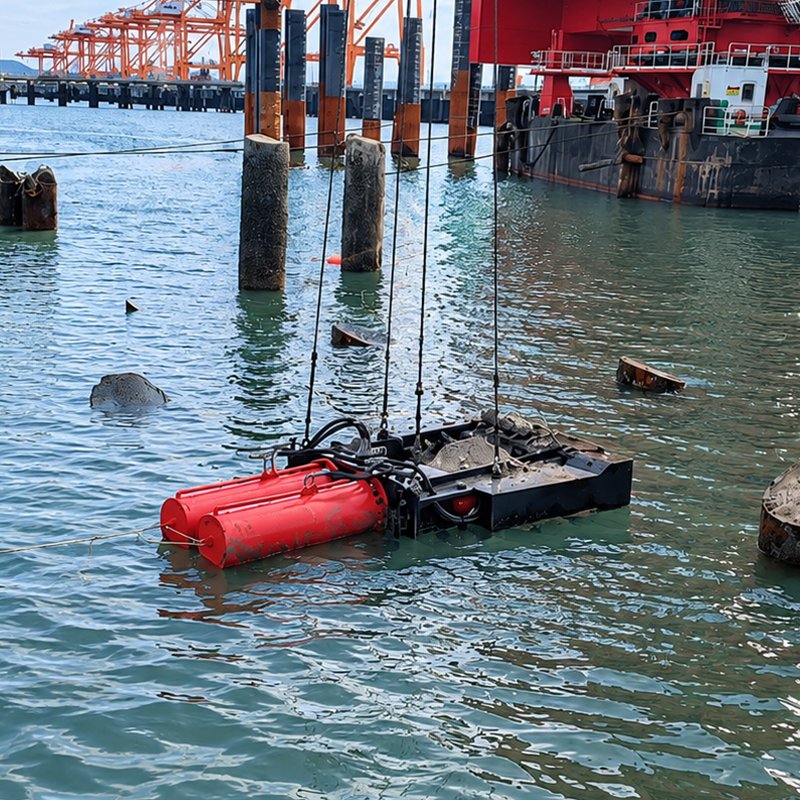

It is suitable for high-elevation cutting operations in bridge projects as well as pile cutting of decommissioned support piles in deep-water or offshore environments, meeting the requirements of complex working conditions.
Application Range
- Bridge and railway foundations
- Ports, trestles, and marine engineering projects
- Industrial and agricultural building foundations
- Trestle and platform pile structures
Product Parameters
| Model | Unit | BYQ-600S | BYQ-700S | BYBP900WS |
| Net Weight | kg | 3365 | 4125 | 5400 |
| Overall Dimensions (L × W × H) | mm | 2628 × 1300 × 770 | 3230 × 1540 × 550 | 3850 × 2400 × 770 |
| Maximum Cutting Capacity | mm | 600 × 600 (Customizable) | 700 × 700 (Customizable) | 900 × 900 (Customizable) |
| Rebar Cutting Blade Length | mm | 600 | 700 | 1000 |
| Crushing Force | kN | 600 | 390 | 800 |
| Working Pressure | MPa | 28–32 | 28–32 | 28–32 |

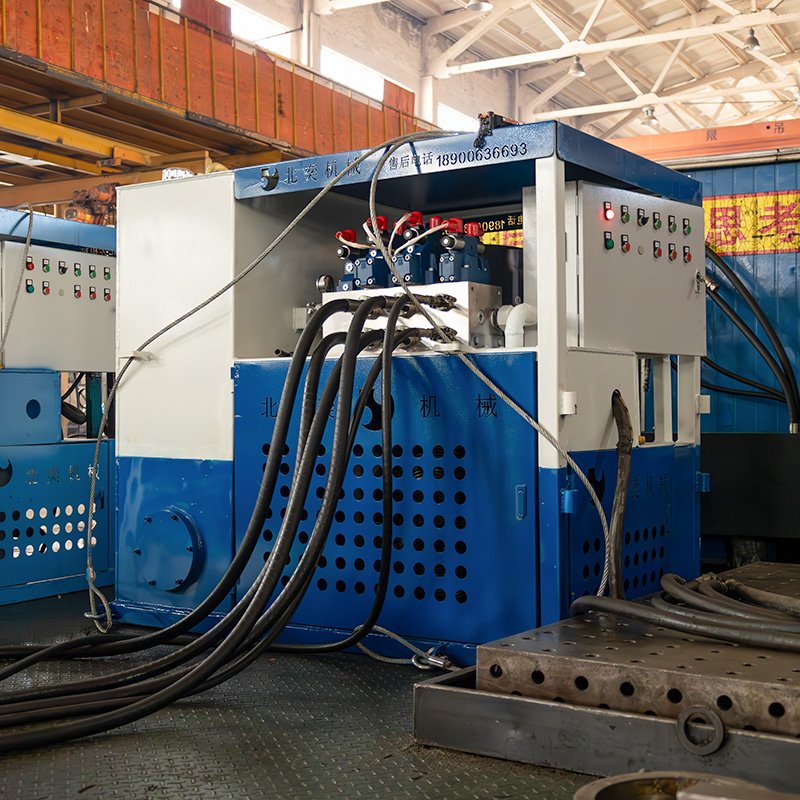

| Required Hydraulic Power | kW | 22 | 22 | 45 |
Hydraulic Pile Cutter Operation & Case Video
