Orange Peel Magnet Grapple

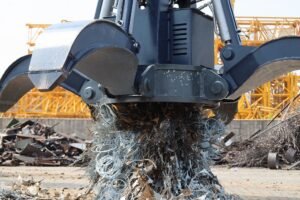

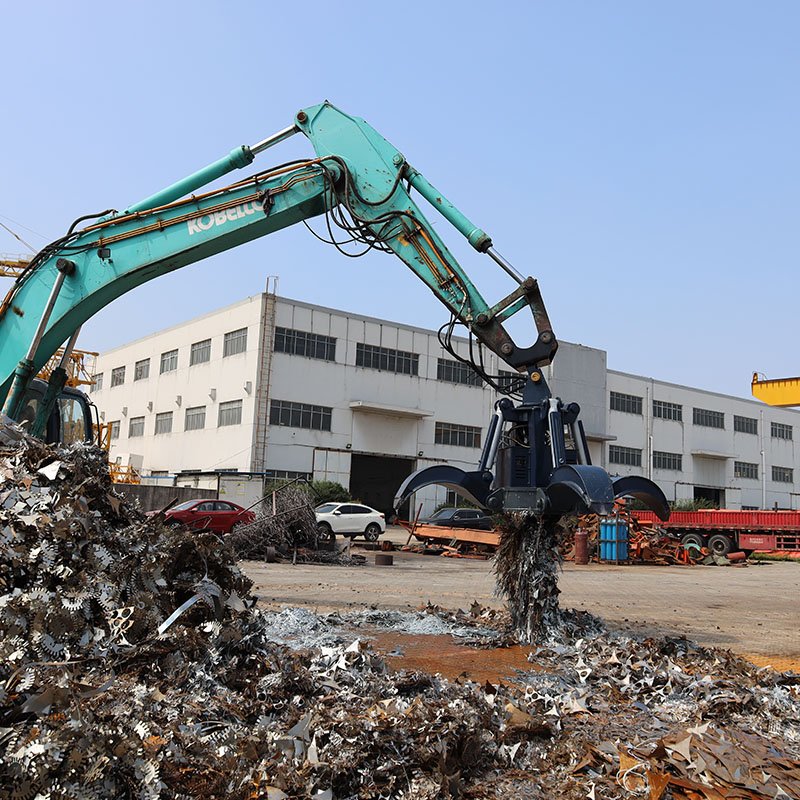

Built with high-strength permanent magnets, the Magnetic Grapple allows you to lift, hold, and position ferrous materials safely and efficiently. Once the magnets make contact with steel or iron, a strong magnetic force instantly creates a secure grip—ideal for handling scrap metal, steel plates, rebar, and demolition debris on job sites.
Features
-
Integrated high-strength permanent magnets for reliable lifting and handling
-
Strong holding force for stable gripping, reducing the risk of slipping
-
Efficient for sorting, loading, and transferring ferrous scrap and steel materials
-
Suitable for scrap yards, demolition sites, recycling plants, and material handling operations
Product Description

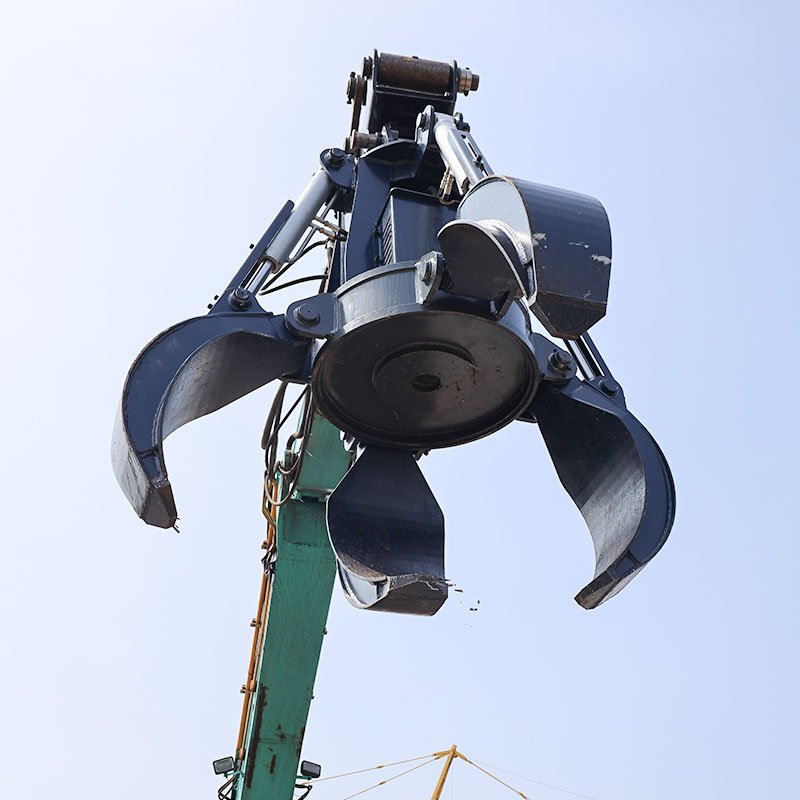

Orange Peel Magnet Grapple Description

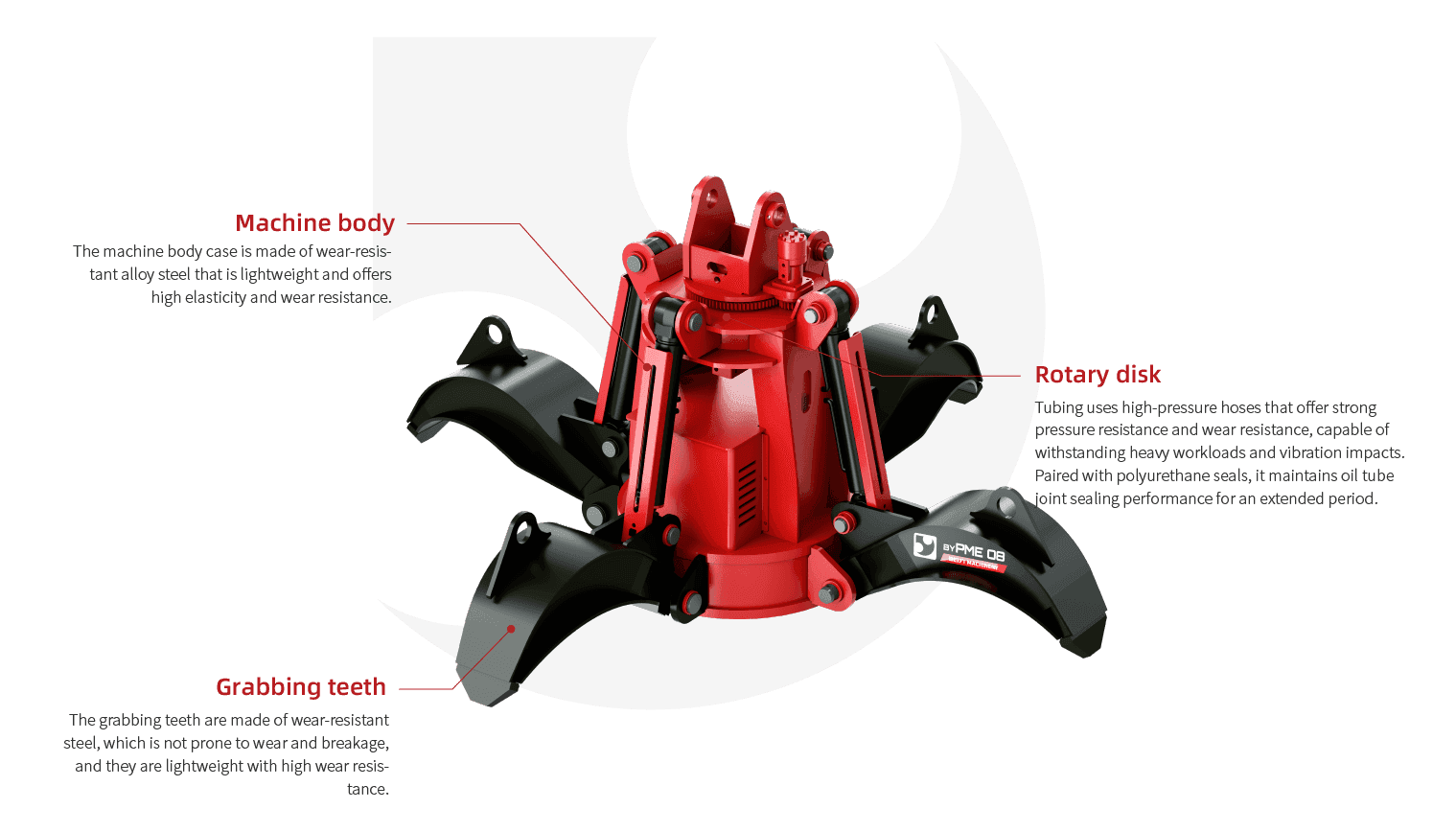

The magnetic grapple is an engineering attachment designed for material handling based on the principle of electromagnetic attraction. It mainly consists of an electromagnetic system and a grab structure. When energized, the system generates a stable magnetic field, enabling efficient lifting, handling, and release of ferrous materials such as steel, rebar, and scrap metal.

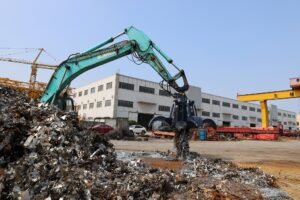

The equipment is widely used in scrap recycling, demolition operations, port handling, and on-site metal material handling.
Magnetic Grapple Performance Parameter
| Model | Unit | BYPME08 |
| Operating Weight | kg | 2450 |
| Max. Jaw Opening | mm | 3390 |
| Closed Height | mm | 2610 |
| Open Height | mm | 1775 |
| Working Pressure | bar | 260–320 |
| Hydraulic Flow | L/min | 160–200 |
| Magnet Diameter | mm | 1000 |
| Lifting Capacity (Steel Plate) | kg | 2000–3000 |
| Lifting Capacity (Bulk Scrap) | kg | 200–1000 |
| Cylinder Capacity | L | 1000 |
| Number of Tines | pcs | 4 |
| Suitable Excavator | ton | 20–45 |

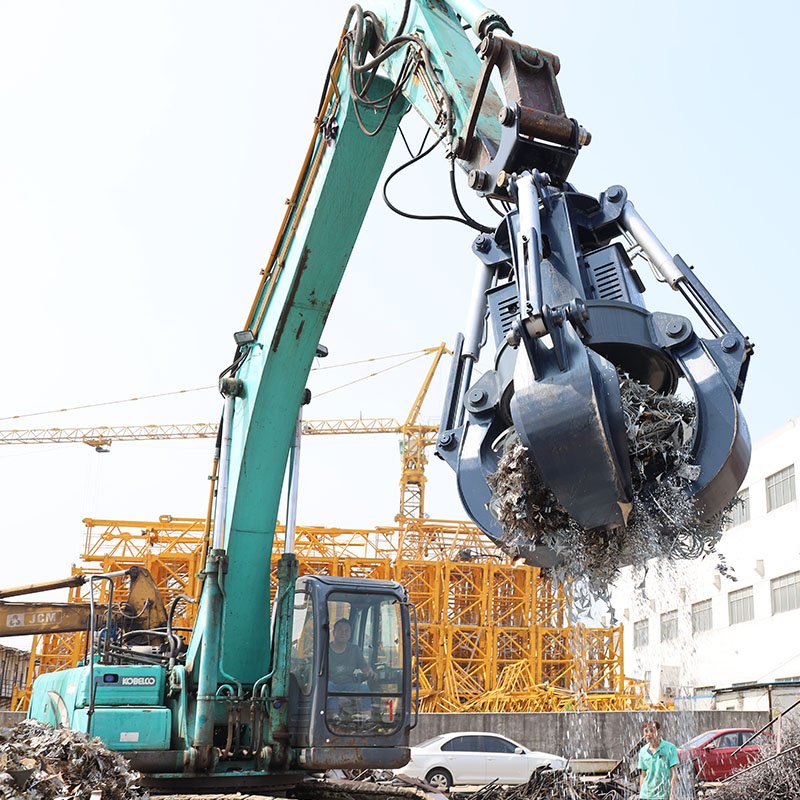

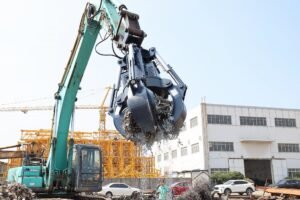

Orange Peel Grapple with Magnet Construction Case Video
