Orange Peel Grapple

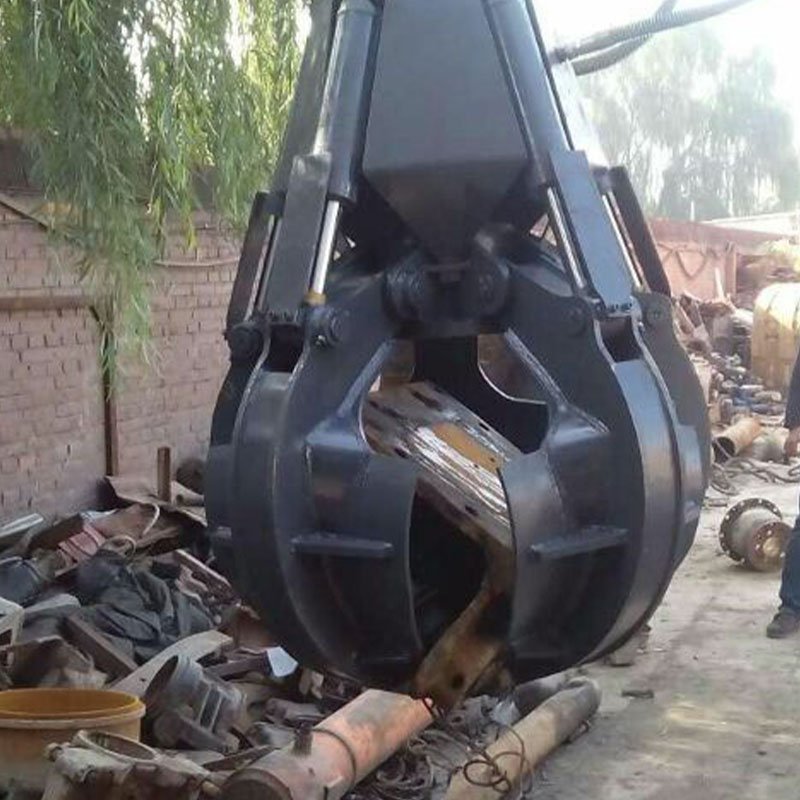

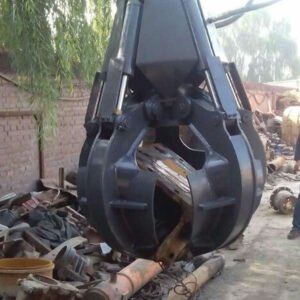

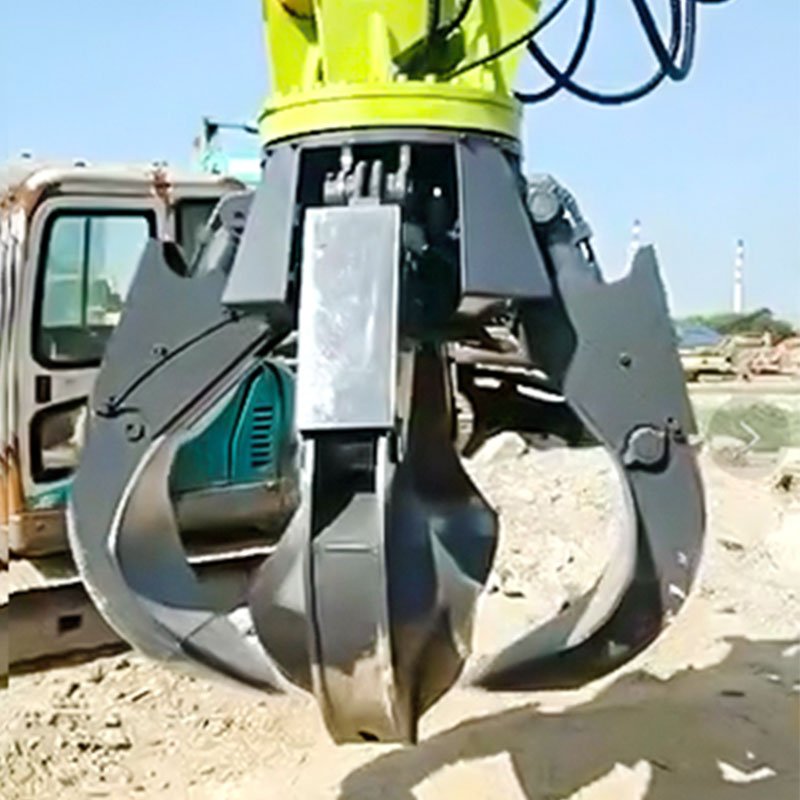

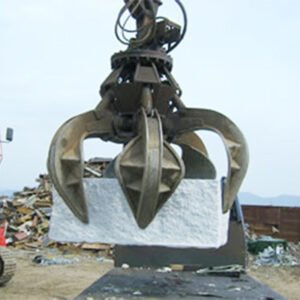

The orange peel grapple is designed to operate reliably in harsh and demanding working conditions. Its specially designed jaw curve is particularly suitable for handling irregular materials such as scrap steel and pig iron, improving gripping efficiency while reducing material spillage during operation.

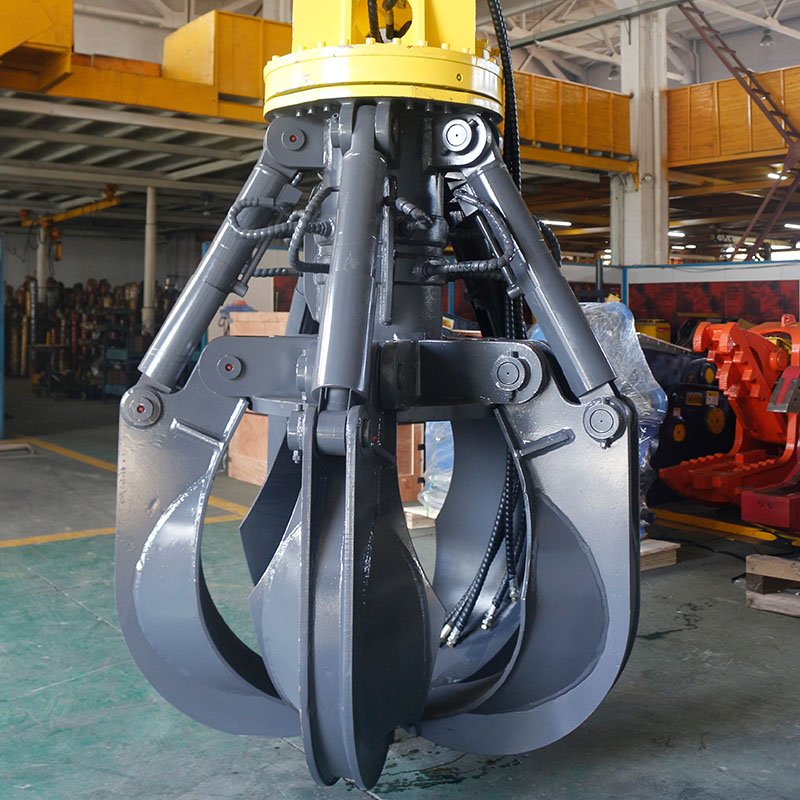

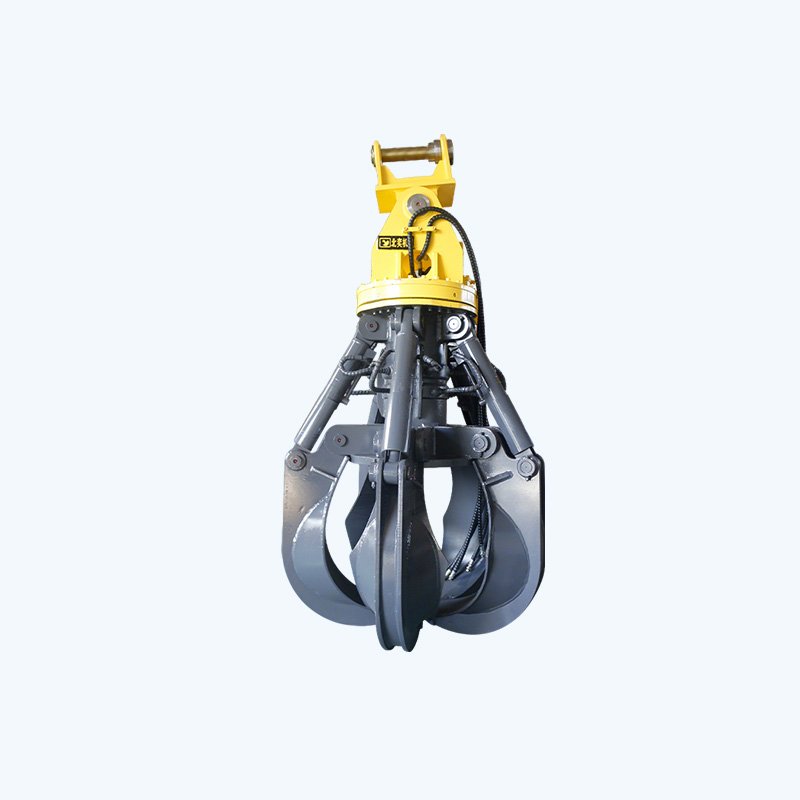

The grapple is typically equipped with 2–6 jaws, each driven by an independent hydraulic cylinder. This design provides strong and stable gripping force, ensuring that materials are securely held during handling and transportation.
Download File
Product Description
The orange peel grapple is designed to operate reliably in harsh and demanding working conditions. Its specially designed jaw curve is particularly suitable for handling irregular materials such as scrap steel and pig iron, improving gripping efficiency while reducing material spillage during operation.
The grapple is typically equipped with 2–6 jaws, each driven by an independent hydraulic cylinder. This design provides strong and stable gripping force, ensuring that materials are securely held during handling and transportation.
Orange Peel Grapple Applications
-
Construction Works
Used for foundation excavation, deep pit operations, and loading of materials such as soil, sand, coal, and crushed stone. -

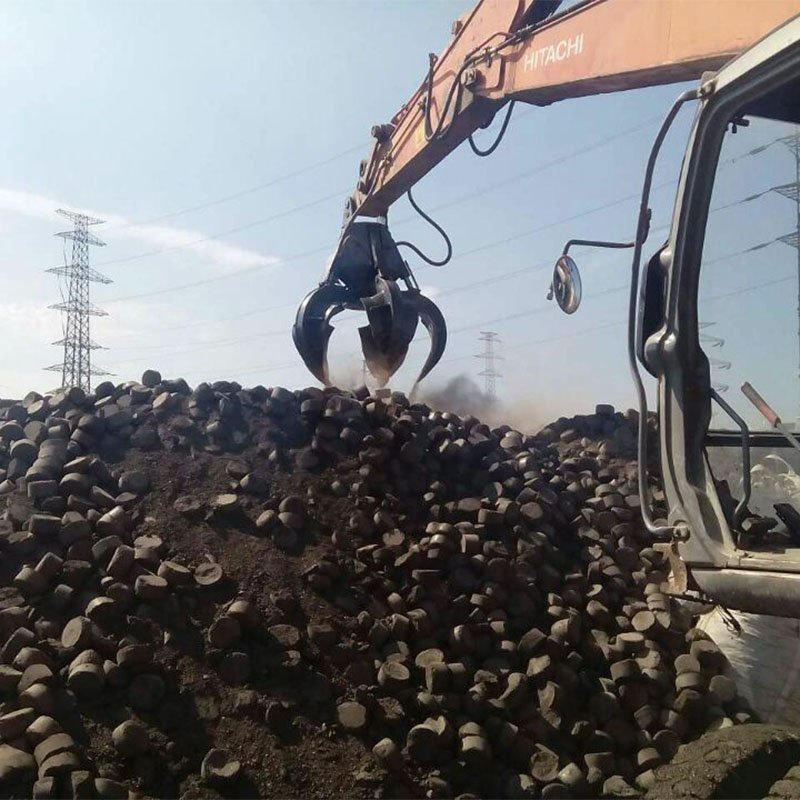

Material Handling

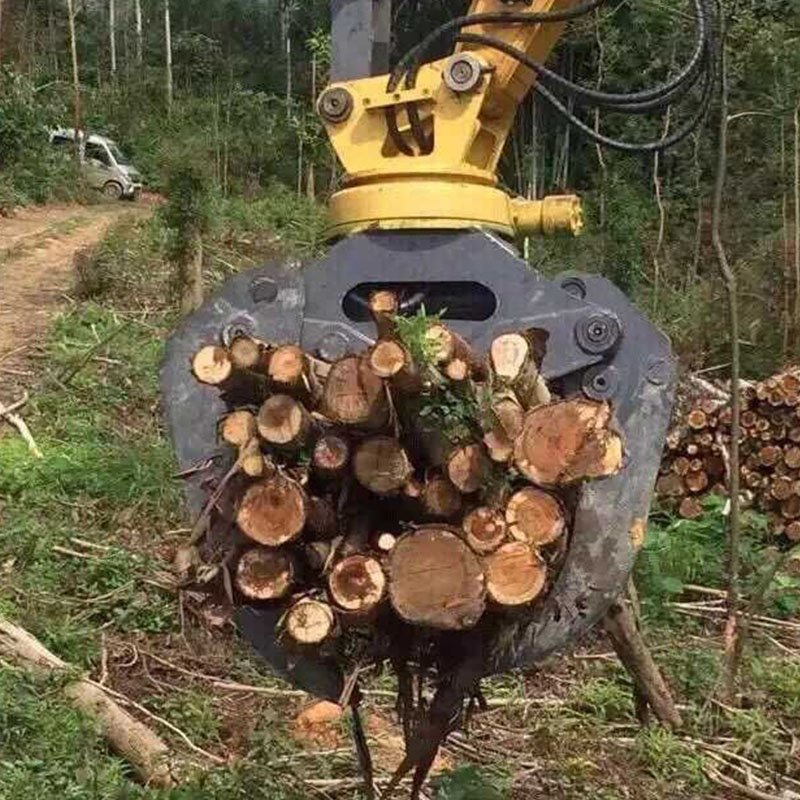

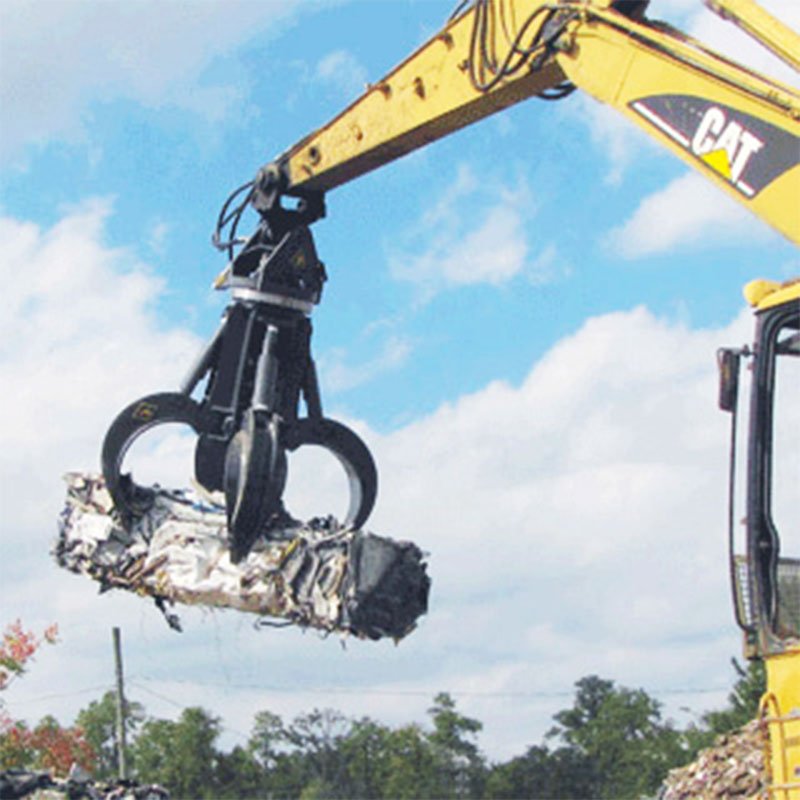

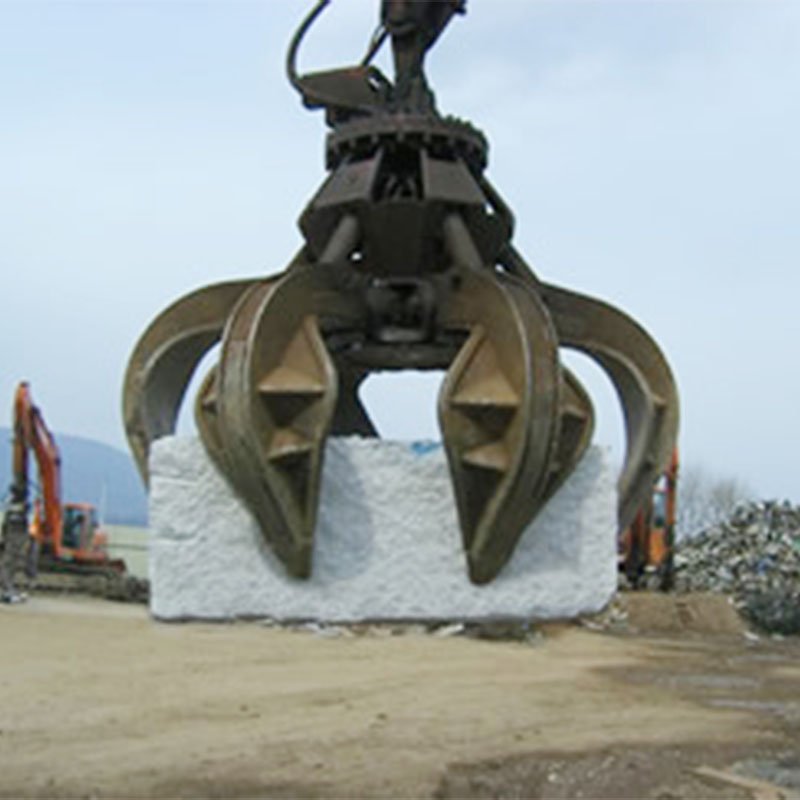

Widely used in steel plants, ports, terminals, railway yards, cargo yards, and storage yards for handling scrap metal, bulk materials, timber, ballast, and other materials.
Orange Peel Grapple Technical Parameters
| Item | Unit | BYKM04 | BYKM06 | BYKM08 | BYKM10 |
| Weight | kg | 560 | 800 | 1900 | 2200 |
| Max Opening | mm | 1600 | 1600 | 2500 | 2900 |
| Closed Height | mm | 1150 | 1480 | 2000 | 2500 |
| Max Working Pressure | bar | 260 | 260 | 320 | 320 |
| Operating Flow | L/min | 20–70 | 60–120 | 200–250 | 250–300 |
| Hydraulic Cylinder Capacity | L | 400 | 500 | 1000 | 1200 |
| Number of Jaws | pcs | 4–5 | 4–5 | 4–5 | 4–5 |
| Suitable Excavator | ton | 6–8 | 10–15 | 18–24 | 26–35 |
