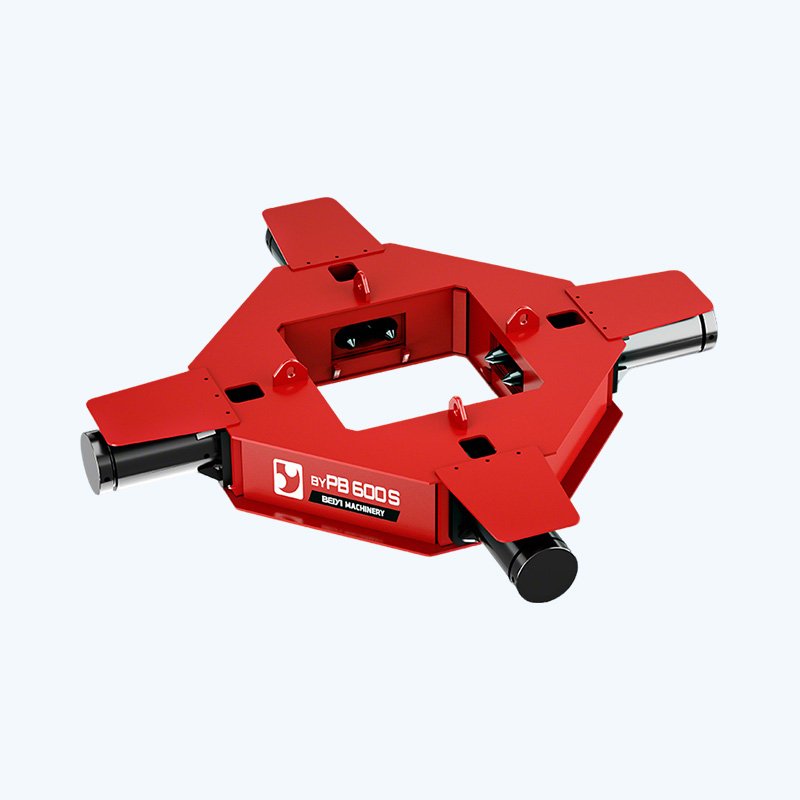

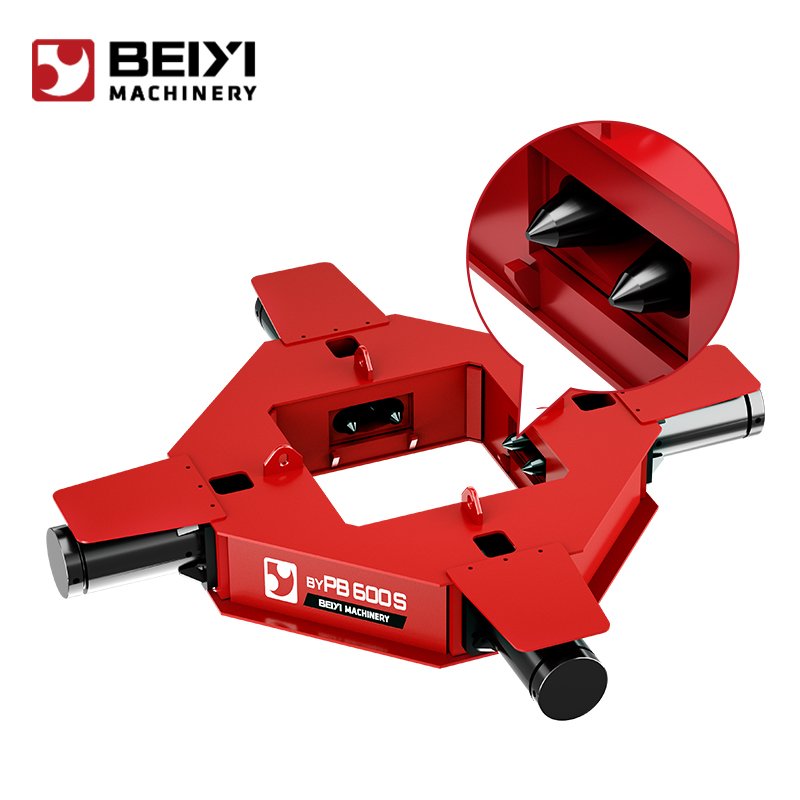

Hydraulic Square Pile Breaker
For cutting off pile heads of cast-in-place or precast piles, this Square Pile Breaker provides an efficient and reliable solution. It is widely used in high-speed railway bridge construction, as well as industrial and civil foundation projects.
In general, circular pile breakers are suitable for pile diameters of 350–650 mm, while square pile breakers are suitable for piles with a side length of 350–650 mm, meeting the requirements of various large-scale foundation works.
Features
-
Applicable Pile Size: Suitable for square piles with a side length of 350–650 mm.
-
Remote-Controlled Hydraulic Power Unit: Can be equipped with a wireless remote-controlled hydraulic power unit for convenient operation.
-
High Safety & Durability: Designed with a focus on operational safety and long service life.
-

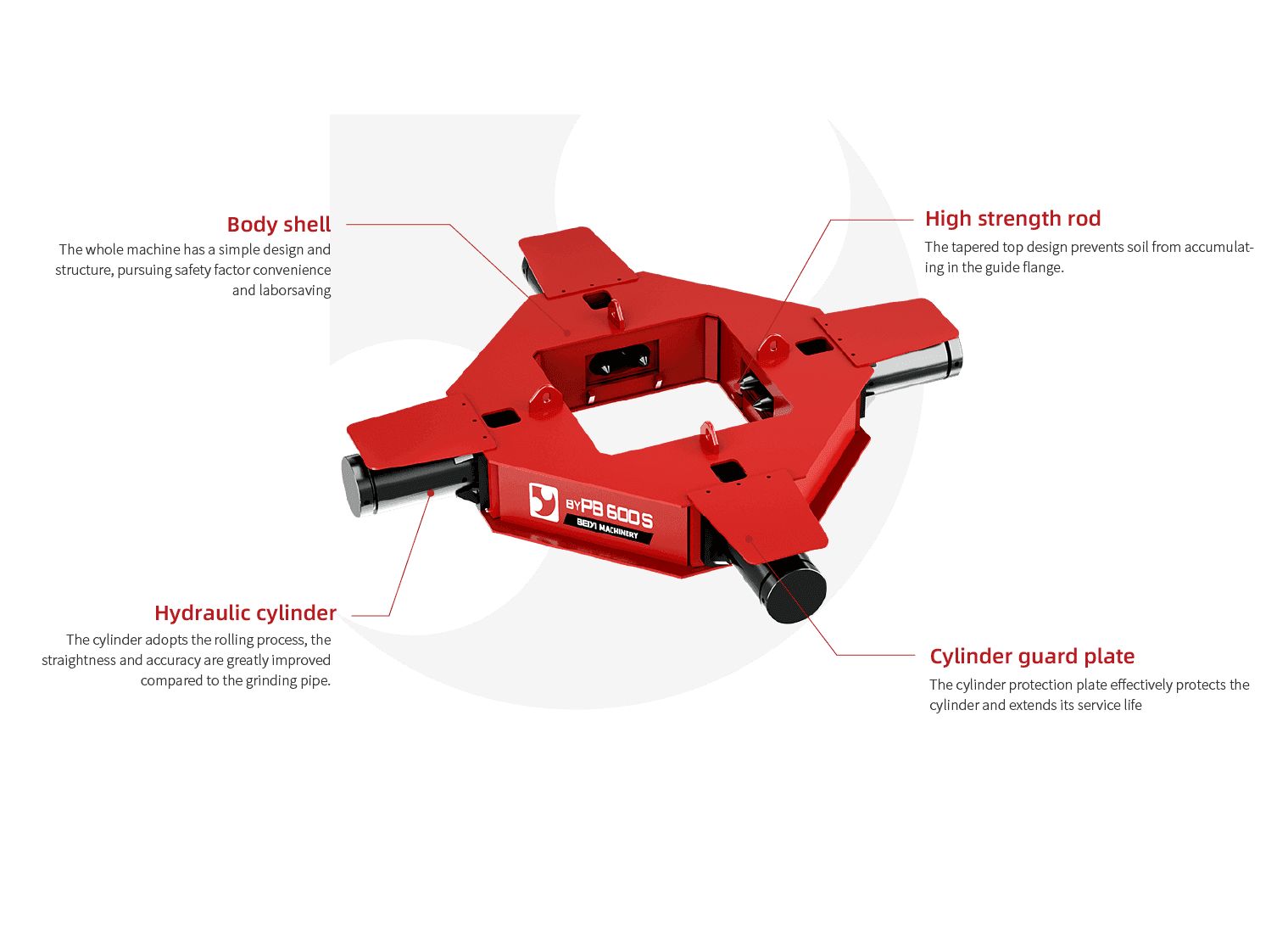

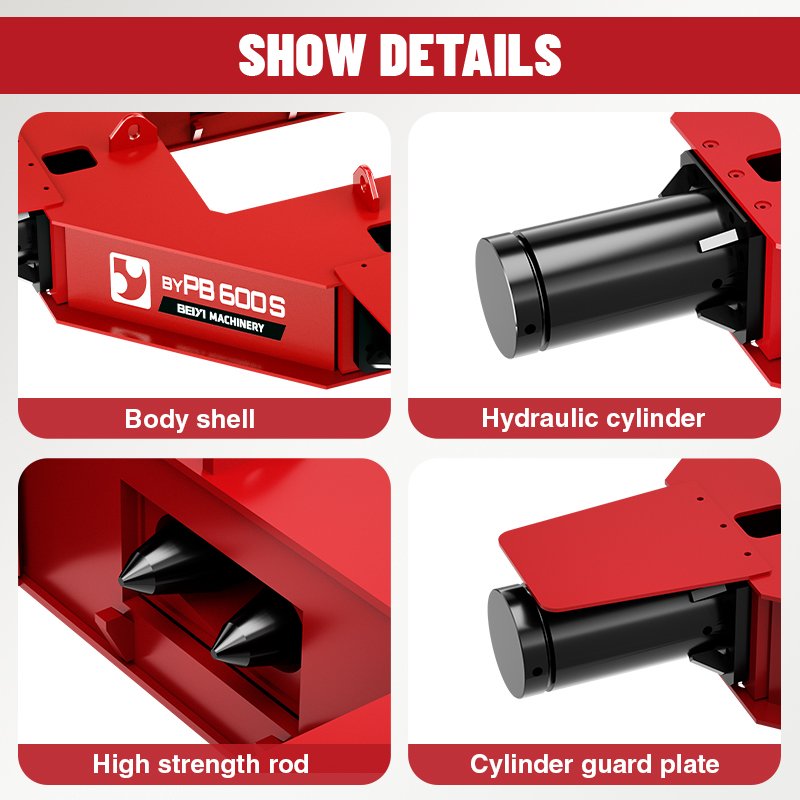

Enhanced Protection Design: Key structural details are reinforced to reduce damage under harsh job-site conditions.
-
Reliable Hydraulic Components: Key hydraulic parts use imported components to ensure stable performance and reliability.
-
Wear-Resistant Alloy Tools: The alloy cutting/breaking tips are manufactured with advanced processing techniques to extend service life.
Product Description
Square Pile Breaker Features
The hydraulic pile breaker is designed for pile head removal of cast-in-place piles and precast piles, and is widely used in high-speed railway bridge projects, industrial buildings, and civil foundation construction.
In practical applications:
- Round pile breakers are suitable for circular piles with diameters ranging from 350 mm to 650 mm.
- Square pile breakers are suitable for square piles with side lengths ranging from 350 mm to 650 mm.
The square pile breaker meets the requirements of large-scale foundation construction projects, providing stable and controlled pile head breaking performance.

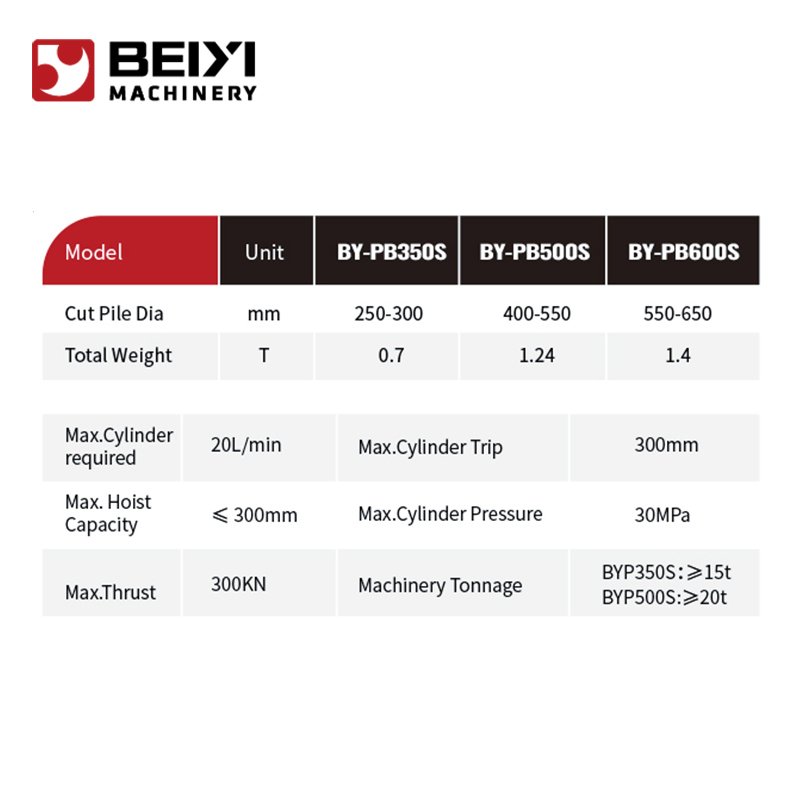

Performance Parameter
| Model | BY-PB350S | BY-PB500S | BY-PB600S |
| Applicable Pile Diameter (mm) | 250–300 | 400–550 | 550–650 |
| Suitable Excavator (t) | ≥ 15 | ≥ 20 | ≥ 20 |
| Weight (t) | 0.7 | 1.24 | 1.4 |
| Required Oil Flow (L/min) | 20 | 20 | 20 |
| Maximum Cylinder Stroke (mm) | 300 | 300 | 300 |
| Maximum Cylinder Pressure (MPa) | 30 | 30 | 30 |
| Maximum Thrust Force (kN) | 300 | 300 | 300 |
| Maximum Opening Width (mm) | ≤ 300 | ≤ 300 | ≤ 300 |

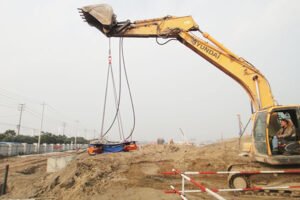

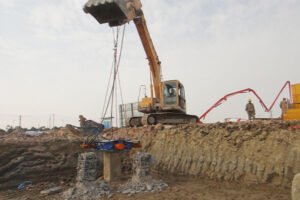

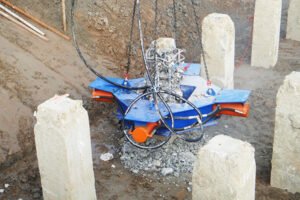

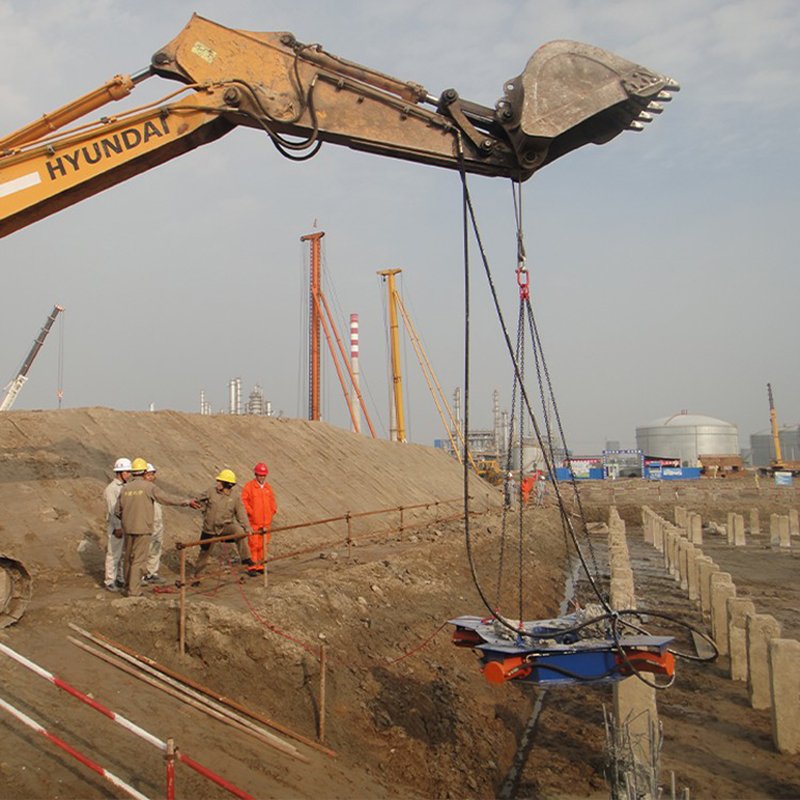

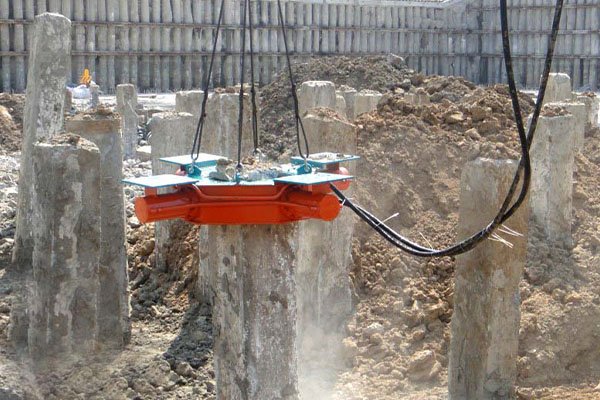

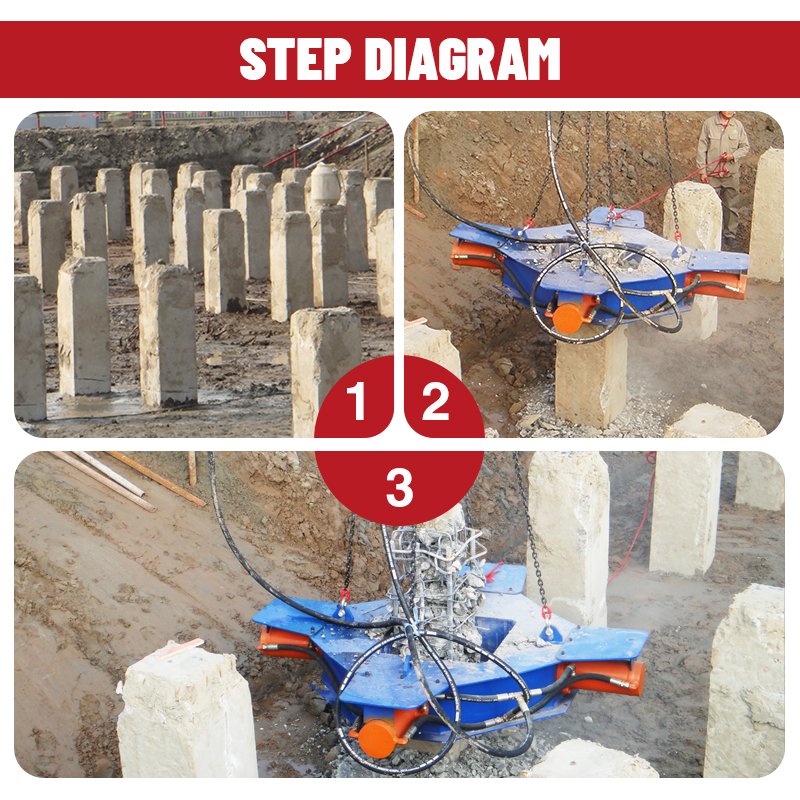

Hydraulic Square Pile Breaker Construction Case Video
Q: What is a Square Pile Breaker?
A: A Square Pile Breaker is a hydraulic device designed for trimming or breaking the heads of square reinforced concrete piles on construction sites. It ensures clean and controlled pile head removal to meet structural and safety requirements.
Q: What types of piles can hydraulic pile breakers handle?
A: Hydraulic pile breakers are suitable for both cast-in-place and precast reinforced concrete piles. Depending on the configuration, they can be used for circular (round) or square pile sections commonly found in foundation projects.
Q: What size ranges are available for circular and square pile breakers?
A:Circular pile breakers are typically suitable for pile diameters ranging from 350 mm and 650 mm.
Square pile breakers are designed for piles with side lengths between 350 mm and 650 mm, meeting the requirements of various large-scale foundation works.
Q: How long does it take to break a pile head using a hydraulic pile breaker?
A: The required time depends on pile size, concrete strength, and site conditions. Under normal working conditions, pile head breaking generally takes approximately 2–5 minutes per pile.
