Hydraulic Pulverizer
When tackling secondary demolition—such as breaking down building structures, apartment walls, or reinforced concrete beams—you need a tool that delivers strong crushing performance with controlled operation. This Hydraulic Pulverizer is designed for efficient concrete crushing and rebar separation. With enlarged serrated teeth and reinforced concave jaw profiles, it improves penetration and fragmentation, helping you pulverize reinforced concrete faster and more effectively.
-

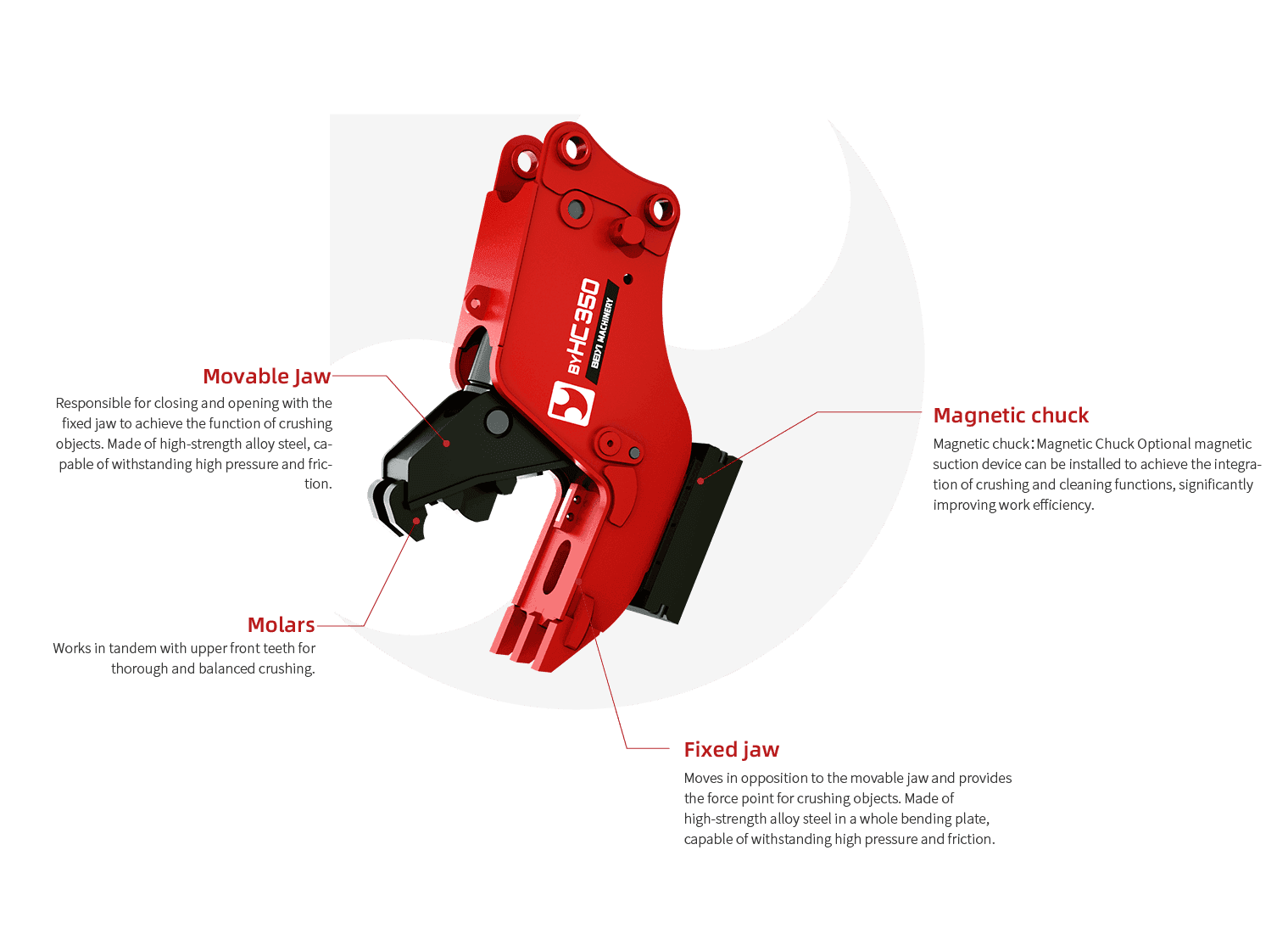

Powerful Jaw Action: Powered by the excavator’s hydraulic system, the cylinder drives the movable and fixed jaws to open and close for continuous crushing.
-
Optimized Tooth Profile: Enlarged serrations and reinforced concave jaw surfaces enhance gripping and crushing efficiency. The edge teeth assist in breaking concrete and improving overall fragmentation.
-
High Crushing Efficiency: Strong crushing capability enables rapid breakdown of reinforced concrete, improving demolition productivity.
Download File
Product Description
The hydraulic pulverizer is a secondary demolition attachment designed for concrete crushing and material separation. It features large serrated jaws with a reinforced concave tooth profile on the crushing surfaces. During operation, the side teeth apply compressive force to concrete structures, enabling efficient crushing and separation of concrete and embedded reinforcement.
Hydraulic pulverizers are widely used in building demolition projects, including the secondary demolition of beams, columns, and concrete structures in residential buildings, apartments, and industrial facilities, improving overall demolition efficiency and material handling.
Product Parameters
| Model | Weight (kg) | Overall Length (mm) | Maximum Opening Width (mm) | Crushing Force (kN) | Maximum Operating Pressure (MPa) | Suitable Excavator (t) |
| BY-HC60 | 395 | 1200 | 415 | 50 | 26 | 4–8 |
| BY-HC120 | 730 | 1400 | 542 | 60 | 32 | 8–15 |
| BY-HC150 | 1000 | 1500 | 650 | 60 | 32 | 12–18 |
| BY-HC200 | 1520 | 1800 | 760 | 79 | 34 | 18–25 |
| BY-HC300 | 2100 | 1950 | 1075 | 100 | 34 | 25–45 |
