Hydraulic Magnet

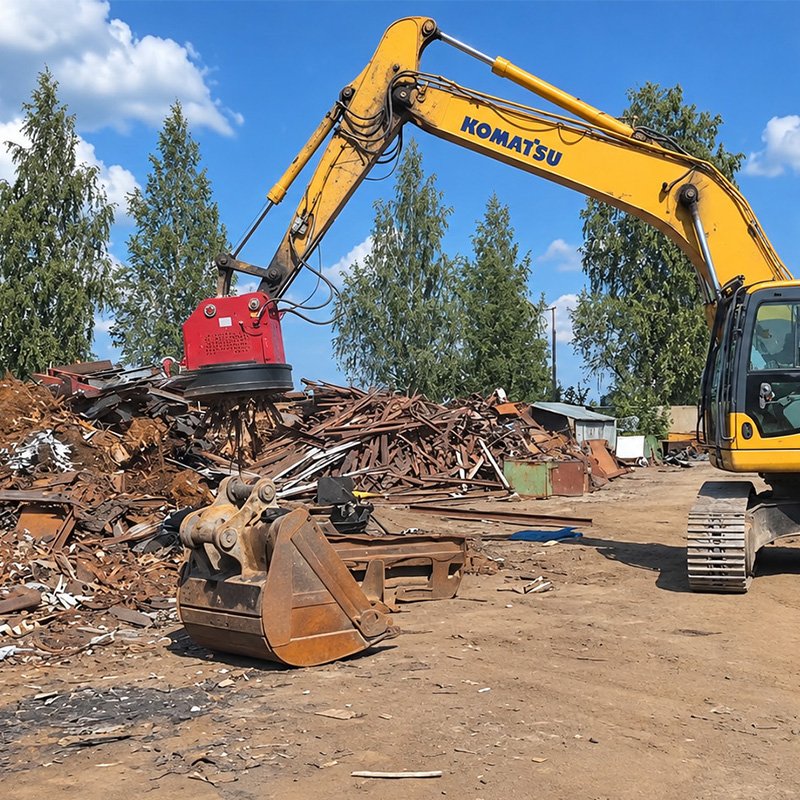

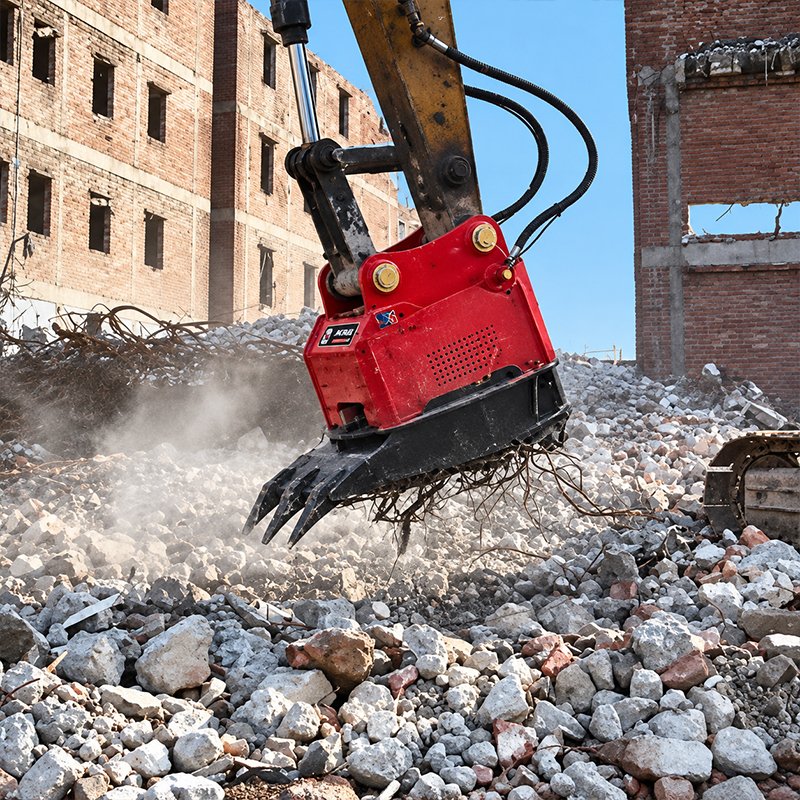

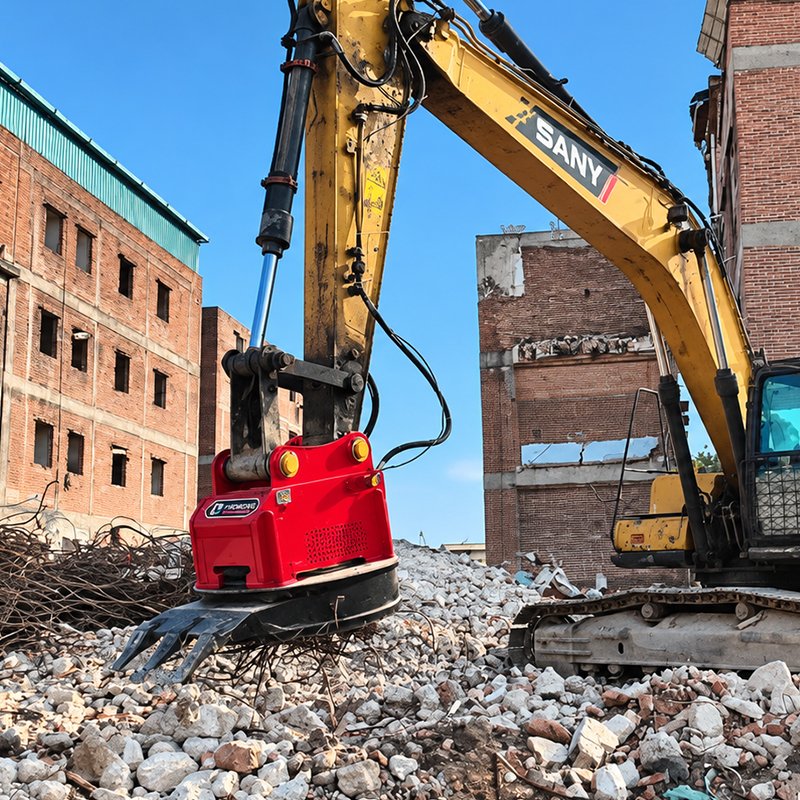

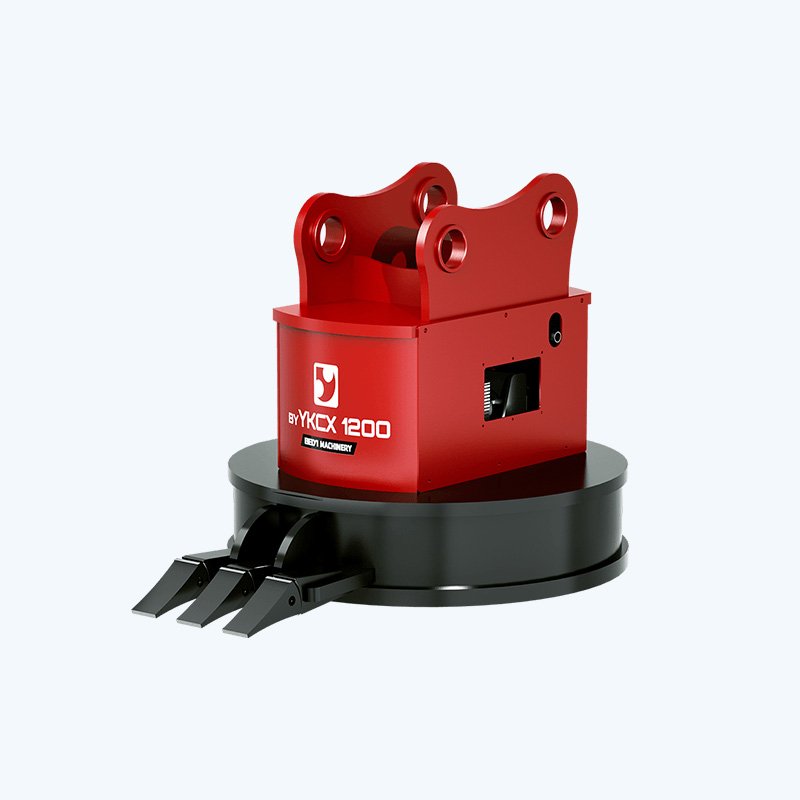

If you work in machinery manufacturing, construction, or scrap recycling and need a reliable way to lift and handle ferrous metals, our Excavator Magnet Lift with Claw is a practical solution. This hydraulic-powered magnet system uses a hydraulic motor to generate electricity and energize the magnet, providing strong magnetic lifting force for secure and efficient handling. It offers strong holding force, stable operation, and easy control.
Features
-
Durable Magnet Plate & Wide Working Range: The magnet plate is made from wear-resistant, heat-resistant materials, featuring a large opening and a wide grabbing range.
-

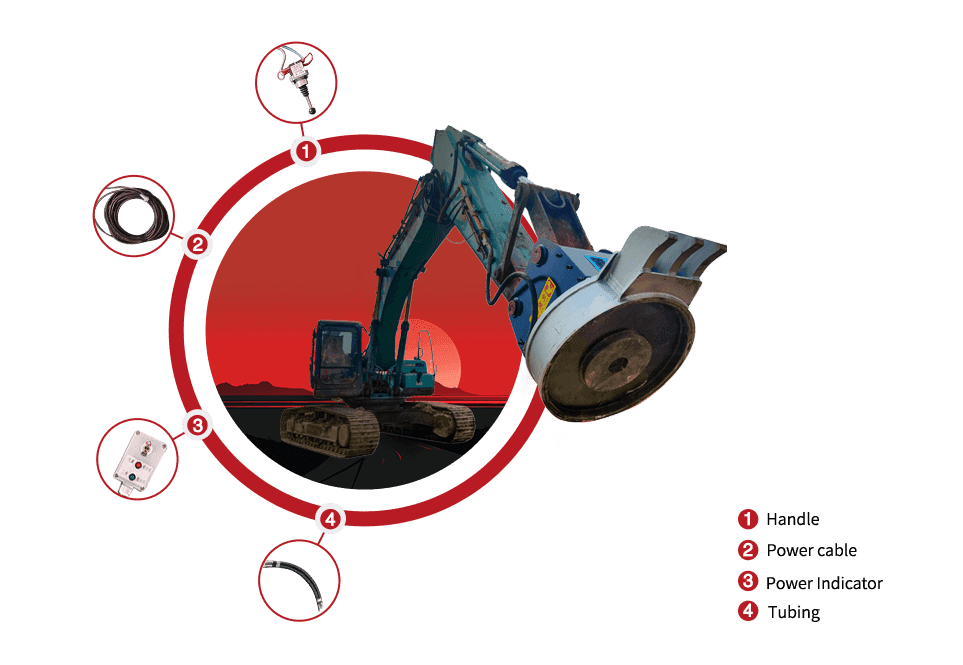

Easy Hydraulic Connection: Compatible with standard breaker hydraulic lines. A single (one-way) line is sufficient. The return port is fixed, so there is no need to connect an additional return line to the excavator tank.
-
Remote Control Demagnetization: Remote control with receiver box enables safe, convenient, and fast demagnetization.
Product Description

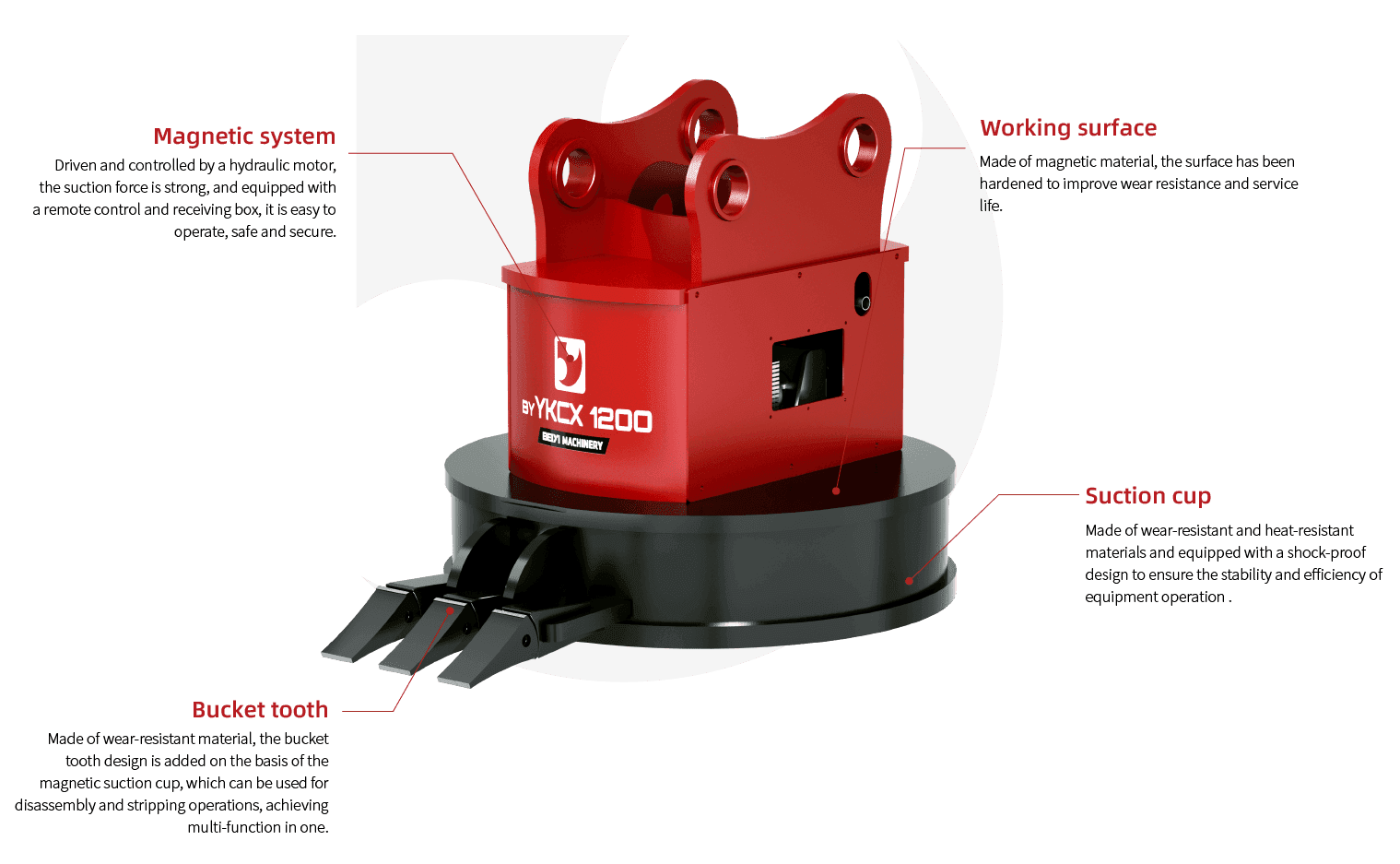

Hydraulic Magnet Features
- Durable magnetic plate design
The magnetic plate is manufactured from wear-resistant and heat-resistant materials, featuring a large contact surface and wide lifting coverage for efficient handling of ferrous materials. - Compatible hydraulic connection
The system can be connected directly to the excavator’s standard breaker hydraulic line. A single-direction hydraulic circuit is sufficient, with no additional hydraulic modification required. - Independent return oil configuration
Equipped with a fixed return oil port, eliminating the need for a separate return line to the excavator’s hydraulic tank. - Safe and convenient demagnetization control
Supplied with a wireless remote controller and receiver, enabling fast and reliable magnet on/off control for safe operation.
Hydraulic Magnet Parameters Parameter
| Model | Unit | BY-LCX1000 | BY-LCX1100 | BY-LCX1200 | BY-LCX1300 | BY-LCX1400 | BY-LCX1500 |
| Magnet Diameter | mm | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 |
| Magnet Weight | kg | 880 | 1050 | 1292 | 1626 | 1800 | 2110 |
| Rated Lifting Capacity (Steel Plate) | kg | 5000 | 6000 | 7000 | 8000 | 9000 | 9000–10000 |
| Rated Lifting Capacity (Steel Ingot) | kg | 800 | 900 | 1200 | 1400 | 1500 | 1500–1900 |
| Rated Lifting Capacity (Steel Scrap) | kg | 400 | 450 | 600 | 700 | 800 | 900–1000 |
| Suitable Excavator | t | 15–20 | 20–30 | 20–30 | 20–30 | 25–35 | 25–45 |
| Magnet Power | kW | 4.2 | 8 | 8.4 | 8.5 | 10 | 11.5 |
| Generator Power | kW | 10 | 15 | 15 | 15 | 15 | 15 / 24 |
| Control Cabinet Current | A | 190 | 190 | 190 | 190 | 190 | 190 |

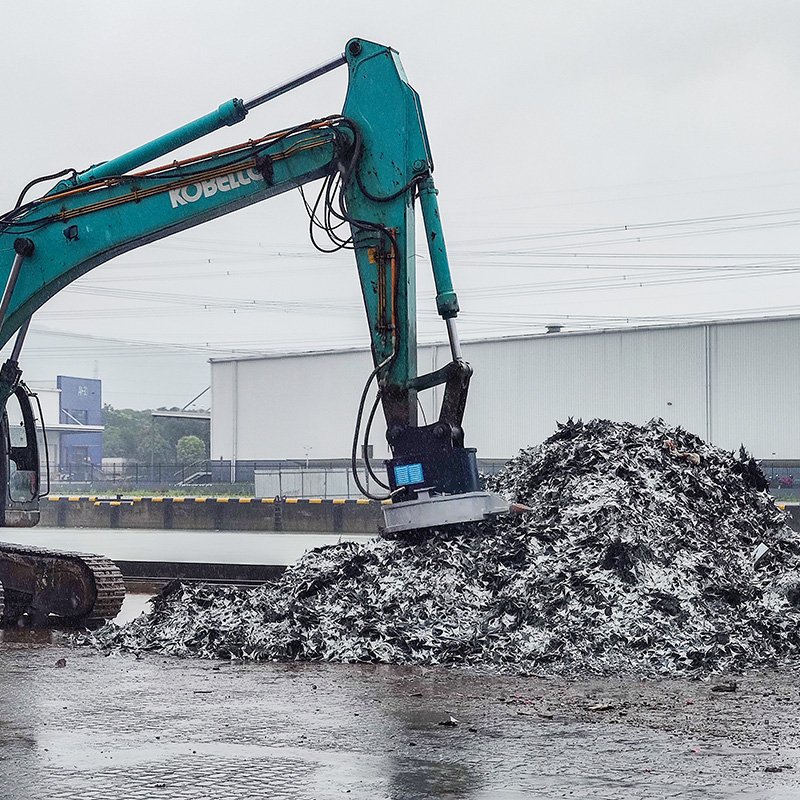

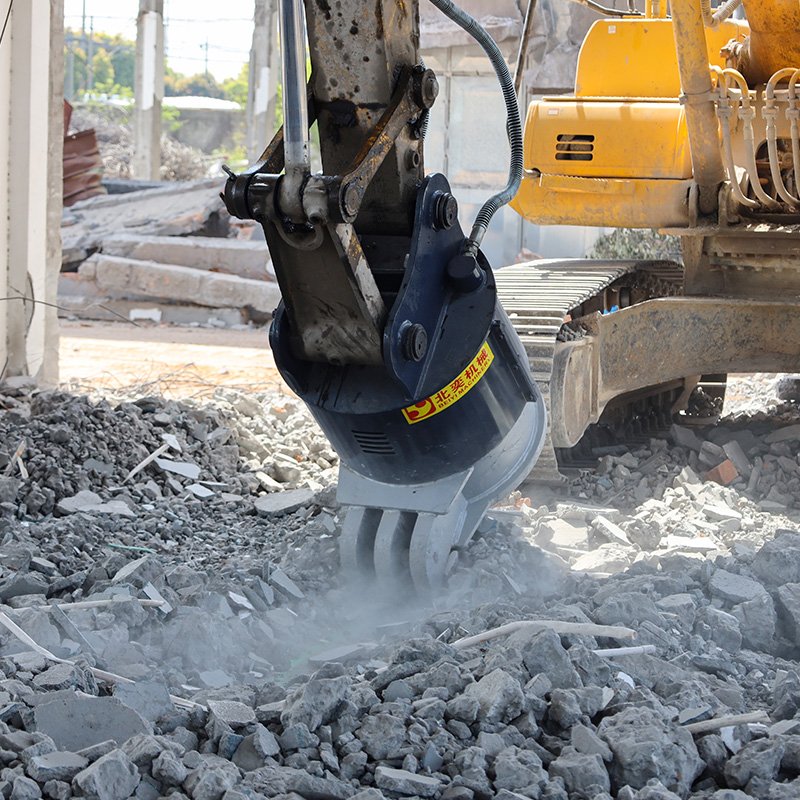

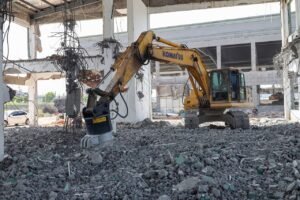

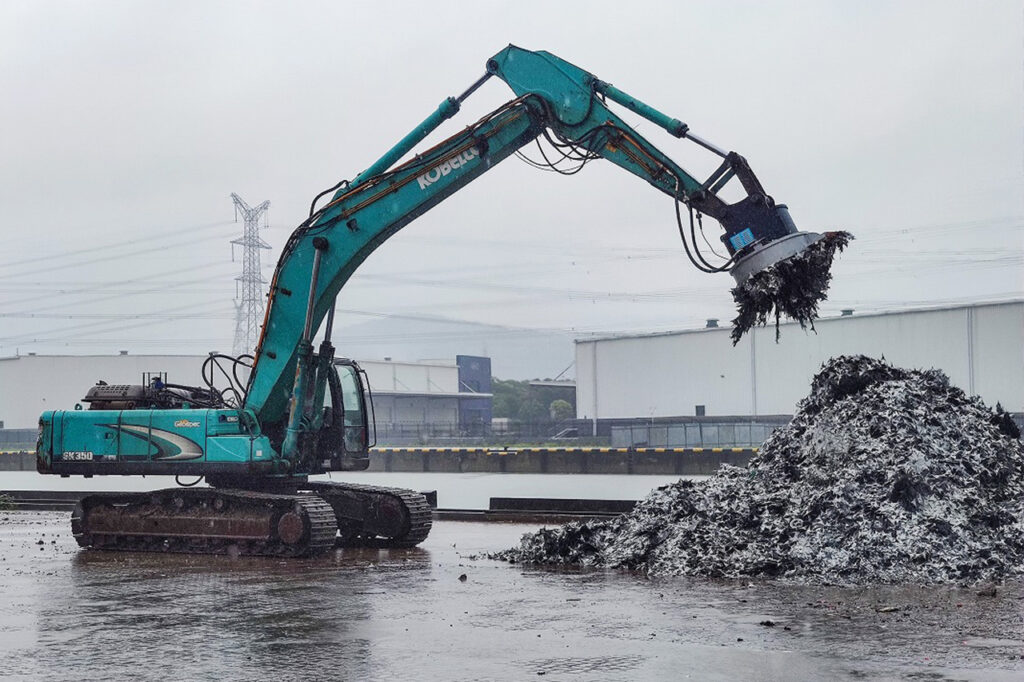

Hydraulic Magnet Construction Case Video
