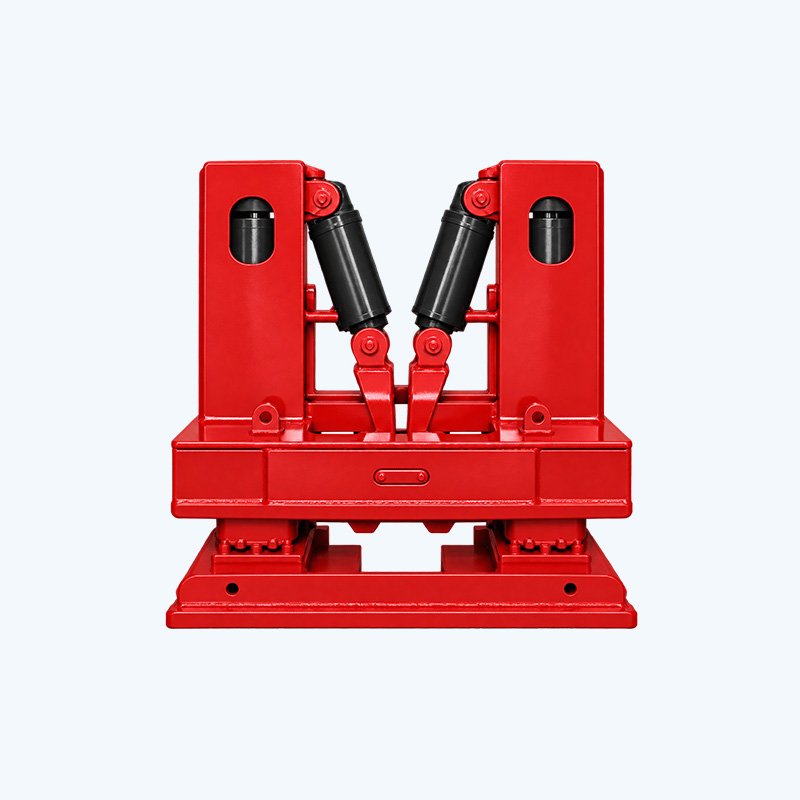

H-Beam Pile Extractor（up-right）

H-Section Steel Pile Extractor Features

1. High-efficiency pile extraction
   Equipped with a double-acting clamping hydraulic cylinder, the machine enables pile extraction without pre-drilled holes and is suitable for H-section steel piles with lengths of up to 30 meters.
2. Flexible configuration and wide application
   • Integrated / detachable structure allows easy lifting and simple on-site operation.
   • The adjustable clamping system is compatible with 300×300 mm, 300×400 mm, and 400×400 mm H-section steel piles (custom sizes available), reducing the need for frequent equipment replacement.
3. Easy operation and high safety
   • Wireless remote control operation requires only two operators to perform pile gripping, alignment, and extraction, keeping personnel away from hazardous working areas.
   • Hydraulic clamping combined with smooth lifting minimizes damage to the pile body, allowing reuse of steel piles and helping to reduce overall construction costs.

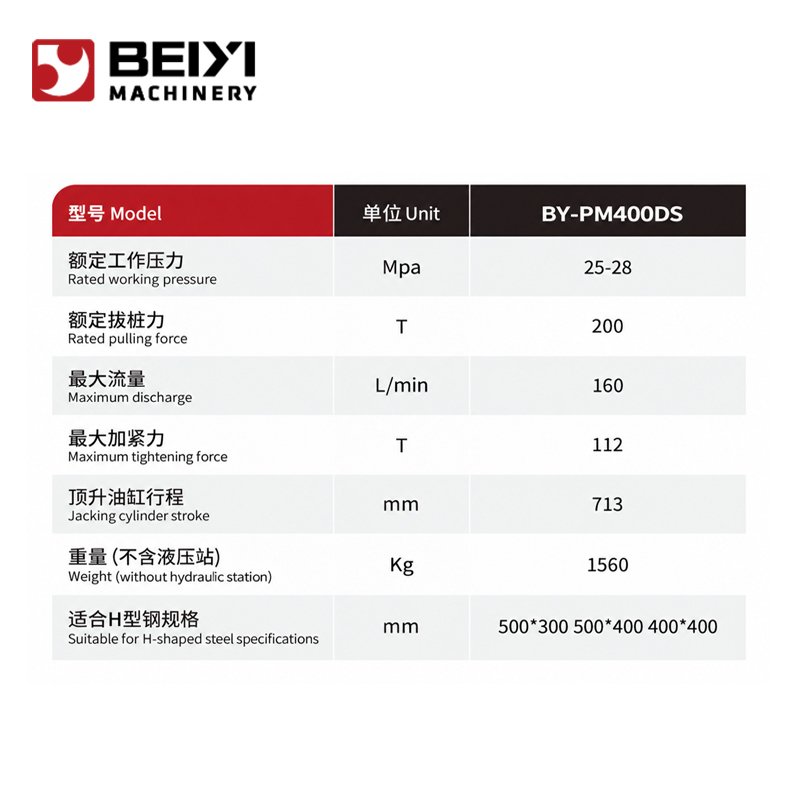

Performance Parameter
