Double Cylinder Hydraulic Pulverizer
When your project requires crushing reinforced concrete and cutting steel rebar simultaneously, this double-cylinder hydraulic pulverizer delivers the power and efficiency you need.
Equipped with a reinforced tong body, dual hydraulic cylinders, and two synchronized movable jaws, it provides powerful and stable crushing force — allowing you to complete demanding demolition work faster and more efficiently.

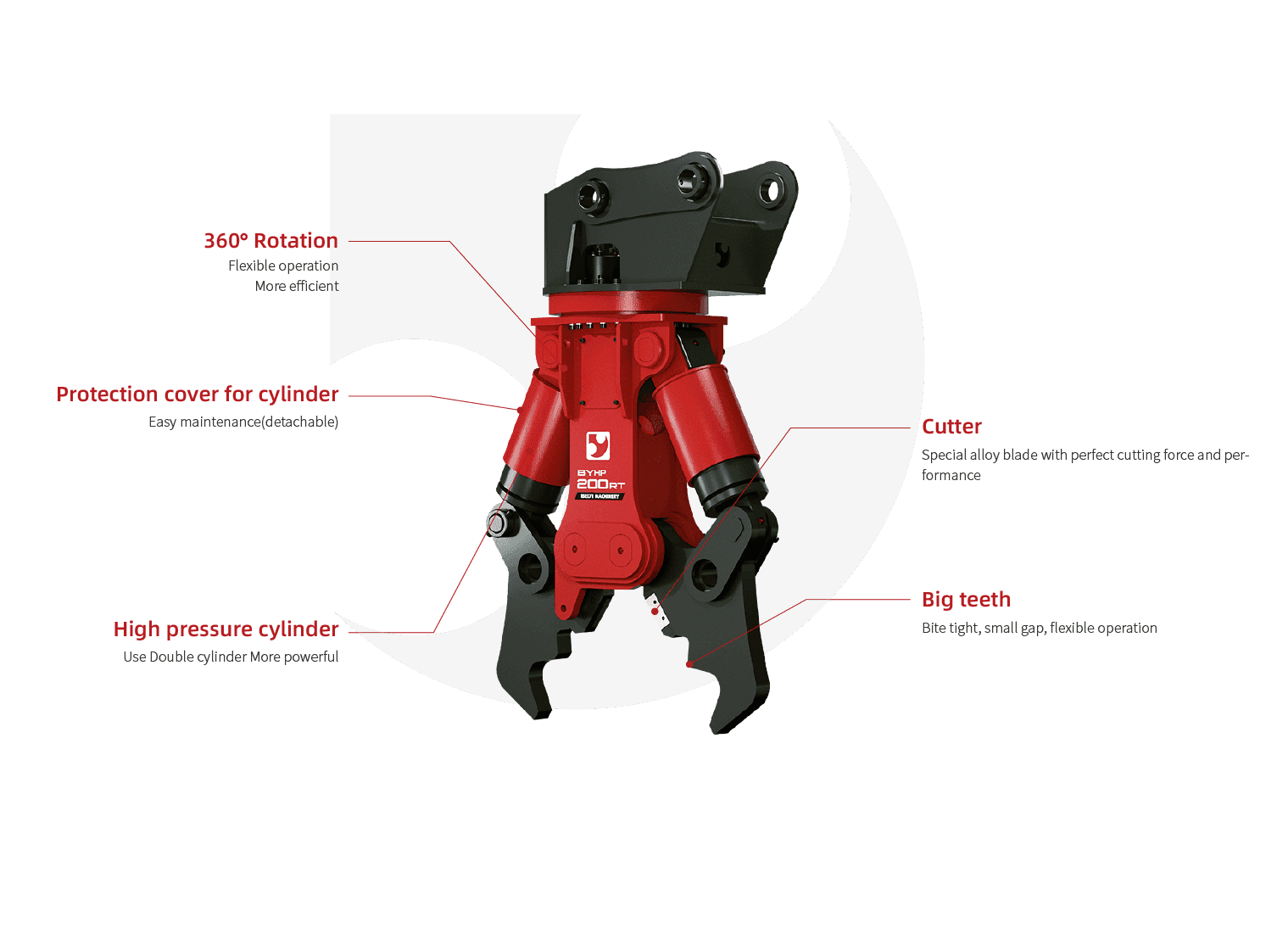

Features
-
Upgraded structural design improves overall durability and construction efficiency
-
Simultaneous concrete crushing and steel bar cutting in one operation
-
High-strength alloy blades ensure excellent cutting performance and long service life
-
Dual hydraulic cylinders provide stronger shearing force and enhanced durability
-
360° hydraulic rotation for flexible and precise operation
Download File
Product Description
Product Features
- The double cylinder hydraulic pulverizer is an optimized demolition attachment developed based on the structure of conventional hydraulic concrete pulverizers. Designed for secondary demolition, it effectively improves overall working efficiency.
- The cutting area is equipped with high-strength alloy blades, providing stable and powerful cutting performance, suitable for the crushing and processing of reinforced concrete structures.
- Featuring a double hydraulic cylinder drive system, the attachment delivers higher output force with a robust and durable structure, making it well suited for heavy-duty applications.
- Equipped with a 360° hydraulic rotation system, it offers flexible operation, precise positioning, and efficient multi-angle working capability.
Applications
Suitable for crushing concrete, bricks, and other construction materials, the double cylinder hydraulic pulverizer is widely used in the demolition of bridges, buildings, and other large structural projects.
Performance Parameter
| Model | Opening (mm) | Crushing Depth (mm) | Recommended Excavator (ton) | Operating Weight (ton) | Max. Operating Pressure (MPa) | Blade Length (mm) | Tip Cutting Force (kN) | Main Cutting Force (kN) |
| BYDS215 | 580 | 480 | 12–20 | 1.68 | 30 | 320+208 | 1185 | 1320 |
| BYDS295 | 740 | 550 | 20–30 | 2.98 | 31.5 | 350+260 | 1185 | 1565 |
| BYDS315 | 740 | 550 | 20–35 | 3.05 | 32 | 350+260 | 1250 | 1820 |
| BYDS395 | 790 | 650 | 33–45 | 4.4 | 32 | 350+360 | 1445 | 2485 |

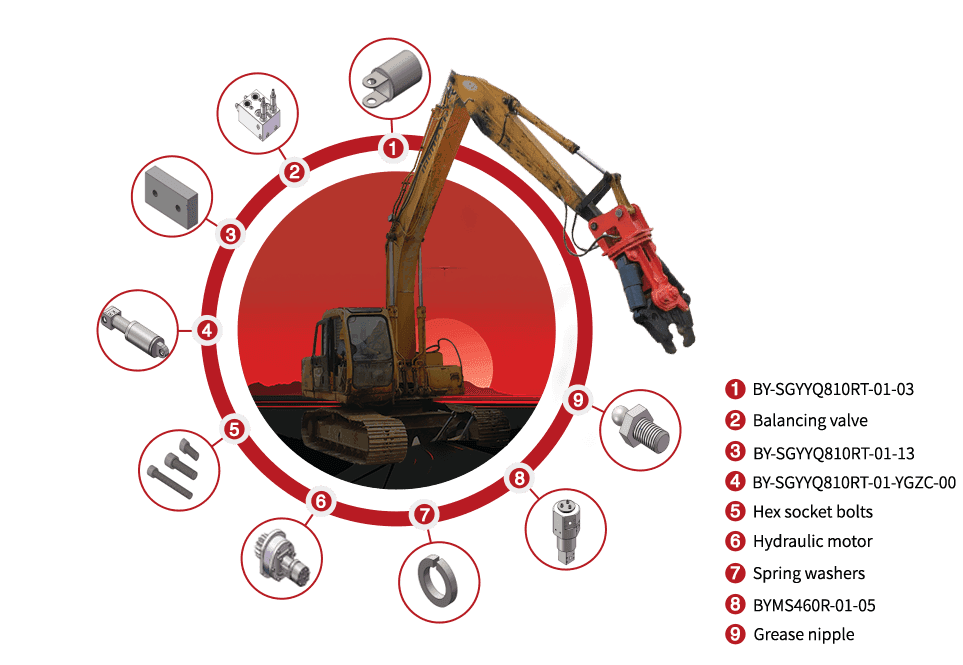

We offer a wide range of optional accessories to support different working conditions and project requirements.
