In pile removal, pipeline relocation, site clearance, and trench-supporting works for pipeline construction, pile extractors are used to remove piles and create workable conditions for pipeline laying, trench excavation, and utility installation. Through hydraulic clamping and lifting mechanisms, pile extractors can remove sheet piles, precast piles, steel pipe piles, and similar pile types. In combined pile and pipeline construction scenarios, they help connect each stage of the process smoothly and are suitable for municipal utility networks, road reconstruction, and underground pipeline projects.
1. Preparations Before Pile Extractor Operation
Before construction begins, the pile extractor model should be selected and the hydraulic system adjusted according to pile material, pile length, embedment depth, and ground conditions. The distribution and removal sequence of piles should be clearly identified, while the alignment, depth, and range of existing underground pipelines on site should also be reviewed. The boundaries between the pile extraction area and the pipeline construction area must be defined. Control lines for pile removal should be marked, and the trench excavation line and pipeline laying axis should be checked to prevent pile extraction work from affecting pipeline position or trench formation.
2. Operating Procedure of the Pile Extractor for Pile Removal

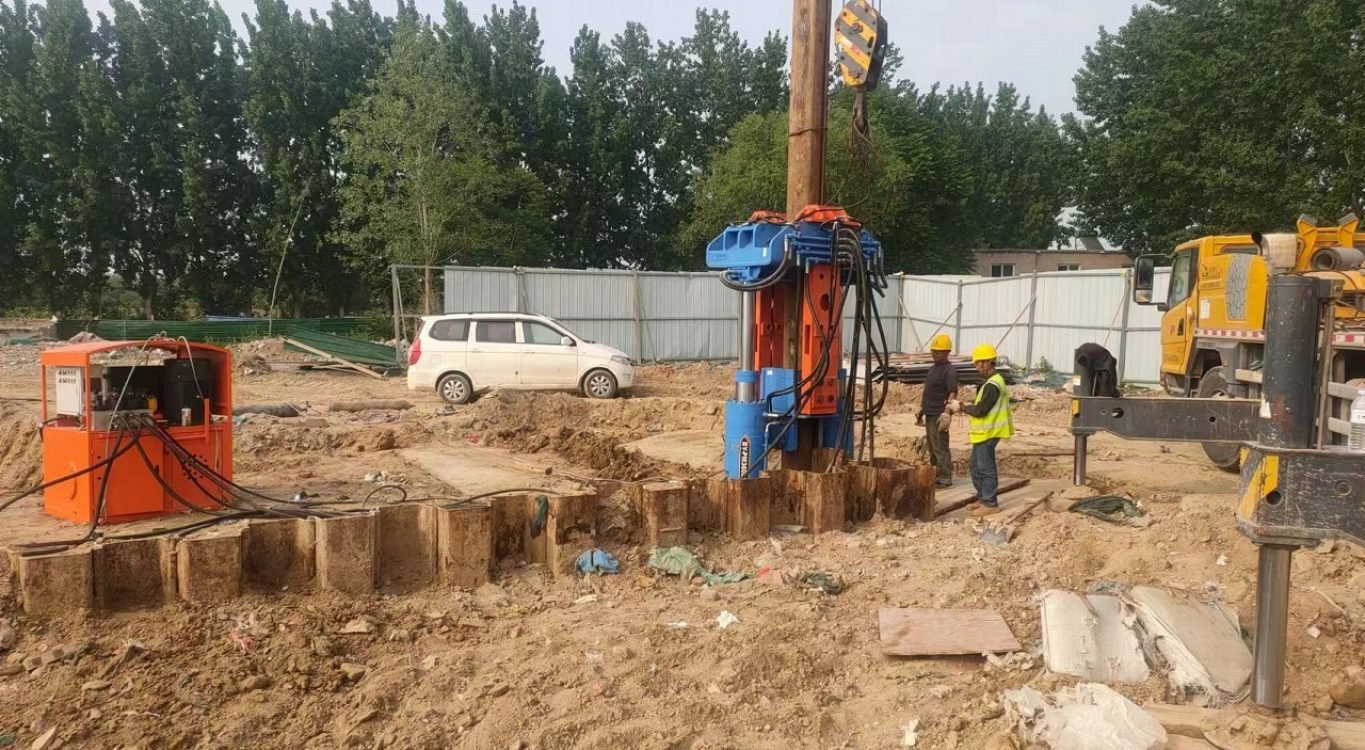

After the pile extractor is positioned, it clamps and secures the pile, then applies continuous upward force through the hydraulic system to gradually separate the pile from the surrounding soil. The operation follows a staged and sequential method. For deeply embedded piles, intermittent lifting is adopted to keep the force evenly distributed along the pile body. Once the pile becomes loose, lifting continues until it is fully extracted from the ground. After each pile is removed, the resulting hole should be backfilled to maintain ground stability and provide a level working surface for subsequent pipeline construction.
3. Coordination Scheme Between Pile Extractor Operation and Pipeline Construction
Before trench excavation begins, the pile extractor can be used to remove piles that interfere with the trench alignment, allowing excavation to proceed smoothly. If old piles or temporary piles exist along the planned pipeline route, the pile extractor can clear these obstructions according to the pipeline axis, ensuring smooth pipe installation, joint connection, and slope control. In utility relocation projects, the pile extractor can first remove retaining piles and support piles to free up working space for pipeline lifting, positioning, and burial. In areas with multiple piles, a staged approach of pile extraction and phased pipeline installation can be adopted so that both processes are carried out in an orderly sequence.
4. Key Points for Quality Control in Pile Extractor Construction
During construction, the extraction direction and force should be controlled to keep the pile moving vertically upward and to minimize disturbance to the surrounding soil. Piles must be removed strictly according to the planned sequence and route to avoid deviation that could affect pipeline positioning. After extraction is completed, the backfilled pile holes should be checked for sufficient compaction so that the ground condition can meet the load requirements of the pipeline works. Records should be kept of pile removal locations, pile parameters, and site restoration conditions to provide verifiable data for pipeline construction and to ensure the stability of the pipeline foundation and surrounding structures.
5. Applicable Scenarios and Construction Value of Pile Extractors
Pile extractors can meet the removal needs of various pile types and play an important role in combined pile-and-pipeline works, old pile clearance, and utility relocation projects. By completing pile removal in an organized manner, they create suitable conditions for trench excavation, pipeline burial, and manhole construction, allowing pile-related processes and pipeline works to form an integrated construction system. The use of pile extractors helps optimize the sequencing of crossing operations between piles and pipelines, improve site utilization, and support a more合理 and stable layout of underground structures and pipeline systems.
