In the construction of bridges, high-speed railways, high-rise buildings, ports, wharves and large-scale municipal works, pile foundations bear the entire structural load. As the scale of modern infrastructure keeps expanding, projects typically require the construction of a large number of cast-in-place concrete piles. Once pile foundation work is completed, an unavoidable question arises: how to break the pile heads quickly, safely and with high quality?

Traditional manual pile breaking can no longer meet the demands of modern construction. Facing large pile quantities, tight schedules and rising labor costs, more and more contractors are turning to mechanized solutions — the excavator-mounted hydraulic round pile breaker . BeiYi Machinery specializes in R&D and manufacturing of excavator attachments, providing efficient pile foundation treatment equipment solutions for global construction projects.

1. Pain Points of Pile-Head Breaking in Large-Scale Foundation Works

When your project requires hundreds or even thousands of concrete piles, pile-head treatment becomes an unavoidable bottleneck. After pouring, the top portion of the pile concrete fails to meet design requirements and must be broken off to expose intact reinforcement for subsequent cap construction. Traditional methods mostly rely on manual pneumatic breakers, small crushing tools and manual cleanup — acceptable for small jobs, but in large projects they expose three hard problems:

• Low efficiency: one pile needs multiple workers for extended periods; pile-head treatment often holds back overall progress.
• High labor cost: sustained large crews, and rising labor rates directly inflate project cost.
• Hard-to-control quality: inconsistent breaking height, easy damage to main bars, need for rework — especially problematic for high-standard works like bridges and high-speed rail.

2. Who Is BeiYi Machinery — Product & Company Background

Know the maker before you choose the machine. BeiYi Machinery is Wuxi BeiYi Excavator Parts Factory, located in Shuangmiao Industrial Park A, Luoshe Town, Huishan District, Wuxi, Jiangsu.  the company runs a ~10,000 ㎡ plant, 120 employees and 200+ cooperative clients; its R&D team brings 20+ years of independent engineering experience . Products are certified under ISO9001, and hold national patents and EU EC certification, exported worldwide under a dual China-West certification system.

3. Hydraulic Round Pile Breaker — Principle, Modular Design & Real Site Conditions

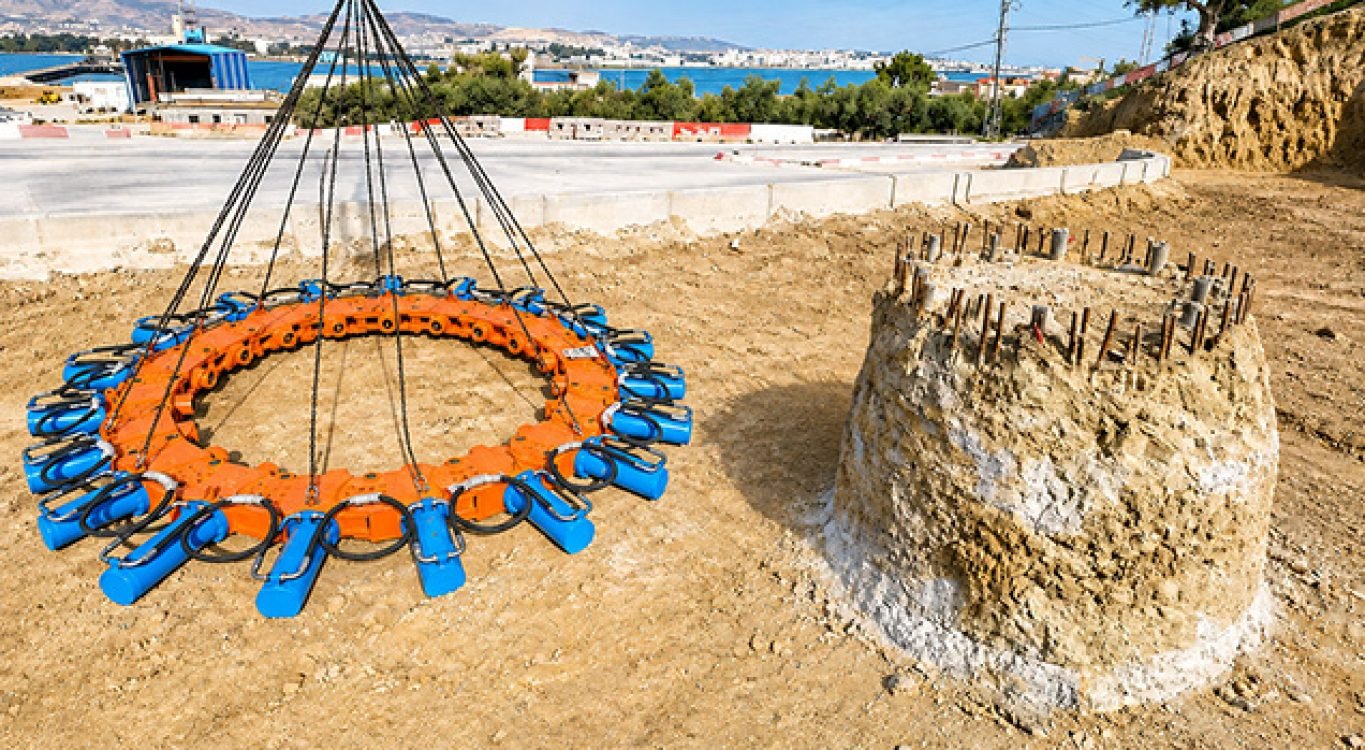

Unlike a hydraulic breaker’s single-point impact, the round pile breaker uses multiple hydraulic cylinders that surround the pile and apply uniform pressure simultaneously (a hugging action), making it better suited to circular bored piles, reinforced concrete piles and large-diameter foundation piles. Mounted on the excavator’s front end and powered by the excavator’s hydraulic system or a standalone pump station, it delivers mechanized pile-head breaking.

Three-step workflow:

• Step 1, select modules by pile diameter — pile diameters vary across bridge, high-speed rail and building projects; BeiYi’s modular design uses 4-18 modules in free combination covering 400-2500mm, customizable up to 3300mm for special cases.
• Step 2, quick positioning by excavator — move to the pile, align with the pile head, operate the hydraulic system; no complex rigging needed.
• Step 3, uniform hydraulic breaking — multiple cylinders press at once; compared with impact breaking it is faster, leaves a cleaner cut, reduces rebar damage and eases subsequent cap construction.

Module selection reference:

Key site parameters (from BeiYi product data):

Real site details (what determines whether you’ll use it smoothly):

• Mushroom-head piles (raised pile top): two-stage breaking — break the mushroom head first, then remove some modules to break the rest uniformly; for just a few piles, manually chip the mushroom head first.
• Uneven pile bottom: the module body is ~20-30 cm tall; dig deeper before clamping to reduce manual cleanup.
• Hard vs. easy piles: the chisel rod is special wear-resistant material; soft piles can yield thousands of breaks, hard piles about a hundred before replacement — about 30 minutes per change.
• Adding/removing a module takes ~30 minutes; use 68# hydraulic oil, filter and top up regularly.

Site tip: module count decides total hanging weight — e.g., 15 modules (≈6030 kg) need a 30-40 t excavator. Always confirm the allowed attachment weight with your excavator maker before finalizing the module combination, so you don’t end up ‘able to buy but unable to mount’.

4. Four Typical Site Solutions

Solution 1 — Efficient Pile Breaking for Bridge Foundations

Bridge works usually involve many piles, tight schedules, large diameters and high continuity demands. A viaduct pier zone broken manually may need several workers for days; with BeiYi’s hydraulic round pile breaker, the excavator handles multiple pile positions continuously, sharply cutting waiting time. Once pile heads are done, you move straight into rebar tying, cap and pier construction, shortening the overall cycle.

Solution 2 — Large-Scale Pile Treatment for High-Speed Rail

High-speed rail foundation works usually involve huge pile counts, strict standards and precise schedule control. Traditional manual methods cause delays, more crew and hard quality control; BeiYi delivers high-efficiency continuous work, uniform hugging force and lower dependence on heavy manual labor, improving safety.

Solution 3 — Pile-Head Treatment for High-Rise Building Foundations

Urban high-rises mostly use bored piles and deep foundations, with complex underground space and schedule pressure. The excavator-mounted hydraulic breaker goes straight into the work zone, cutting crew size and labor intensity and raising underground foundation efficiency, helping builders finish the foundation stage faster.

Solution 4 — Ports and Large-Scale Infrastructure

Ports, wharves and industrial foundations often use many large-diameter concrete piles, with heavy volume and high continuity. BeiYi’s hydraulic round pile breaker meets bulk pile-head breaking, fast excavator mobility and varied pile-diameter adaptation, providing a stable, reliable mechanized solution for large-scale infrastructure.

5. Why Contractors Choose BeiYi Hydraulic Round Pile Breaker

• Professionally matched to circular pile conditions: designed for circular concrete piles, better than traditional crushing for whole pile-head treatment.
• Attachment form raises equipment utilization: no need to buy dedicated large machines; use your existing excavator.
• Modular design adapts to different diameters: bridge, HSR and building piles can be configured flexibly.
• Higher efficiency, lower overall cost: fewer workers, more work per unit time.

Put traditional methods and BeiYi’s breaker in one table:

Real cases are more convincing: a Romanian client chose BeiYi’s 11-module breaker for 600-1200mm piles with a 30 t excavator, cutting overall cost 20-30% versus traditional methods; domestically, BeiYi partnered with a unit of China Railway Construction Corporation (CRCC) on a pile extraction project with on-site technical support. These are not PPT specs — they are real job sites.

6. How to Select the Right Breaker for You

When choosing equipment, focus on three points:

• Pile diameter range: confirm the on-site diameter and pick the model from the module table (4-15 modules cover 400-2500mm; customize beyond).
• Excavator tonnage: confirm the carrier weight, hydraulic flow and working pressure match the equipment.
• Project scale: many piles, short schedule, continuous work — mechanized breaking delivers the highest value.

7. Conclusion

In modern infrastructure, pile-head breaking has become a key factor in construction efficiency. Facing massive circular concrete pile demand, traditional manual methods are being replaced by more efficient mechanized solutions. BeiYi’s hydraulic round pile breaker — with quick excavator mounting, uniform hydraulic breaking, modular adaptation and high efficiency — provides professional pile foundation treatment for bridges, high-speed rail, building foundations and large projects. If your project is looking for a faster, safer, more economical way to break pile heads, the hydraulic round pile breaker is the ideal choice for modern foundation construction.

Frequently Asked Questions (FAQ)

Q1: Which sites is the hydraulic round pile breaker suitable for?

Mainly for works needing bulk treatment of circular concrete piles: bridge foundations, high-speed rail pile projects, high-rise building foundations, port/wharf works and municipal infrastructure.

Q2: What are its advantages over a hydraulic breaker?

A hydraulic breaker mainly crushes by single-point impact, while the round pile breaker applies uniform force via multiple cylinders surrounding the pile. Advantages: more uniform breaking, better for batch pile heads, less rebar damage, higher efficiency. For 800-1000mm piles, about 10 minutes per pile; BeiYi’s brochure notes as fast as 3 minutes per cement pile.

Q3: Can BeiYi’s round pile breaker match different pile diameters?

Yes. The modular design uses 4-18 modules in free combination covering 400-2500mm (custom 3300mm); adding or removing a module on site takes about 30 minutes, with no whole-machine swap, so one unit follows the project end to end.

If your project is looking for a faster, safer and more cost-effective method of pile head removal, why not contact the Beiyi Machinery team directly to receive a free site-specific solution?
