During the final stage of bored pile, precast pile, and other pile foundation projects, pile head removal is a key process connecting the pile foundation to the pile cap construction. With its modular structure and synchronized hydraulic operation, the circular pile breaker is designed for breaking round-section pile heads. It provides a complete solution covering pre-construction preparation, on-site operation, and final cleanup, meeting pile head removal needs in building construction, bridge works, municipal engineering, and other applications.
1. Core Adaptation Logic of Circular Pile Breaker Operation
The circular pile breaker uses multiple hydraulic modules arranged around the pile body. Driven by hydraulic cylinders, the chisels apply synchronized pressure so that the pile head concrete separates along the preset section. This working method matches the force characteristics of round piles. The equipment can adjust the number of modules according to pile diameter, covering common round pile sizes without requiring extra pretreatment of the pile body. It is suitable for concrete pile heads with strength grades from C30 to C50, reduces manual intervention, and allows pile breaking operations to match the overall pace of pile foundation construction.
2. Complete Pile Head Removal Solution Process
(1) Pre-Construction Preparation
Before operation, clean the soil around the pile head to expose the full pile body. Use measuring instruments to mark the designed pile top elevation, and draw the breaking control line on the pile body. At the same time, inspect the hydraulic system, module connection parts, and chisel condition of the pile breaker to confirm there is no leakage and that all connections are secure. According to the pile diameter, complete the module combination, connect the equipment to the excavator or other carrier, and test the hydraulic pressure and module synchronization to prepare for formal operation.
(2) Key Points of Pile Head Pretreatment
Along the breaking control line, use cutting equipment to make a circular cut, with the depth controlled within the concrete cover range to avoid touching the main reinforcement bars. After cutting, manually remove laitance, loose concrete, and debris from the pile head surface, and mark the position of the main rebars. This ensures that the reinforcement is not disturbed during the following breaking process, while also making the crushing force more even and reducing the risk of cracks in the pile body.
(3) On-Site Operation Steps of the Circular Pile Breaker

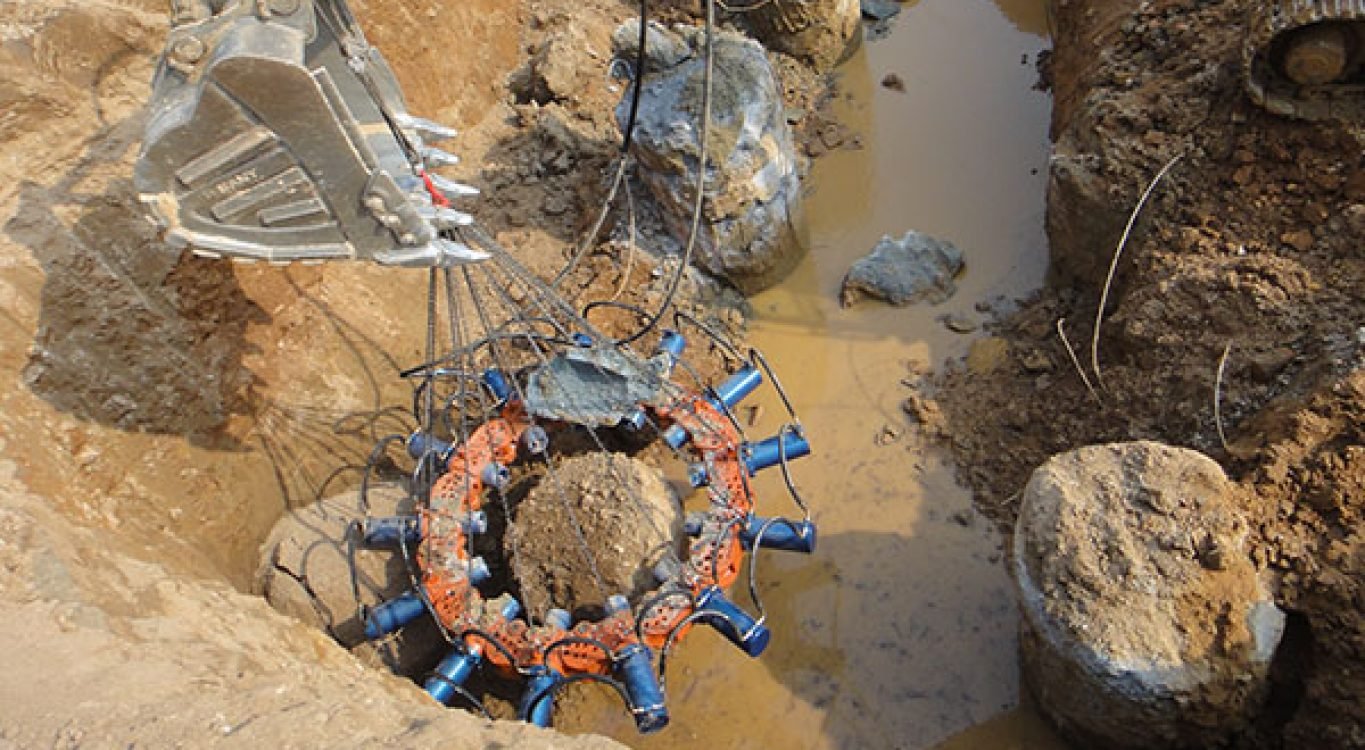

1. Equipment Positioning:
Place the pile breaker steadily around the pile head and adjust the vertical alignment so that each module fits the pile body evenly, avoiding uneven force on one side.
2. Step-by-Step Pressurized Breaking:
Start the hydraulic system and gradually increase the pressure. First break the upper concrete of the pile head, then continue toward the breaking control line. During operation, keep all chisels advancing consistently so that concrete blocks peel off in an orderly manner. When encountering areas with dense reinforcement, adjust the breaking position and process them step by step while avoiding damage to the main rebars.
3. Pile Head Separation:
After the concrete around the breaking control line becomes loose, continue applying even pressure so that the pile head separates smoothly from the pile body, avoiding severe impact that could damage the pile shaft.
(4) Final Cleanup and Quality Control
After the pile head is separated, remove the remaining concrete debris and slurry from the pile top, and check the pile top elevation and flatness to ensure they meet design requirements. Organize the exposed reinforcement bars and clean off any attached concrete to keep the rebars in good condition. During the operation, record the breaking parameters for each pile and form a construction log for later inspection and acceptance.
3. Application Scenarios and Advantages of the Solution
This solution is suitable for round pile head removal in building foundations, bridge pile foundations, municipal pipeline projects, high-speed railway subgrade piles, and similar applications. It is especially suitable for job sites with dense pile groups and limited working space. Compared with traditional methods, the circular pile breaker reduces pile body damage through synchronized surrounding operation, while the modular design improves adaptability. The whole process can be standardized, reducing the impact of human factors on construction quality and allowing smooth integration into the overall pile foundation construction process.
4. Operation Precautions
During operation, strictly control the pressurization speed to avoid sudden pressure increases that may cause concrete to crack or burst. While the equipment is running, unrelated personnel must stay away from the working area, and operators should continuously observe both the equipment condition and the pile body. Regularly inspect the chisels and module connection parts, and promptly tighten or adjust any loose components to ensure stable operation. After pile breaking is completed, clean the site in time and keep the working area tidy to prepare for the following pile cap construction.
5. Conclusion
The circular pile breaker pile head removal solution is centered on the equipment’s operating characteristics and integrates pre-construction preparation, on-site work, and quality control into a standardized system for round piles. This solution aligns with pile foundation construction requirements and can adapt to pile head removal needs in different engineering scenarios. While protecting pile body integrity, it also makes pile head breaking more efficient and better coordinated with the overall construction schedule, making it a practical solution for the final stage of pile foundation works.
