In large-scale infrastructure projects such as bridges, high-rise buildings, and ports, pile foundation construction plays a critical role in ensuring structural stability.
Pile head removal, as the final stage of pile foundation works, directly affects overall construction quality and project progress. Traditional manual pile breaking methods rely on pneumatic tools and hydraulic hammers, which are time-consuming, labor-intensive, and may introduce quality risks.
The emergence of square pile breakers has significantly improved this situation, making them essential equipment in modern foundation engineering.
Structure and Working Principle of the Square Pile Breaker
The square pile breaker, also known as a fully hydraulic pile cutting machine, is specifically designed for cutting square pile heads.
Its main components include:
- Cutting frame
- Hydraulic cylinders
- Chisel rods
- Lifting chains
- Hydraulic hoses
The equipment adopts a modular structure design. By increasing or decreasing module numbers, it can adapt to different square pile dimensions.
The typical application range covers square piles from 250 mm to 650 mm, meeting most foundation construction requirements.
Working Principle
The system operates based on hydraulic drive technology.

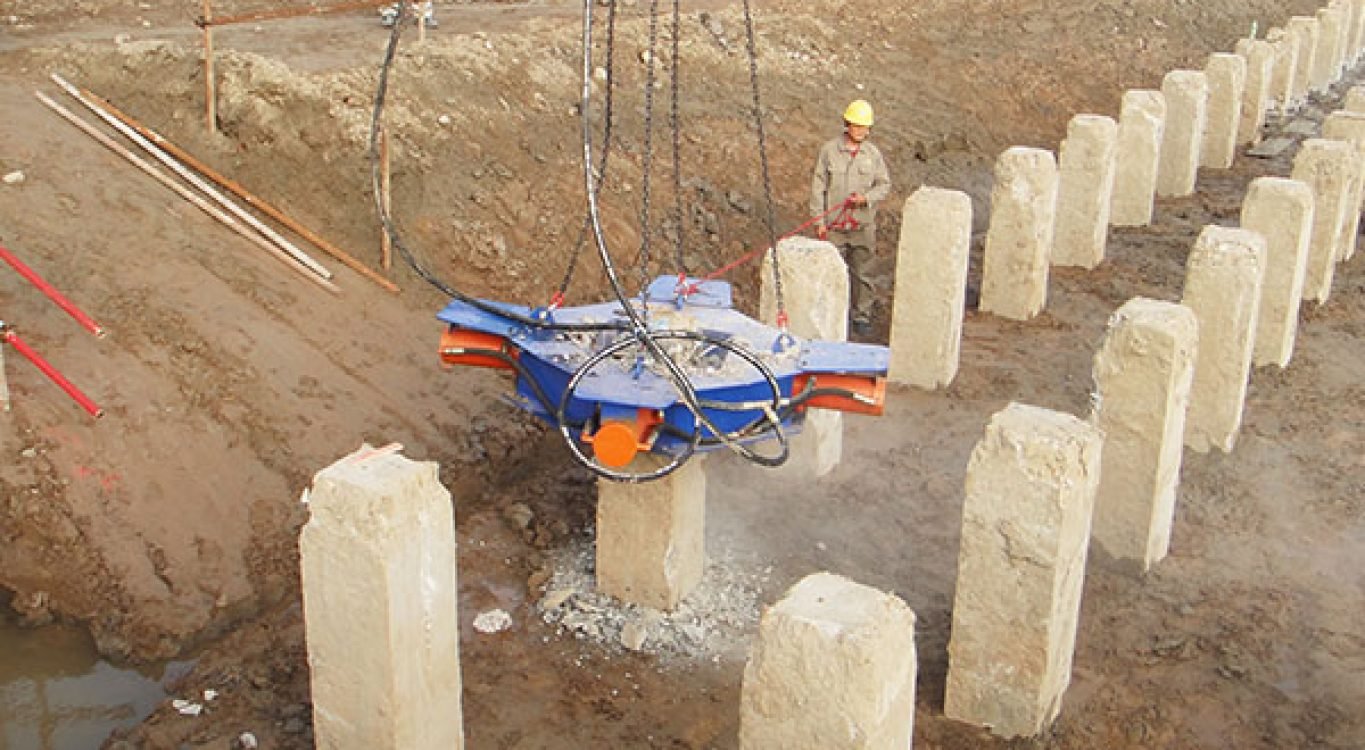

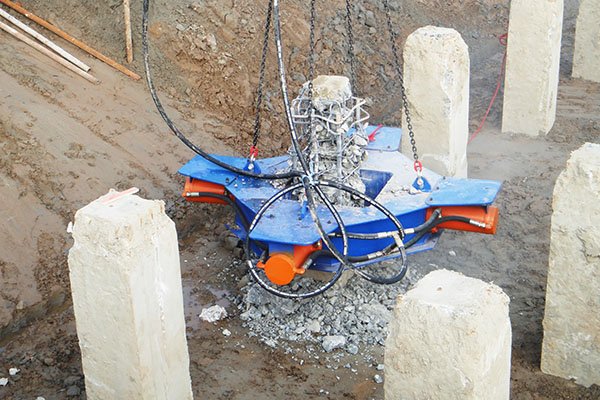

A power source provides high-pressure hydraulic oil simultaneously to multiple cylinders. The cylinders directly drive the chisel rods to apply uniform pressure to the pile body.

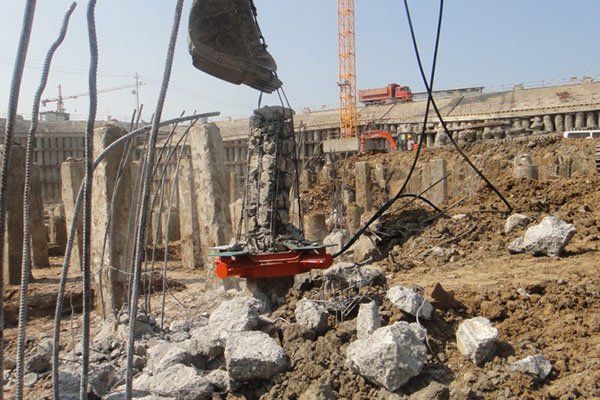

Through specially designed chisel head geometry, the concrete pile is fractured along a predetermined plane, enabling rapid and controlled pile head removal.
Compared with traditional impact breaking methods, this static squeezing process better protects the integrity of the remaining pile body, preventing secondary damage and maintaining load-bearing performance.
Core Advantages of the Square Pile Breaker
1. Significant Efficiency Improvement
Traditional manual pile breaking requires multiple workers and typically completes only one pile per hour.
With hydraulic operation, square pile breakers can reduce removal time to less than 7 minutes per pile. Optimized models may achieve speeds of approximately 2 minutes per pile.
In one residential project phase involving 955 precast square piles (600 mm × 600 mm), the adoption of square pile breakers significantly shortened the overall construction schedule.
2. Strong Adaptability
The modular design allows convenient assembly and disassembly.

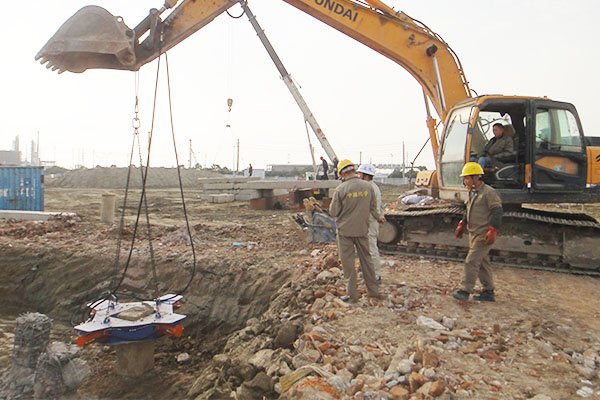

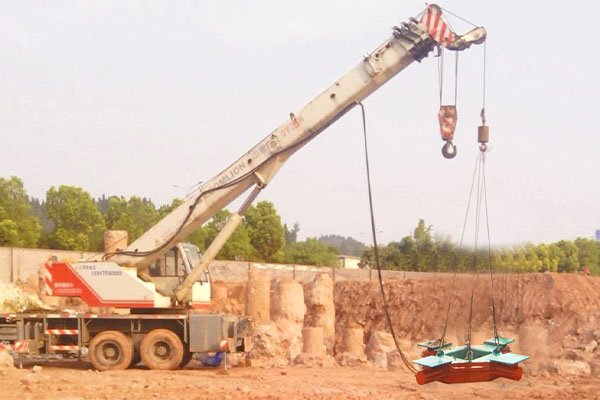

The equipment can be connected to excavators, cranes, and telescopic arms without major hydraulic system modification.
It adapts to:
- Confined or low-clearance construction areas
- Complex geological conditions
- Large-scale foundation works
Applications include:
- High-speed railway bridge foundations
- Civil and commercial building projects
- Port construction
- Geological disaster prevention projects
In square anti-slide pile construction, mechanical pile breaking has replaced traditional manual excavation methods, improving safety and efficiency.
3. Cost Efficiency
From a long-term operational perspective, square pile breakers offer clear economic advantages.
- Reduced labor demand
- Lower consumable replacement frequency
- Extended chisel service life
- Reduced maintenance costs
For example, electric-driven square pile breakers may reduce daily operating costs to approximately one-fifth of traditional mechanical equipment.
Additionally, removed concrete debris can be recycled for site hardening or temporary slope protection, supporting material reuse.
Engineering Applications and Industry Value
As infrastructure standards continue to rise, square pile breakers are gradually replacing manual breaking methods and becoming mainstream equipment.
In bridge construction, they ensure flat and accurate pile head cutting.
In high-rise building projects, they enable rapid removal of large pile groups.
In disaster prevention works, they improve efficiency and reduce injury risks in anti-slide pile operations.
Technological development continues toward hydraulic optimization, electric drive systems, standardization, and intelligent control integration.
Manufacturers investing in independent research and intellectual property development are promoting the modernization of square pile breaker equipment.
Square pile breakers, with strong adaptability and high operational efficiency, have transformed square pile head removal methods.
They address the key limitations of traditional construction techniques while improving efficiency, ensuring quality, and reducing total project costs.
As infrastructure development continues, square pile breakers will play an increasingly important role in complex engineering environments and support the mechanized advancement of foundation construction.
