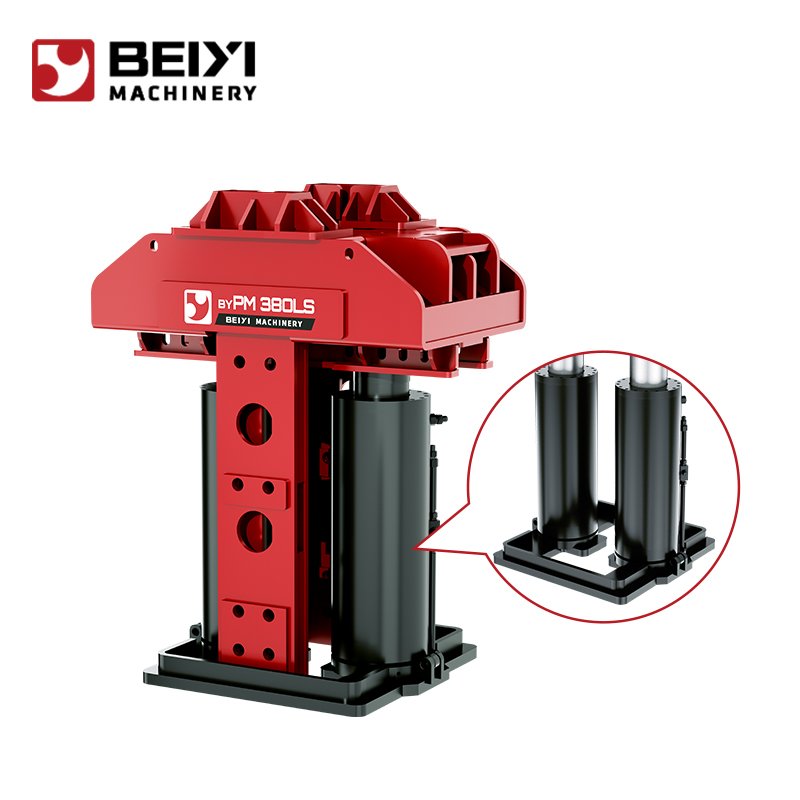

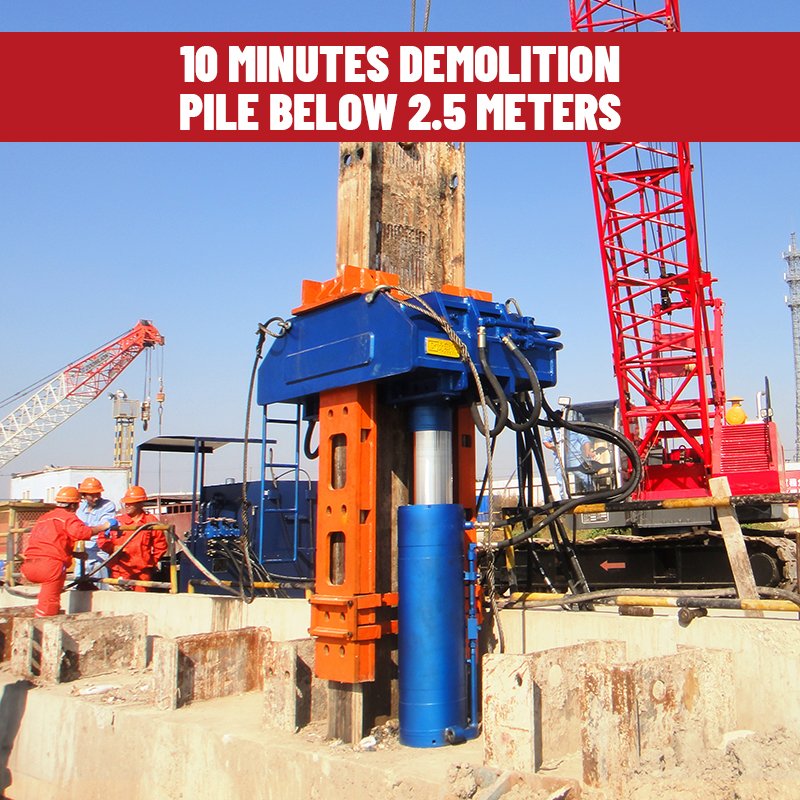

H-Beam Pile Extractor
The H-Beam Pile Extractor is designed for efficient removal of steel H-beam piles. The machine clamps the pile head securely using a high-strength hydraulic clamping system. The hydraulic cylinder then drives the upper clamping unit upward, enabling the pile to be extracted section by section.
It performs reliably in clay and sandy soil conditions, including layers containing small amounts of gravel.
-
Patented design for fast and stable operation
-
Capable of extracting steel piles up to 40 meters in depth
-
Extraction speed up to 1 m/min
-
Dual-cylinder system: large cylinder for high pulling force, small cylinder for faster lifting
-
Maximum pulling force up to 700 tons
-
One-piece integrated structure for overall lifting and enhanced stability
Category:
Tags:
Download File
Product Description
Product Features
- Featuring an innovative and patented structural design, the machine offers flexible movement and high working efficiency.
- With a maximum pulling force of 700 tons, it delivers powerful extraction performance and is capable of extracting H-beam piles up to 32 meters in length.

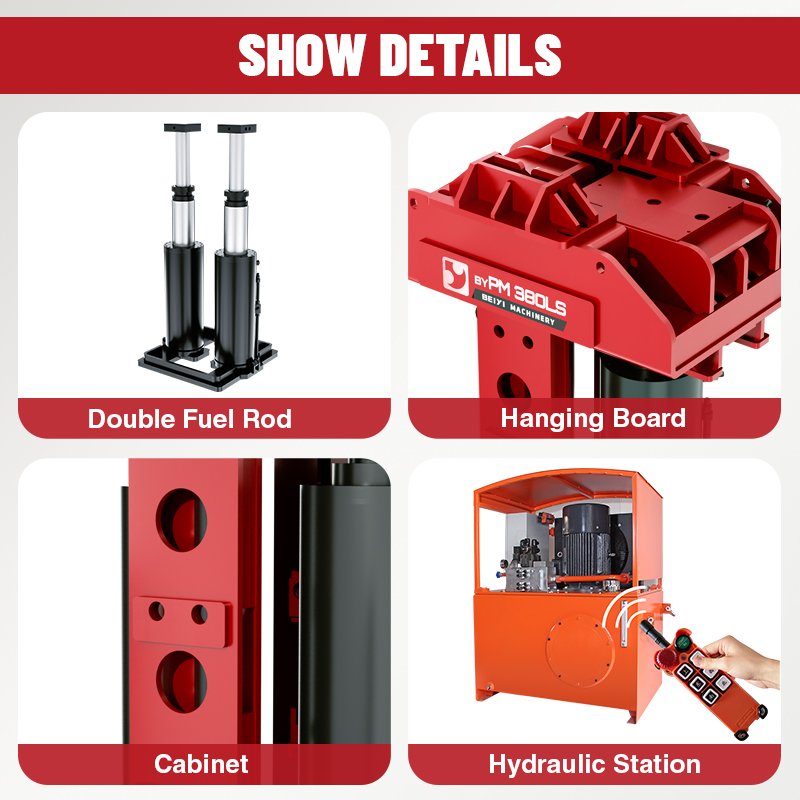

- Equipped with a dual-stage hydraulic cylinder system, where the large cylinder provides the main pulling force and the smaller cylinder accelerates the extraction stroke, improving overall efficiency.
- Fitted with a remote control operating system, enabling 360° all-round visibility for safe and flexible operation.
- Replaceable lifting plates allow the machine to accommodate H-beam piles with widths ranging from 300 mm to 800 mm.
- Powered by an electric hydraulic power pack, featuring an environmentally friendly design and simple operation.
- The hydraulic cylinder can move laterally, making it easy to work in densely spaced pile conditions and effectively avoiding interference between adjacent piles.
Working Principle

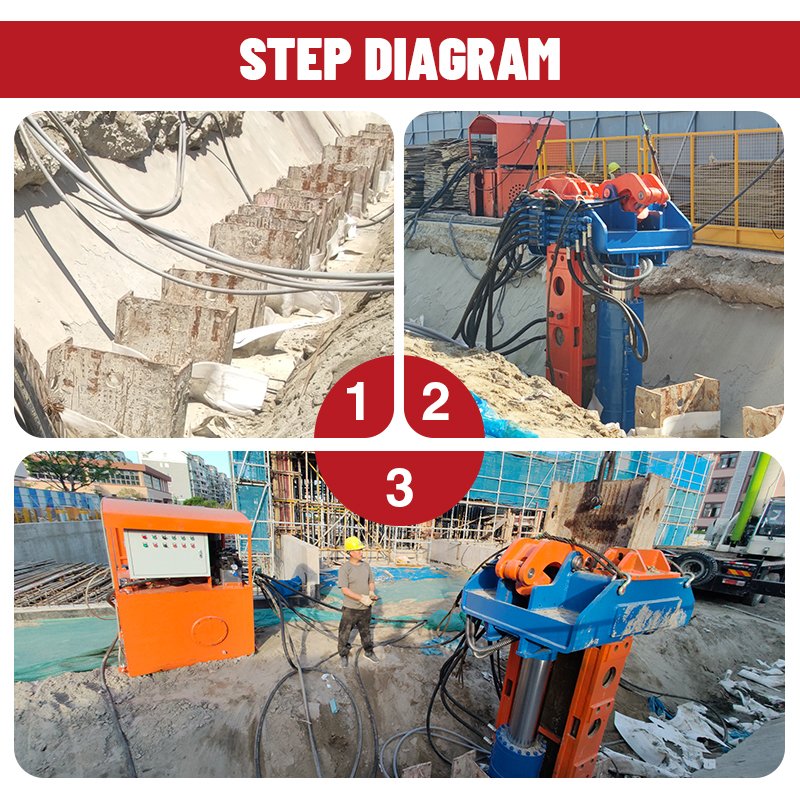

The H-beam pile extractor grips the pile head using a hydraulic clamping device. Hydraulic cylinders apply an upward force to the clamp, lifting the pile step by step and extracting it from the ground.

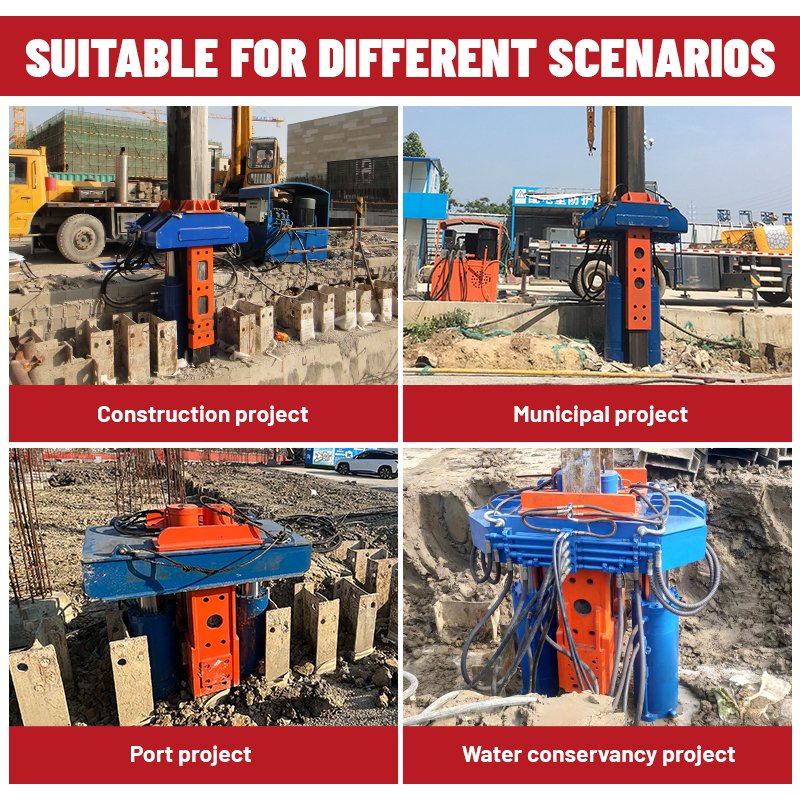

The machine is suitable for extracting H-beam and steel piles in clay, sandy soil, or soil containing a small amount of gravel, providing a stable and controlled pile removal process.

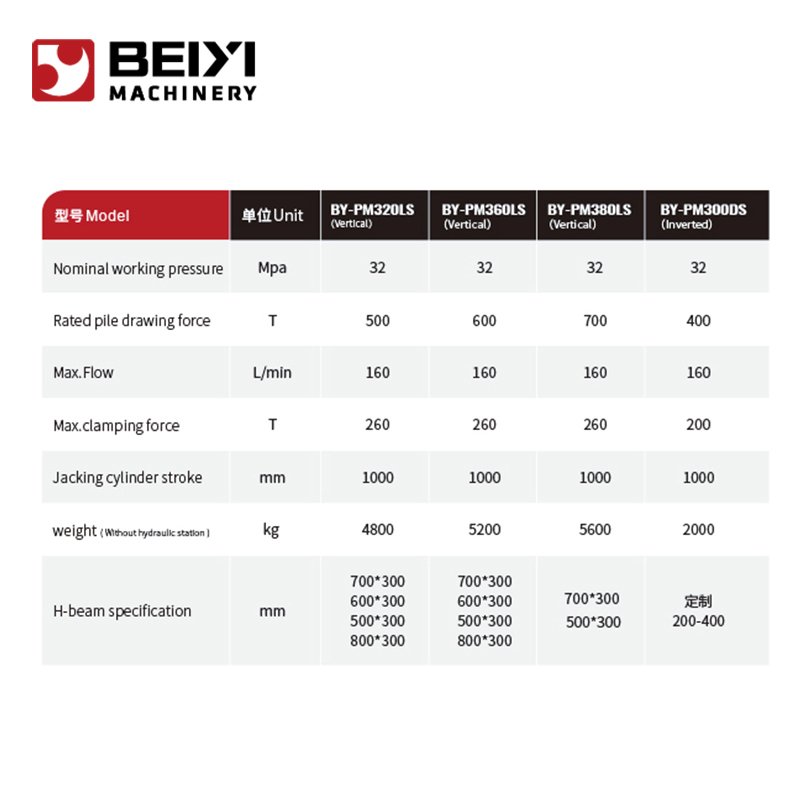

Product Parameters
| Model | BY-PM320LS (Vertical Type) | BY-PM360LS (Vertical Type) | BY-PM380LS (Vertical Type) |
| Nominal Working Pressure | 32 MPa | 32 MPa | 32 MPa |
| Rated Pile Pulling Force | 500 t | 600 t | 700 t |
| Maximum Hydraulic Flow | 160 L/min | 160 L/min | 160 L/min |
| Maximum Clamping Force | 260 t | 260 t | 260 t |
| Applicable H-Beam Sizes | 500×300 mm600×300 mm700×300 mm800×300 mm | 500×300 mm600×300 mm700×300 mm800×300 mm | 500×300 mm700×300 mm |

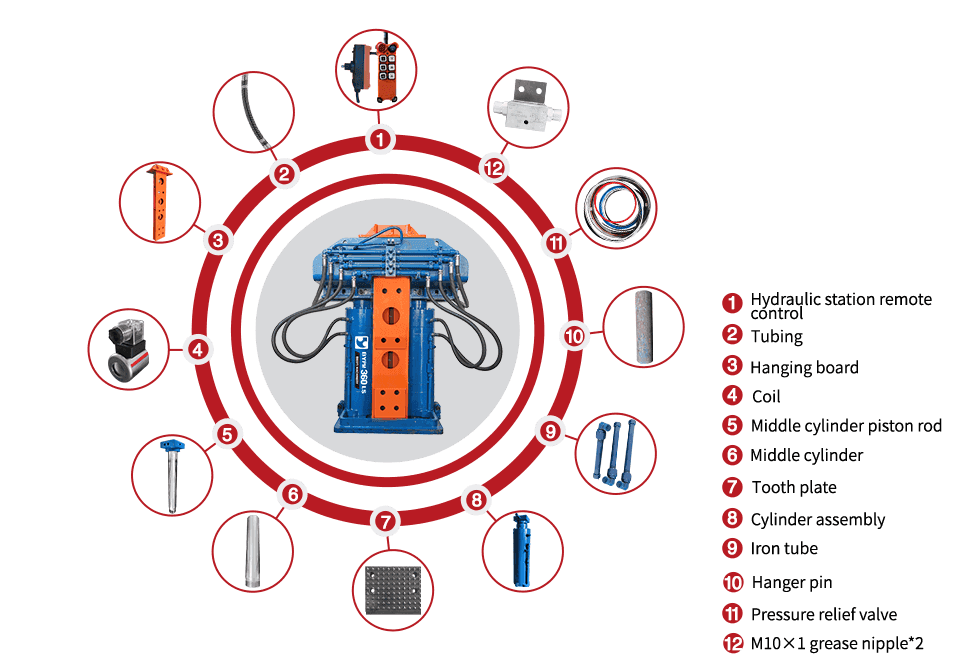

Comprehensive Accessory Options
Designed to meet diverse project requirements.
