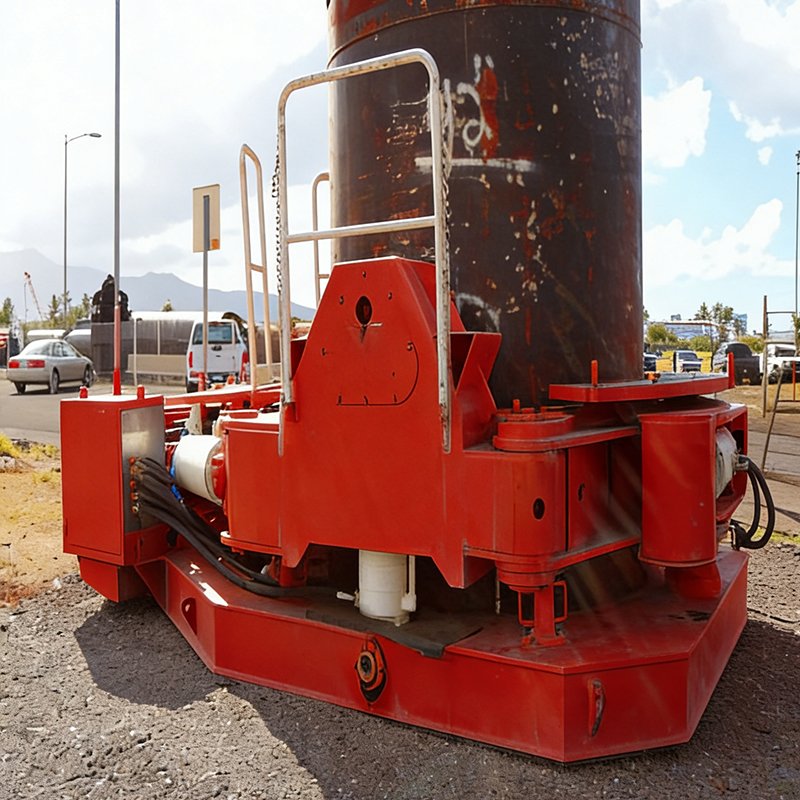

Casing Oscillator
Casing Oscillator
The Casing Oscillator is specialized equipment designed for full casing construction in unstable and complex ground conditions.
It drives the casing to perform clockwise and counterclockwise oscillating rotation through a powerful clamping mechanism, effectively reducing resistance during casing installation and extraction.
Hydraulic cylinders control the downward and upward movement of the casing, ensuring stable, safe, and efficient construction operations.
-
Designed for unstable and complex ground conditions
-
Clockwise and counterclockwise oscillation reduces casing resistance
-
Hydraulic-driven casing installation and extraction for stable operation
-
Capable of handling large-diameter casings up to 3300 mm
-
Supports full casing drilling in combination with grabs or auger tools
-
Ideal for metro foundations, deep excavation support, secant piles, and pile extraction
-
Reliable in ground conditions where slurry support is ineffective, including soft soil, sand and gravel, cobbles, silt, quicksand, fractured strata, karst formations, backfill soil, and riverbeds
Category:
Tags:
Product Description
Product Features
The casing oscillator is a specialized machine designed for full casing drilling systems.
The equipment drives the casing to perform clockwise and counterclockwise oscillating rotation through a clamping mechanism, effectively reducing resistance during casing installation and extraction.
Hydraulic cylinders are used to control the lowering and lifting of the casing, ensuring stable and safe operation.
Applications
The casing oscillator is primarily used in unstable soil conditions, such as soft soil, gravel layers, and gravelly soils. The equipment is capable of clamping large-diameter casings up to 3300 mm, allowing the casing to rotate in both directions or move vertically along the borehole axis.
When used in combination with grabs or auger drilling tools, it enables reliable casing-follow drilling operations.
Typical applications include:
- Urban metro foundation construction
- Deep foundation pit support and secant pile construction
- Urban renewal and reconstruction projects
- Pile extraction and obstruction removal
- Railway, port, road, and bridge engineering
- Bored pile construction for high-rise buildings and hydraulic engineering projects
Applicable Ground Conditions
Suitable for cobble layers, silt, quicksand, fine sand, fractured rock, karst formations, backfilled soil, marshland, as well as river and lake environments where conventional slurry wall support methods are ineffective.
| Model | BY200 |
| Max. Casing Diameter | 2000 mm |
| Oscillation Torque | 4110 kN·m |
| Oscillation Angle | 21° |
| Lifting Force | 2650 kN |
| Hydraulic Stroke | 600 mm |
| Clamping Force | 2150 kN |
| Operating Weight | 27 t |

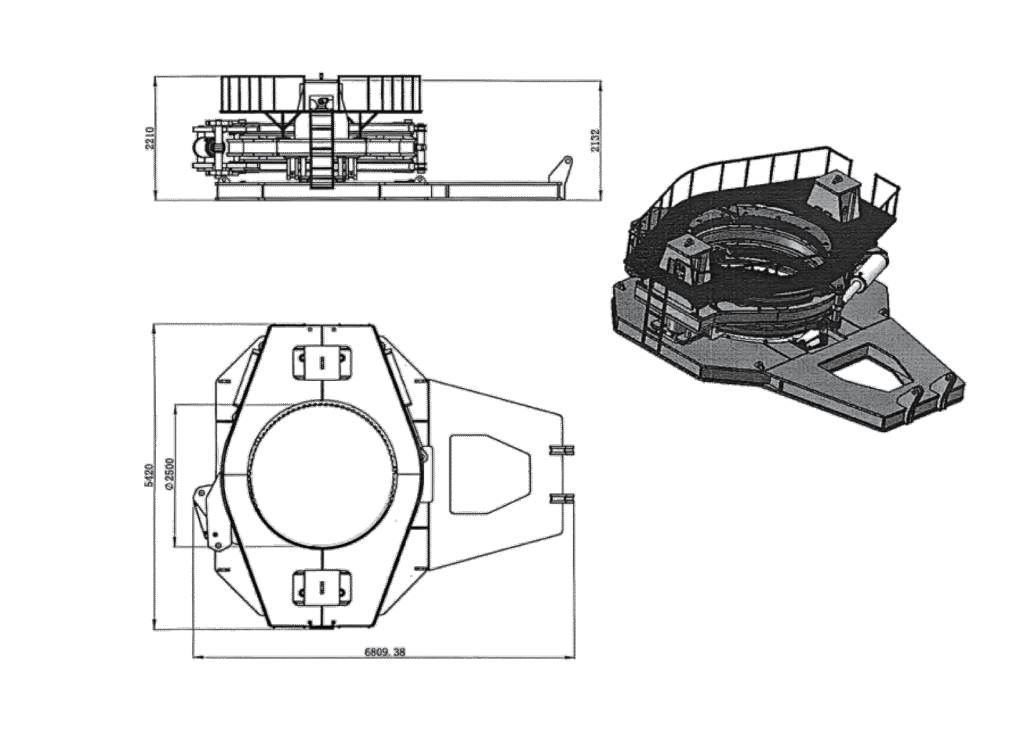

| Overall Dimensions (L×W×H) | 6809 × 5420 × 2210 mm |
Our products are continuously being upgraded. Due to technical improvements and modifications, specifications are subject to change without prior notice.
